Tripp Lite N080-SMB2-WH Double-Gang Surface-Mount Back Box, White, TAA
- Brand: Eaton
- Category:
- SKU: N080-SMB2-WH
- EAN: 0037332236272
Double-Gang Surface-Mount Back Box, White, TAA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Double-Gang Surface-Mount |
N080-SMB2-WH |
Related Products
- Wall Plates & Switch Covers
- Keystone Modules
- Electrical Junction Boxes
- Patch Panel Accessories
- Socket-Outlets
-
Category: Wall Plates & Switch Covers -
Category: Wall Plates & Switch Covers -
Category: Wall Plates & Switch Covers -
Category: Wall Plates & Switch Covers
-
Category: Electrical Junction Boxes
-
Category: Patch Panel Accessories
Description

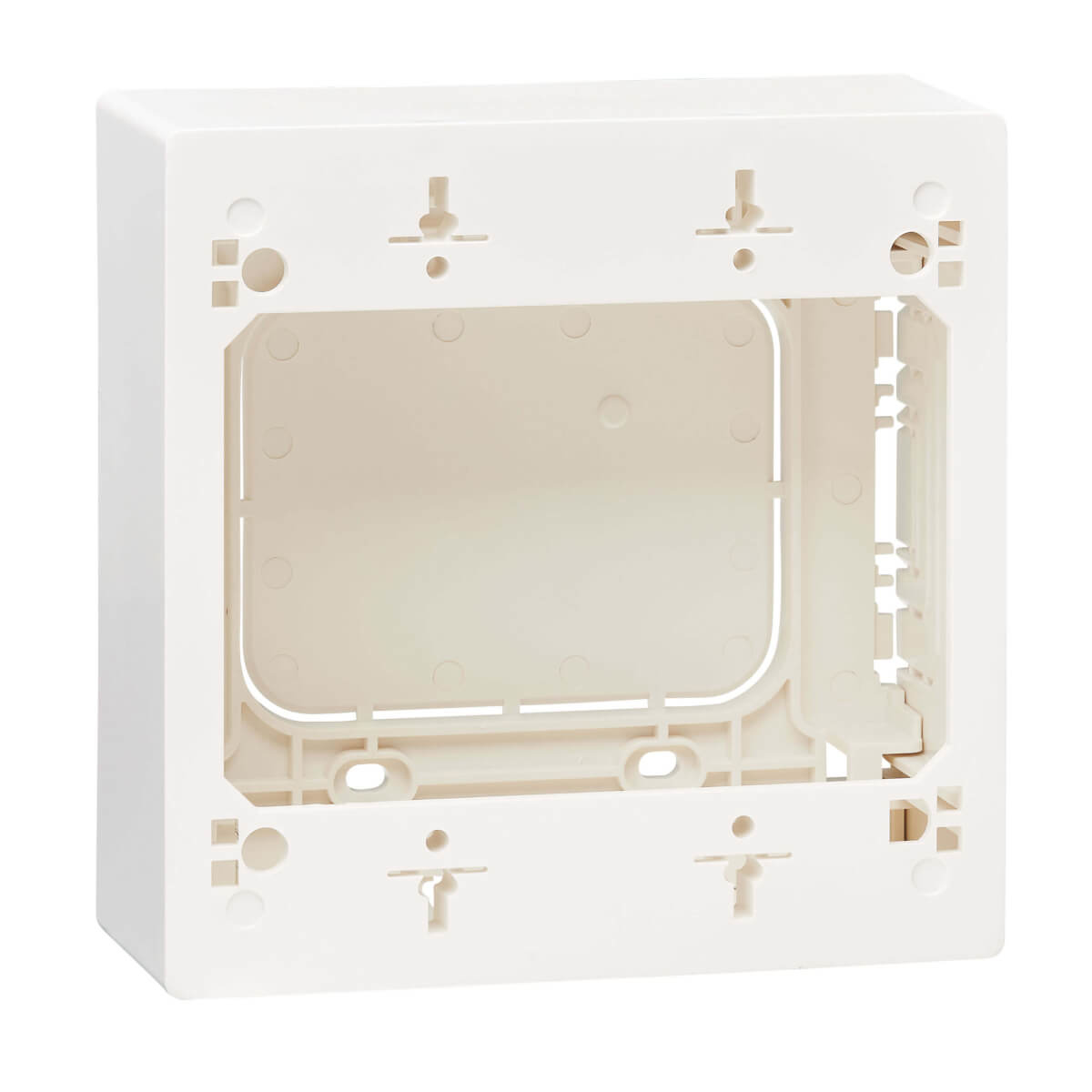

Double-Gang Surface-Mount Junction Box for Premise Applications
The N080-SMB2-WH is ideal for mounting a double-gang wall plate to complete multiple audio/video, voice and Ethernet in-wall connections using any type of keystone jack, including Cat5e/6/6a, USB, HDMI, DisplayPort and RCA. Designed to work with mid-sized and standard double-gang wall plates, this back box is two inches deep.
Raceway Cutouts on Each Side for Easy Access

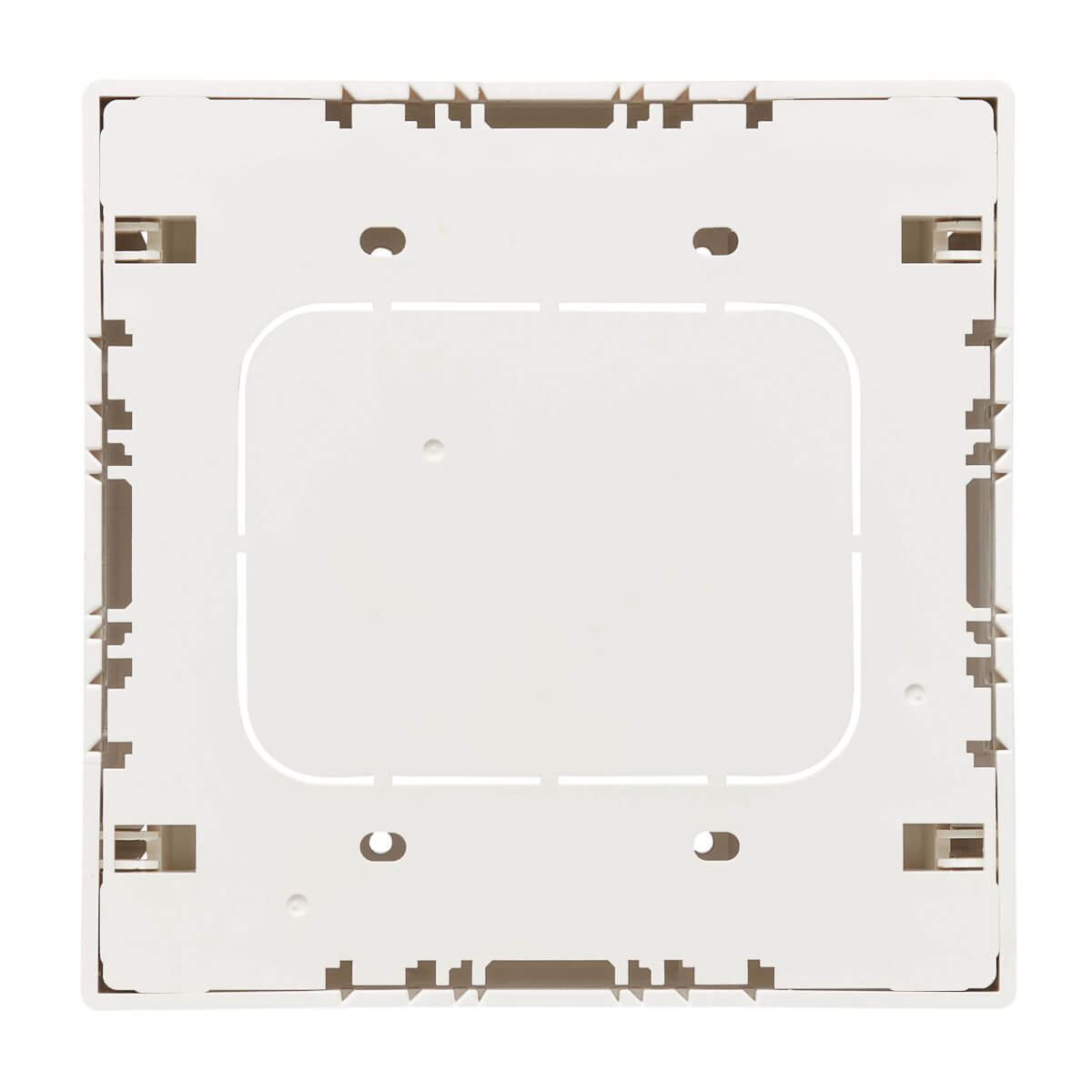

The N080-SMB2-WH features raceway cutouts in three different sizes (1 inch, 1.25 inches and 1.75 inches in diameter) on each side, as well as a rectangular knockout on the back. The cover snaps securely to the base with no screws required.
Highly Adaptable to Match Your Specific Requirements

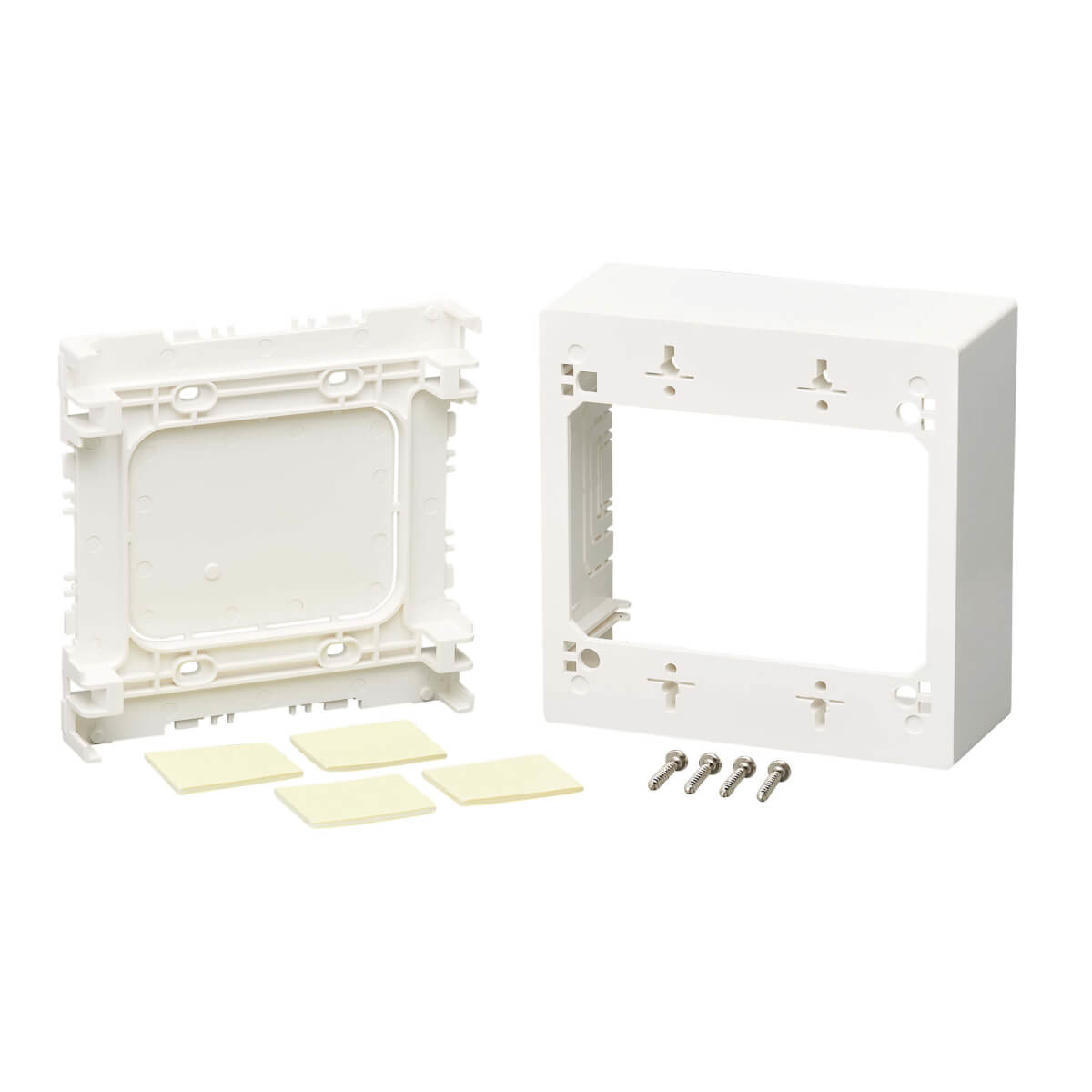

Made from robust ABS thermoplastic, the N080-SMB2-WH is colored white to blend elegantly into any home or office decor for a sleek, professional installation. Four mounting screws are included.
TAA-Compliant for GSA Schedule Purchases
The N080-SMB2-WH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
The N080-SMB2-WH is ideal for mounting a double-gang wall plate to complete multiple audio/video, voice and Ethernet in-wall connections using any type of keystone jack, including Cat5e/6/6a, USB, HDMI, DisplayPort and RCA. Designed to work with mid-sized and standard double-gang wall plates, this back box is two inches deep.
Raceway Cutouts on Each Side for Easy Access
The N080-SMB2-WH features raceway cutouts in three different sizes (1 inch, 1.25 inches and 1.75 inches in diameter) on each side, as well as a rectangular knockout on the back. The cover snaps securely to the base with no screws required.
Highly Adaptable to Match Your Specific Requirements
Made from robust ABS thermoplastic, the N080-SMB2-WH is colored white to blend elegantly into any home or office decor for a sleek, professional installation. Four mounting screws are included.
TAA-Compliant for GSA Schedule Purchases
The N080-SMB2-WH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Technical details | |
|---|---|
| Socket type | Keystone module |
| Storage temperature (T-T) | -40 - 68 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Product colour | White |
| Certification | TAA |
| Master (outer) case GTIN (EAN/UPC) | 10037332236279 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 129 mm |
| Height | 128.5 mm |
| Depth | 54.1 mm |
| Weight | 180 g |
| Width (imperial) | 8.38 cm (3.3") |
| Height (imperial) | 12.9 cm (5.1") |
| Depth (imperial) | 5.33 cm (2.1") |
| Packaging data | |
| Package width | 254 mm |
| Package depth | 12.7 mm |
| Package height | 304.8 mm |
| Package weight | 180 g |
| Packaging content | |
| Number of screws | 4 |
| Logistics data | |
| Master (outer) case gross weight | 1.8 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 385.1 mm |
| Master (outer) case length | 249.9 mm |
| Master (outer) case height | 230.1 mm |
| Country of origin | Taiwan |
