LevelOne AC750 Dual Band PoE Wireless Access Point, In-Wall Mount, Controller Managed
- Brand: LevelOne
- Category:
- SKU: WAP-8221
- EAN: 4015867206539
802.11ac, 1 x WAN, 1 x LAN, 2.4/5.8 GHz, PoE, QoS, 110 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Ac750 Dual Band Poe Wireless |
WAP-8221 |
Related Products
-
Category: Wireless Access Points -
Category: Wireless Access Points -
Category: Wireless Access Points -
Category: Wireless Access Points
Description

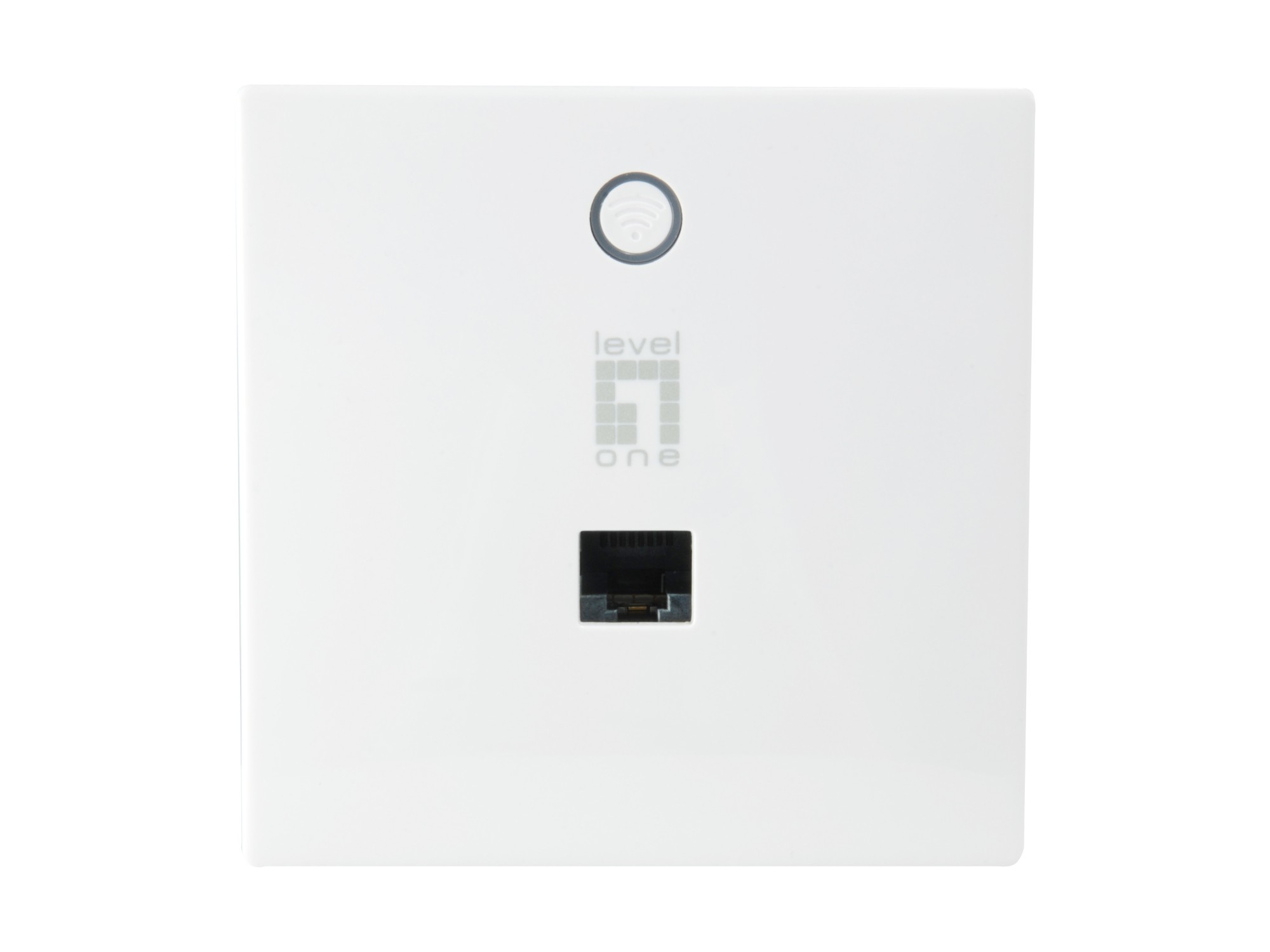

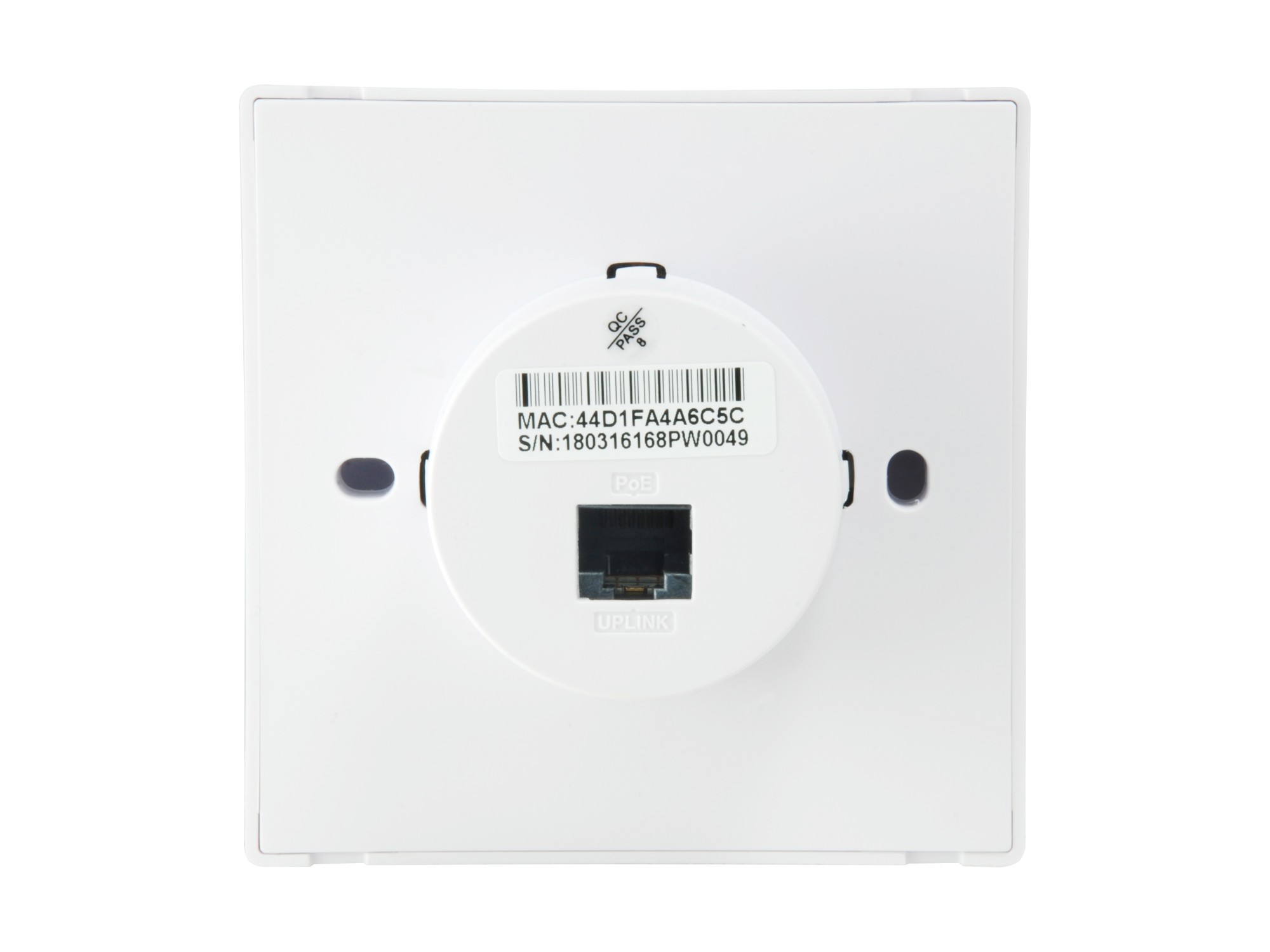

LevelOne new access point, the WAP-8221, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point - just like a power outlet - is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 750 Mbps. The WAP-8221 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2000 / WAC-2003 WLAN controller. There is an RJ45 socket for the network cable on the back and front. LevelOne WAP-8221 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Country of origin | China |
| Operating modes | Access Point (AP),Gateway,Repeater,WISP |
| Frequency band | 2.4 ~ 2.483, 5.180 ~ 5.825 GHz |
| Number of users | 128 user(s) |
| Wi-Fi data rate (max) | 433 Mbit/s |
| Web-based management | Yes |
| Switch type | Managed |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Firmware upgradeable | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | CE |
| Maximum data transfer rate | 750 Mbit/s |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Operating modes | Access Point (AP),Gateway,Repeater,WISP |
| Frequency band | 2.4 ~ 2.483, 5.180 ~ 5.825 GHz |
| Number of users | 128 user(s) |
| Wi-Fi data rate (max) | 433 Mbit/s |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 750 Mbit/s |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2 |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Management features | |
| Web-based management | Yes |
| Switch type | Managed |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Country of origin | China |
| Placement | Wall |
| Product colour | White |
| Internal | No |
| Reset button | Yes |
| LED indicators | Power, Status |
| Certification | CE |
| Antenna | |
| Antennas quantity | 3 |
| Antenna gain level (max) | 2 dBi |
| Antenna features | Integrated antenna |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 31 mm |
| Weight | 104 g |
| Height | 86 mm |
| Package width | 110 mm |
| Package depth | 65 mm |
| Package height | 120 mm |
| Package weight | 202 g |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| CD quick installation guide | Yes |
| CD manual | Yes |
| Mounting kit | Yes |
| Package width | 110 mm |
| Package depth | 65 mm |
| Package height | 120 mm |
| Package weight | 202 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick start guide | Yes |
| Package type | Box |
| CD quick installation guide | Yes |
| CD manual | Yes |
| Mounting kit | Yes |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 580 mm |
| Master (outer) case height | 515 mm |
| Master (outer) case gross weight | 21.3 kg |
| Products per master (outer) case | 100 pc(s) |
| Harmonized System (HS) code | 85176990 |
