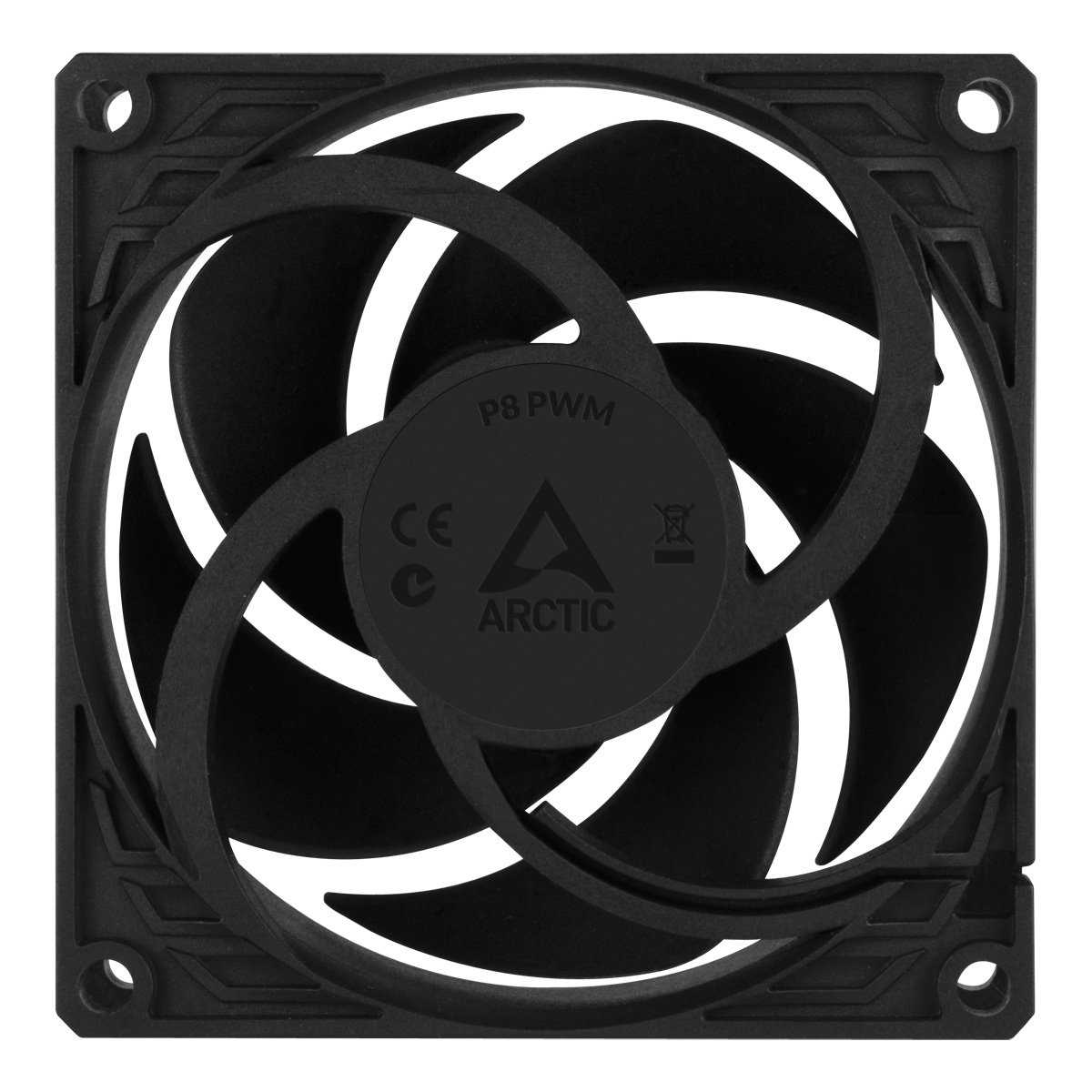

ARCTIC P8 PWM - Pressure-optimised 80 mm Fan with PWM
- Brand: ARCTIC
- Category:
- SKU: ACFAN00149A
- EAN: 0872767009912 4895213702027
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
P8 Pwm - Pressure-Optimised |
ACFAN00149A |
Related Products
-
Category: Computer Cooling Systems -
Category: Computer Cooling Systems -
Category: Computer Cooling Systems -
Category: Computer Cooling Systems -
Category: Computer Cooling Systems
-
Category: Computer Cooling Systems -
Category: Computer Cooling Systems -
Category: Computer Cooling Systems
-
Category: Computer Cooling Systems
-
Category: Computer Cooling Systems
-
Category: Computer Cooling Systems
Reasons To Buy

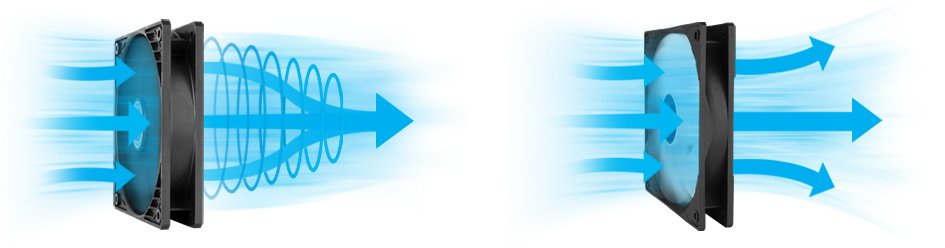

Optimised for Static Pressure
During the development of the new P8 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM is particularly suitable for use on heatsinks and radiators.

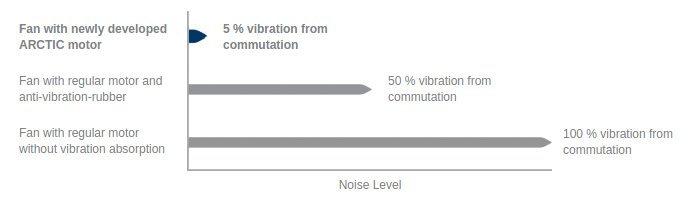

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.<br>Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

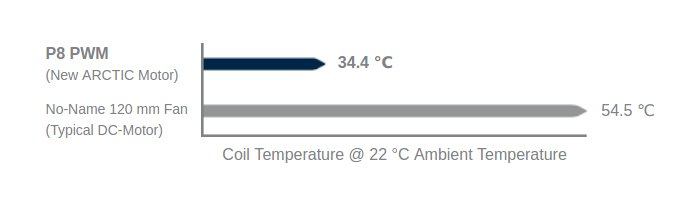

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.<br>The new ARCTIC motor has a four times longer service life through its low coil temperature.<br>Consequently, we have extended the warranty to 10 years.

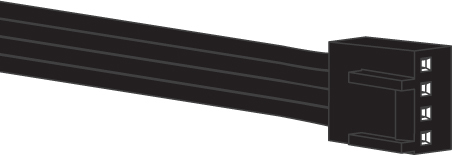

200 to 1800 RPM regulated via PWM
Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.<br>In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

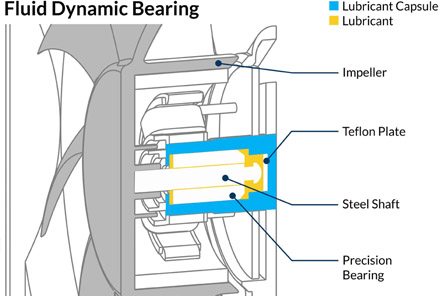

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

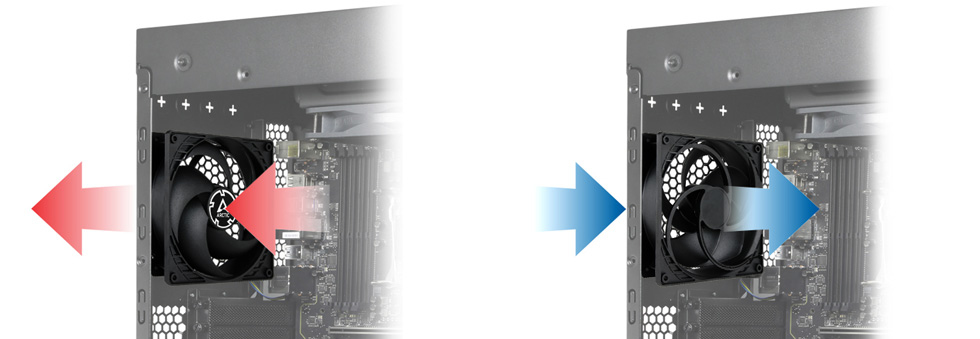

Two Way Installation
Push warm air out of the case<br>Pull cool air into your case
Description
As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Pulse-width modulation (PWM) support | Yes |
| Fan connector | 4-pin |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Airflow | 39.76 m³/h |
| Number of fans | 1 fan(s) |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 3000 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Number of fan blades | 5 |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Number of fan blades | 5 |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Weight & dimensions | |
| Width | 80 mm |
| Package width | 82.5 mm |
| Package depth | 26 mm |
| Package weight | 99 g |
| Depth | 25 mm |
| Package height | 82.5 mm |
| Height | 80 mm |
| Weight | 81 g |
| Cable length | 0.4 m |
| Technical details | |
| Fan connector | 4-pin |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Other features | |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
