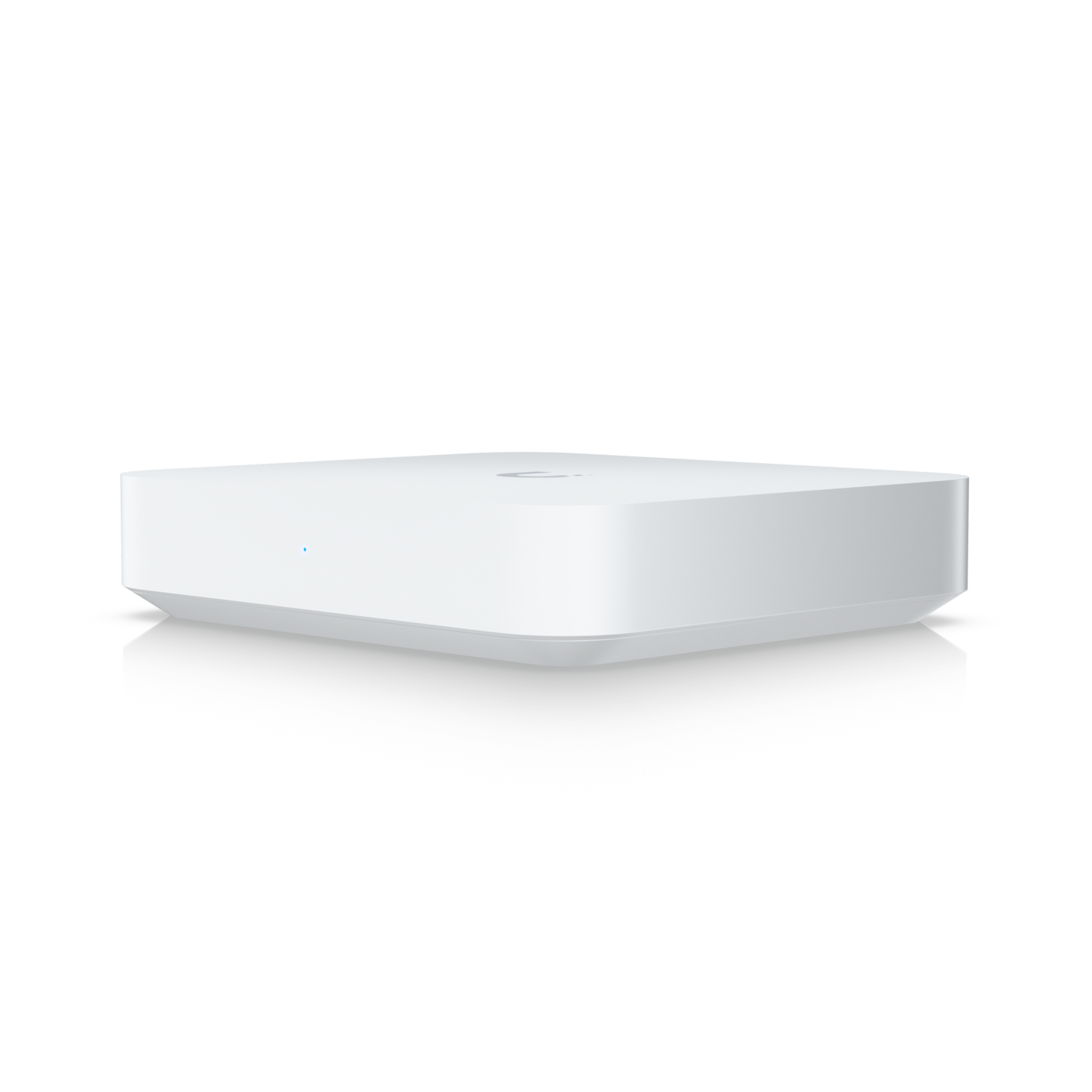

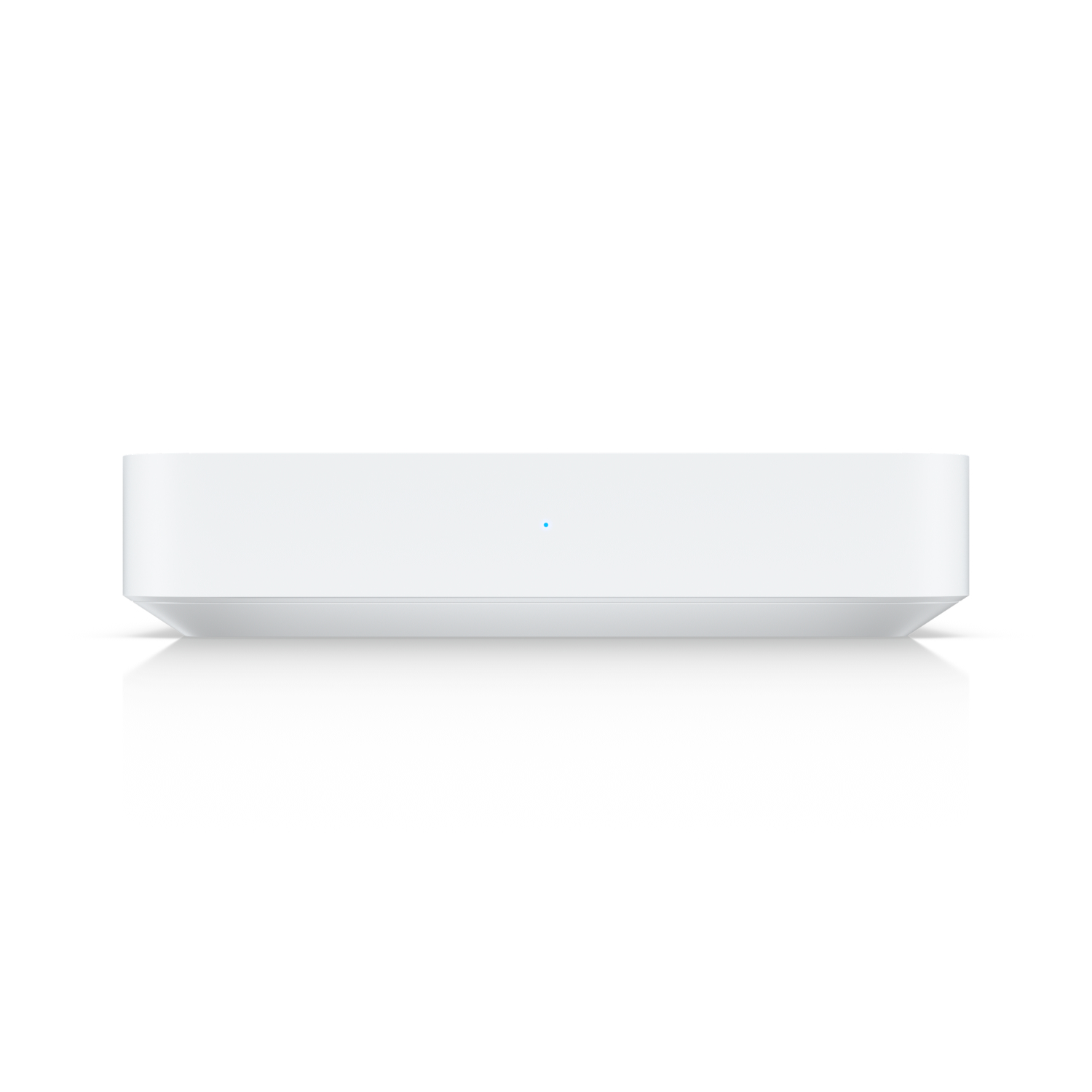

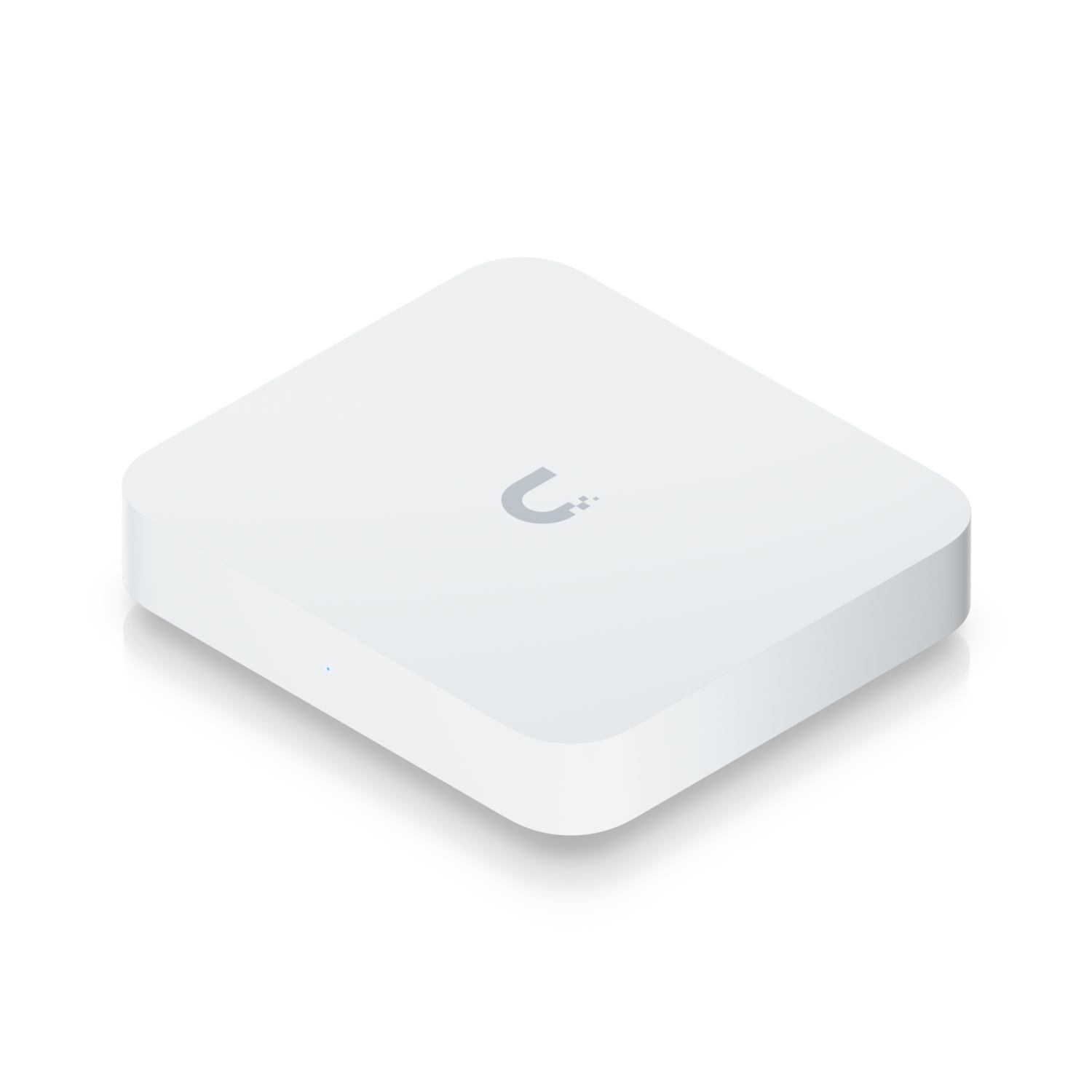

Ubiquiti Gateway Max gateway/controller 2500 Mbit/s
- Brand: Ubiquiti
- Category:
- SKU: UXG-MAX-UK
- EAN: 0810084695463
Managed, 4x 2.5 GbE LAN, 1x 2.5 GbE WAN, Quad-core ARM Cortex-A53 at 1.5 GHz, 2 GB DDR4, IK04, Polycarbonate, white
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Gateway Max gateway/controller 2500 Mbit/s |
UXG-MAX-UK |
Description
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
Specifications
| Design | |
|---|---|
| Product colour | White |
| Enclosure material | Polycarbonate (PC) |
| Performance | |
| Processor model | Cortex-A53 |
| Processor manufacturer | ARM |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Ethernet LAN data rates | 2500 Mbit/s |
| Bluetooth | Yes |
| Security | |
| VLAN support | Yes |
| Security algorithms | IPSec |
| Firewall security | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |

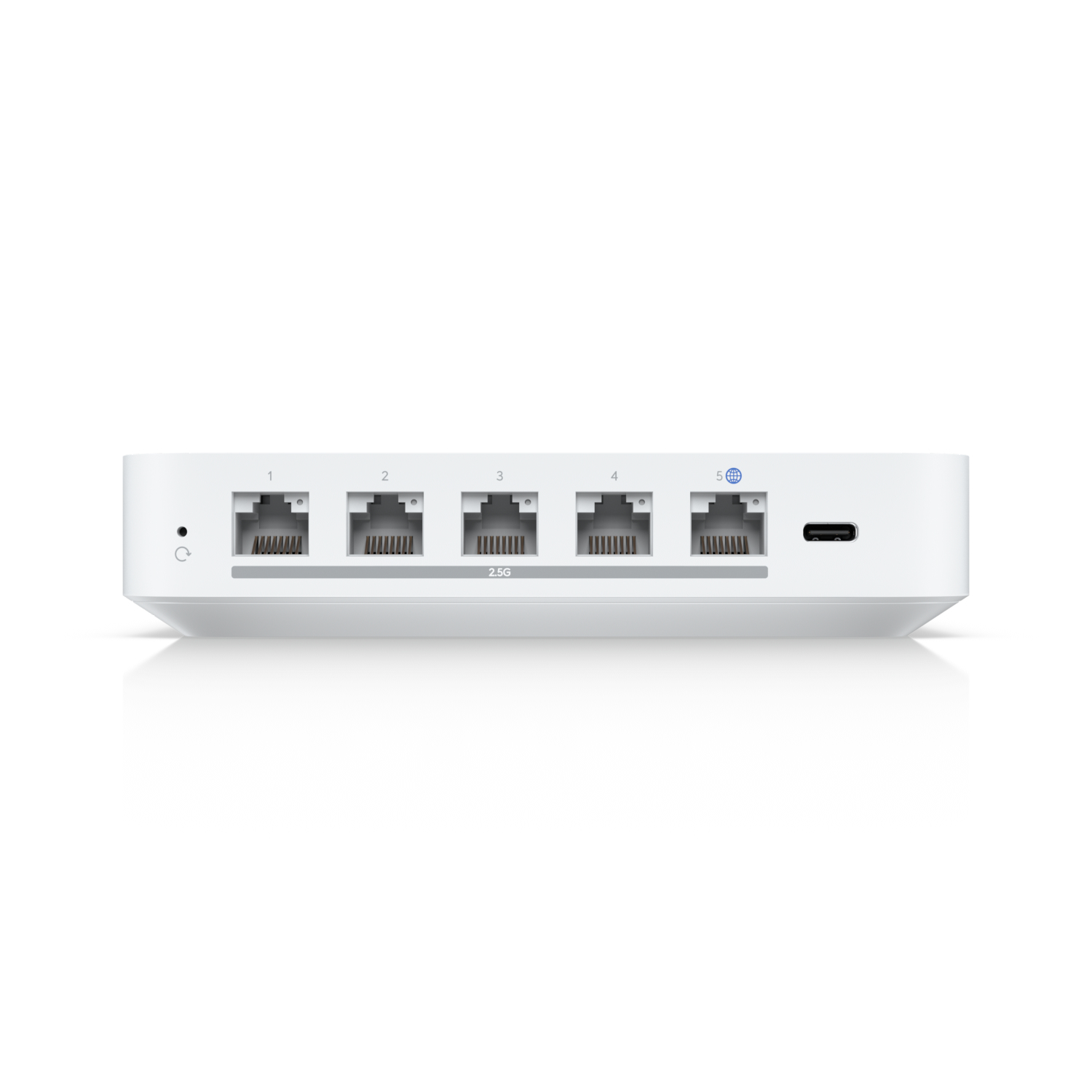

| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 9.6 W |
| Weight & dimensions | |
| Weight | 520 g |
| Width | 141.8 mm |
| Height | 30 mm |
| Depth | 127.6 mm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Activity, LAN, Link |
| Technical details | |
| Built-in processor | Yes |
| Plug and Play | Yes |
| Processor frequency | 1500 MHz |
| Number of processors installed | 1 |

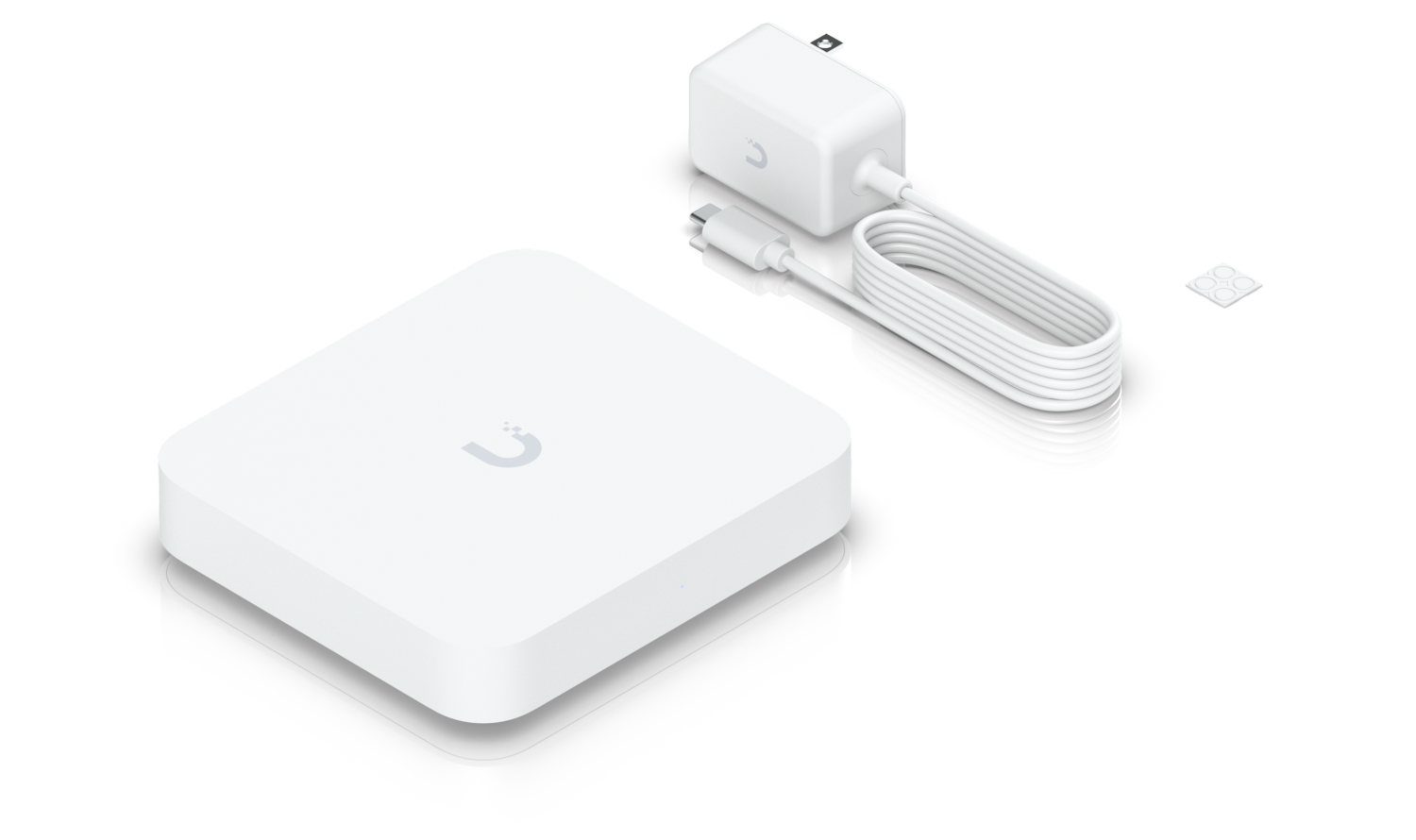

| AC adapter included | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 2000 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
