Tripp Lite P167-000 HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA
- Brand: Tripp Lite
- Category:
- SKU: P167-000
- EAN: 0763615943208 0521227096794 08 ...7096794 0887549141582 0151903594544 0012300167819 0887549126664 0168141355554 0999992240061 0971478481656 0797864265811 0720360983750 0887493507748 0182682312432 0373321437306 0163120450824 0115970772434 0638865668112 0999994052679 0601000691894 0100177522364 0778888394008 0887493465628 0666670098084 0734911317185 0037332143730 0617407471052 0163120695089 0803983010536more
HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA
Offer details
Related Products
Description
This HDMI Over Dual Cat5 Extender Wall Plate Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables.

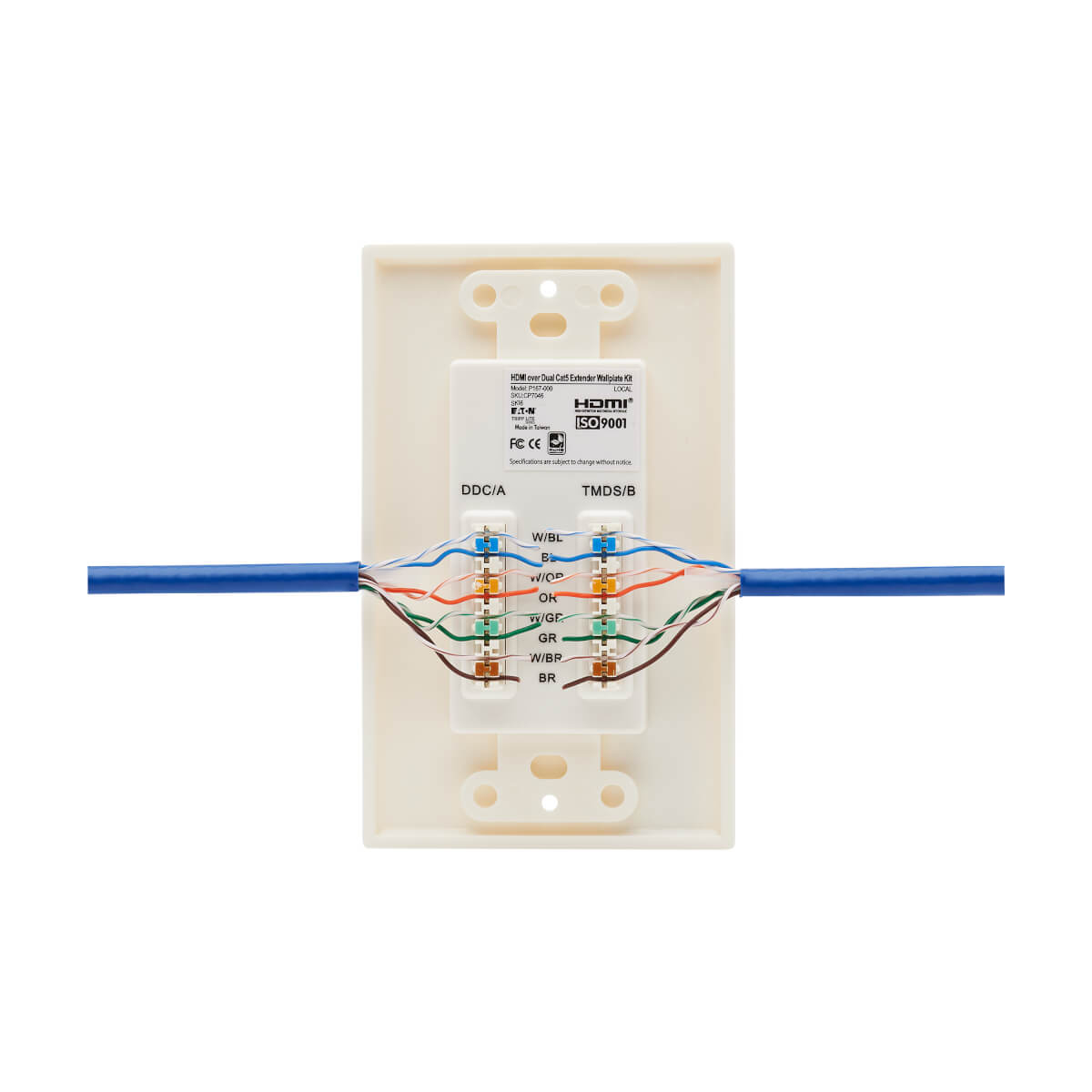

Simply run two Cat5/6 cables between the local transmitter and remote receiver wall plates, and plug in standard HDMI cables to the HDMI source and the display. The green LED on the remote receiver wall plate lets you know that power from the source and monitor. When functioning properly, only the green LED will be lit. If the red LED is illuminated, it means the remote receiver is not receiving a functional signal from the source.
The P167-000 comes with both local transmitter and remote receiver wall plates. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8 bits per channel) is supported. No external power is required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 150 ft. using 24 AWG Solid Wire Cat6* cabling (N222-Series, or N224-Series )
Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat5 cabling
Extends a 3D signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat6 cabling, or up to 50 ft. using 24 AWG Solid Wire Cat5 cabling
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
Supports 24-bit True Color (8-bits per channel)
No external power required
Use P568-Series HDMI cables from wallplates to devices
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Simply run two Cat5/6 cables between the local transmitter and remote receiver wall plates, and plug in standard HDMI cables to the HDMI source and the display. The green LED on the remote receiver wall plate lets you know that power from the source and monitor. When functioning properly, only the green LED will be lit. If the red LED is illuminated, it means the remote receiver is not receiving a functional signal from the source.
The P167-000 comes with both local transmitter and remote receiver wall plates. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8 bits per channel) is supported. No external power is required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 150 ft. using 24 AWG Solid Wire Cat6* cabling (N222-Series, or N224-Series )
Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat5 cabling
Extends a 3D signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat6 cabling, or up to 50 ft. using 24 AWG Solid Wire Cat5 cabling
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
Supports 24-bit True Color (8-bits per channel)
No external power required
Use P568-Series HDMI cables from wallplates to devices
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Performance | |
---|---|
Socket type | HDMI |
Technical details | |
Socket type | HDMI |
Product colour | White |
Master (outer) case GTIN (EAN/UPC) | 10037332143737 |
Features | |
Socket type | HDMI |
Design | |
Product colour | White |
Weight & dimensions | |
Package width | 200.7 mm |
Package depth | 142.2 mm |
Package height | 43.2 mm |
Package weight | 250 g |
Packaging data | |
Package width | 200.7 mm |
Package depth | 142.2 mm |
Package height | 43.2 mm |
Package weight | 250 g |
Logistics data | |
Master (outer) case width | 467.4 mm |
Master (outer) case length | 226.1 mm |
Master (outer) case height | 309.9 mm |
Master (outer) case gross weight | 5.5 kg |
Products per master (outer) case | 20 pc(s) |
Country of origin | Taiwan |
Harmonized System (HS) code | 85366990 |
