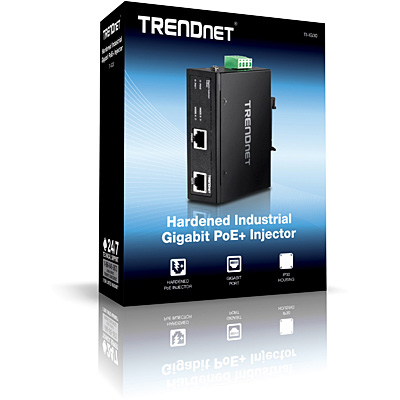

Trendnet TI-IG30 PoE adapter Gigabit Ethernet
- Brand: Trendnet
- Category:
- SKU: TI-IG30
- EAN: 0710931160437
Hardened Industrial Gigabit PoE+ Injector, 1 Port, IP30
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Hardened Industrial Gigabit |
TI-IG30 | |||
|
INDUSTRIAL GIGABIT POE+ INJECTOR |
73625 |
Description
TRENDnet’s TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+ device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full, Half |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Wall mountable | Yes |
| Rack mounting | No |
| Surge protection | Yes |
| Product colour | Black |
| Power protection features | Overload |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| LED indicators | Yes |
| Certification | FCC, CE |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 36 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power requirements | DC |
| Input voltage | 48 - 56 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 134 g |
| Dimensions (WxDxH) | 104 x 82 x 32 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
