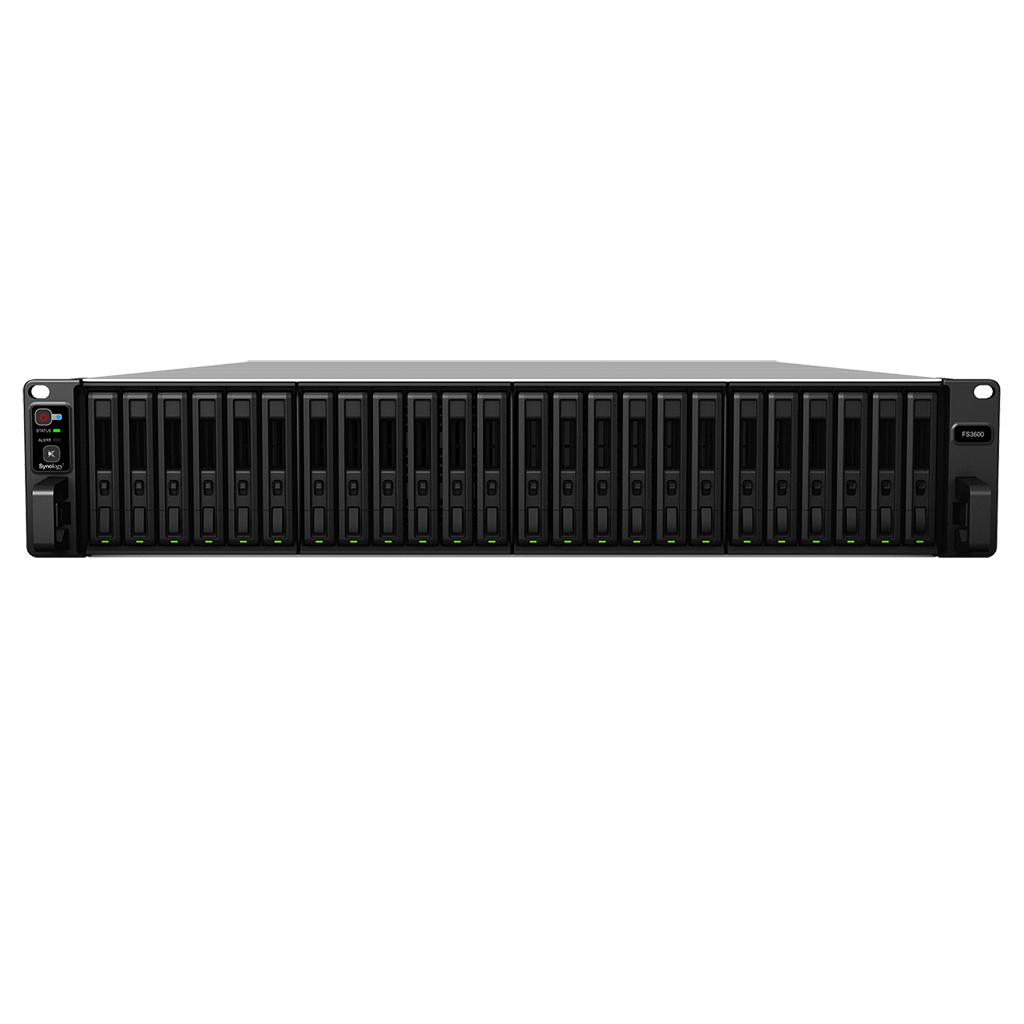

Synology FlashStation FS3600 NAS Rack (2U) Intel® Xeon® D D-1567 16 GB DDR4 12 TB SSD Black
- Brand: Synology
- Category:
- SKU: FS3600/12T/12X960G
- EAN:
2U, Intel Xeon D-1567, 16 GB DDR4 ECC RDIMM (128 GB Max), 24 Drive Bays 2.5" HDD/SSD
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
![]() |
K/FS3600 24 bay NAS 12TB 12x960G SSD View on InTouch |
7715212 |
Description
Fast and scalable all-flash NAS
FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
Specifications
Storage | |
---|---|
Total installed storage capacity | 12 TB |
Storage drives installed | Yes |
Installed storage drive type | SSD |
Number of storage drives installed | 12 |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 24 |
Storage drive capacity | 960 GB |
RAID support | Yes |
Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
RAID levels | 0, 6, 1, JBOD, 5, 10 |
Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI (SAS) |
Processor | |
Processor manufacturer | Intel |
Processor family | Intel® Xeon® D |
Processor model | D-1567 |
Processor frequency | 2.1 GHz |
Processor cores | 12 |
L3 cache | 18 MB |
Processor threads | 24 |
Processor cache | 18 MB |
Processor boost frequency | 2.7 GHz |
CPU configuration (max) | 1 |
Conflict-Free processor | Yes |
Memory | |
Internal memory type | DDR4 |
Internal memory | 16 GB |
Maximum RAM supported | 128 GB |
Memory slots | 4 |
Memory form factor | RDIMM |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,1000,100,10000 Mbit/s |
Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
iSCSI support | Yes |
Dynamic DNS (DDNS) | Yes |
Ports & interfaces | |
USB port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 6 |
Design | |
Product colour | Black |
Cooling type | Active |
Fan diameter | 8 cm |
Number of fans | 4 fan(s) |
Chassis type | Rack (2U) |
Performance | |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Yes |
Backup features | Cloud, USB drive |
Noise level | 57 dB |
Power | |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 500 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 1 |
Weight & dimensions | |
Width | 482 mm |
Depth | 724 mm |
Height | 88 mm |
Weight | 14.9 kg |
Processor special features | |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 1.00 |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel Secure Key Technology version | 1.00 |
Intel Enhanced Halt State | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Embedded options available | Yes |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 0 - 35 °C |
Operating relative humidity (H-H) | 5 - 95% |
Other features | |
Compliance certificates | RoHS |
