Thunderbolt 2 4K Docking Station for Laptops - Includes TB Cable
Transform your MacBook or laptop into a powerful 4K Ultra HD workstation or hot desk, through just a single Thunderbolt cable
Thunderbolt 2 4K Docking Station for Laptops
The TB2DOCK4KDHC Thunderbolt™ 2 Docking Station lets you connect up to 11 devices to your MacBook or laptop, so you can create a convenient, 4K Ultra HD workstation. Laptops often lack the connection ports you’ll need to maximize productivity, while many docking stations only offer basic port interfaces. With more connection ports than most docking stations, now you can vastly expand your connectivity while taking advantage of Thunderbolt 2 possibilities.

Unparalleled Thunderbolt 2 Performance
Thunderbolt 2 redefines efficiency with dependable, lightning-fast performance. With up to 20 Gbps data throughput, this convenient laptop docking station helps you avoid the nuisance of bandwidth bottlenecks when connecting multiple displays and peripherals to your MacBook. Thunderbolt 2 merges two 10 Gbps channels, delivering speeds that are twice as fast as Thunderbolt 1, and 4x faster than USB 3.0, for unparalleled device performance.
Unprecedented Display Technology
For the improved productivity of a dual monitor setup, the dock can connect to an HDMI and a Thunderbolt display, with 4K resolution on a single display. You can even connect multiple displays via Thunderbolt daisy chain, giving you two convenient possibilities for expanding your overall screen real estate!


Ultimate Workstation Convenience
This Thunderbolt dock lets you hurdle connection limitations by adding several essential ports to your MacBook Pro® or MacBook Air®, such as multiple storage peripherals through eSATA and USB 3.0 hub ports. Unlike other Thunderbolt docking stations, the TB2DOCK4KDHC offers an SPDIF port so you can take advantage of your laptop 5.1 digital optical audio capabilities (5.1 audio is not supported when used with Mac OS). Plus, for maximum connectivity you can daisy chain up to 6 Thunderbolt devices.
Description
The TB2DOCK4KDHC Thunderbolt 2 Docking Station lets you connect up to 11 devices to your MacBook or laptop, so you can create a convenient, 4K Ultra HD workstation. Laptops often lack the connection ports you’ll need to maximize productivity, while many docking stations only offer basic port interfaces. With more connection ports than most docking stations, now you can vastly expand your connectivity while taking advantage of Thunderbolt 2 possibilities.
Delivering unparalleled speed and unprecedented display technology, the TB2DOCK4KDHC offers the ultimate in workstation convenience and is one of the first Thunderbolt 2 docking stations available.
Unparalleled Thunderbolt 2 Performance
Thunderbolt 2 redefines efficiency with dependable, lightning-fast performance. With up to 20 Gbps data throughput, this convenient laptop docking station helps you avoid the nuisance of bandwidth bottlenecks when connecting multiple displays and peripherals to your MacBook. Thunderbolt 2 merges two 10 Gbps channels, delivering speeds that are twice as fast as Thunderbolt 1, and 4x faster than USB 3.0, for unparalleled device performance.
With virtually no throughput restrictions, this versatile docking station gives you essential connection ports as well as interfaces other Thunderbolt 2 docks don’t offer, such as USB 3.0 fast-charge, eSATA and SPDIF 5.1 digital optical audio ports. The TB2DOCK4KDHC lets you use your peripherals at higher speeds, saving you time so you can get your work done faster.
Unprecedented Display Technology
Discover 4K Ultra HD for an unprecedented visual experience! The dock delivers brilliant text and image quality at 4K resolution (3840 x 2160p) to your HDMI, DisplayPort, or Thunderbolt monitor (4K resolution at 60Hz is supported when connected to a single Thunderbolt display). Plus, you’re set for the future popularity of 4K sources and displays.

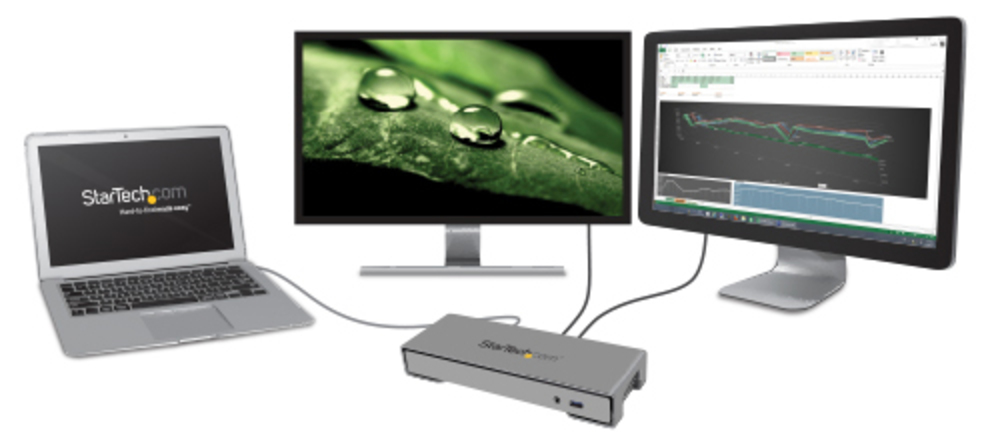

For the improved productivity of a dual monitor setup, the dock can connect to an HDMI and a Thunderbolt display, with 4K resolution on a single display.
You can even connect multiple displays via Thunderbolt daisy chain, giving you two convenient possibilities for expanding your overall screen real estate!
Ultimate Workstation Convenience

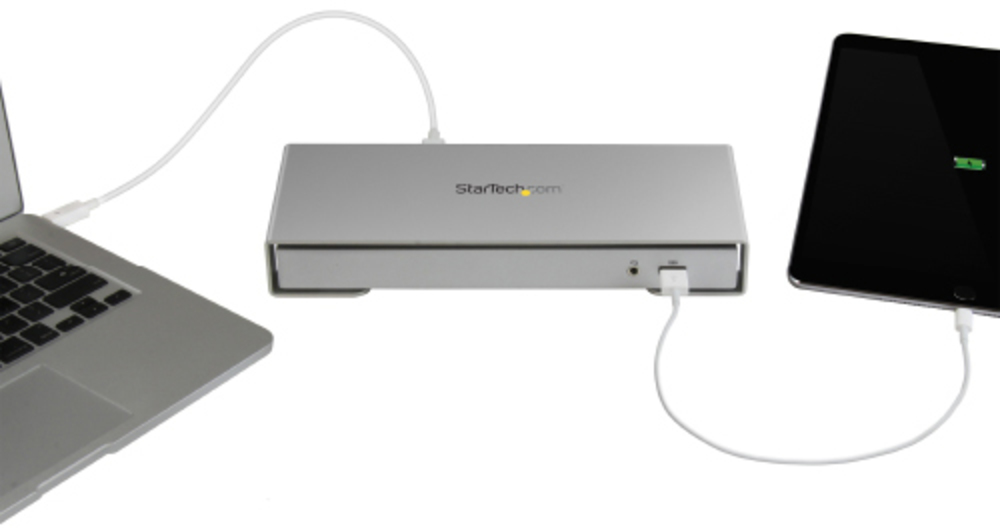

For a convenient workstation experience, you can eliminate hassle and save time by leaving your vital peripherals connected to the dock. You can easily create a dynamic, full-sized workstation in seconds using the included Thunderbolt cable. Plus, you can fast-charge your tablet or smartphone with or without your laptop connected to the dock, through a handy, always-on USB fast-charge port.
This Thunderbolt dock lets you hurdle connection limitations by adding several essential ports to your MacBook Pro or MacBook Air, such as multiple storage peripherals through eSATA (with port multiplier support) and USB 3.0 hub ports. Unlike other Thunderbolt docking stations, the TB2DOCK4KDHC offers an SPDIF port so you can take advantage of your laptop or MacBook 5.1 digital optical audio capabilities. Plus, for maximum connectivity you can daisy chain up to 6 Thunderbolt devices.
Universally Supported
Unlike some proprietary docking stations designed only to work with specific laptop models, this universal Thunderbolt 2 laptop dock works with multiple brands. All you need is your laptop or MacBook Thunderbolt 2 port and you can be up and running quickly. With universal support, you can use this dock with different laptops.
Backed by a StarTech.com 3-year warranty and free lifetime technical support, this durable Thunderbolt 2 dock also features an aluminum outer frame and stylish silver sandblast finish that matches your MacBook nicely!
The StarTech.com Advantage
- Unparalleled performance with support for Thunderbolt 2 data rates up to 20 Gbps
- Vivid 4K image quality, with support for 3840 x 2160p Ultra HD resolutions, including 4K at 60Hz when using a Thunderbolt display
- Connect dual displays with HDMI and Thunderbolt monitors, with 4K on one display
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt 2 ports quantity | 2 |
| Host interface | Thunderbolt 2 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Yes |
| Number of microphone inputs | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Silver |
| Card reader integrated | No |
| Brand compatibility | Apple |
| Compatibility | MacBook |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Data transfer rate | 20 Gbit/s |
| Certification | CE, FCC, Thunderbolt |
| Housing material | Aluminium, Plastic |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 2 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 60 W |
| Output voltage | 12 V |
| Output current | 5 A |
| Software | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 500 g |
| Width | 82 mm |
| Depth | 234 mm |
| Height | 38 mm |
| Package weight | 1.71 kg |
| Package width | 273 mm |
| Package depth | 182 mm |
| Package height | 126 mm |
| Design | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Product colour | Silver |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Certification | CE, FCC, Thunderbolt |
| Packaging data | |
| Package weight | 1.71 kg |
| Package width | 273 mm |
| Package depth | 182 mm |
| Package height | 126 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Other features | |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Number of microphone inputs | 1 |
| Chipset | Intel - Falcon Ridge DSL5520, ASMedia — ASM1042A, ASMedia — ASM1061, CMedia — CM6500, Texas Instruments — PCM2912A, Intel – WGI210AT |
