StarTech.com 3 Port PCI Adapter Card interface cards/adapter
- Brand: StarTech.com
- Category:
- SKU: PCI312PUSB
- EAN: 0031112403281 0065030830898 07 ...0830898 0777781843859more
3 Port PCI 12V PoweredUSB Adapter Card - USB PlusPower
Offer details
Related Products
Description

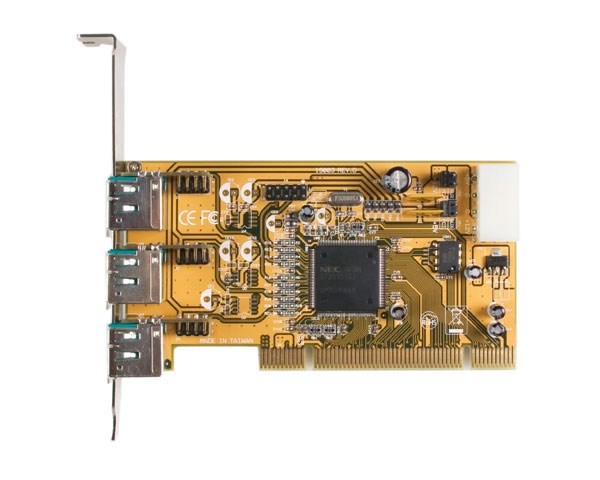

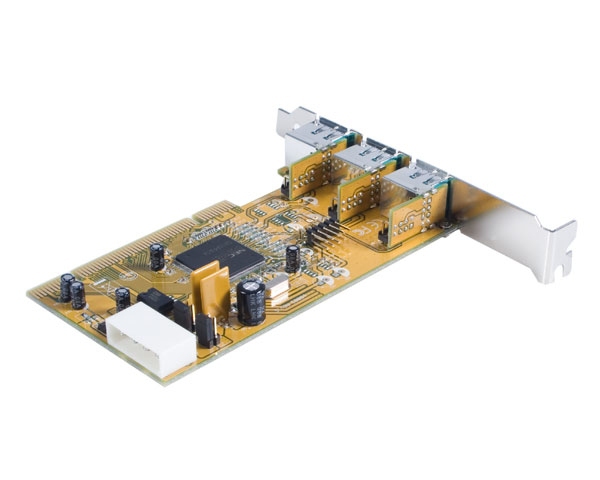

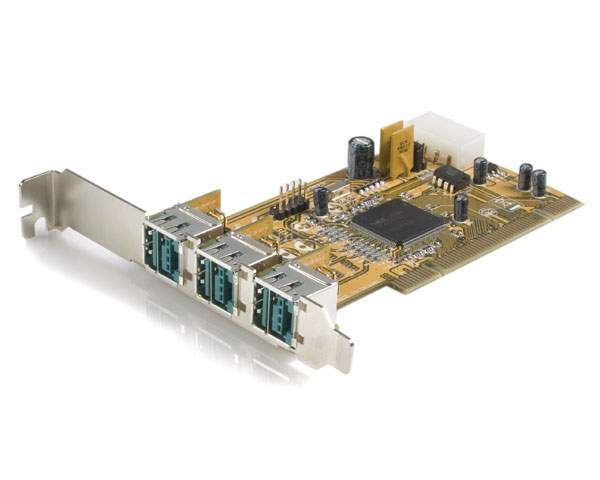

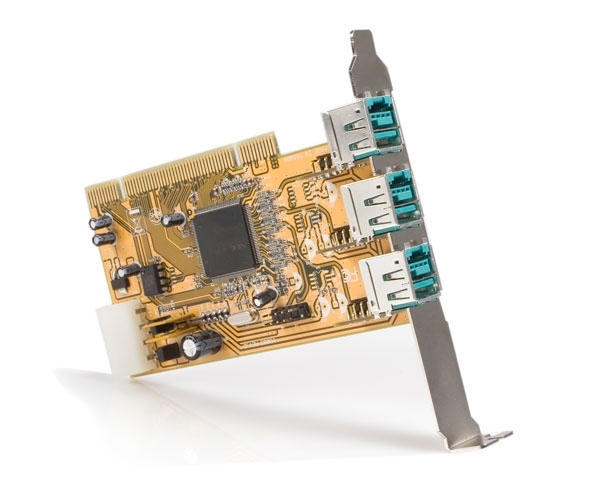

This PCI based Powered USB Adapter Card adds three Powered USB (USB PlusPower) ports to any computer, through an available PCI Slot.
Drawing power from either the PCI slot or the computer power supply, the Powered USB adapter card provides up to 3A of current to each connected device, allowing for up to three Powered USB devices to be installed at a time.
Plus, this PCI Powered USB Adapter Card can be connected to StarTech.com's 2 Port 12V/24V Powered USB Adapter Card (PUSBADAP), to create two additional Powered USB ports, without using an extra PCI slot.

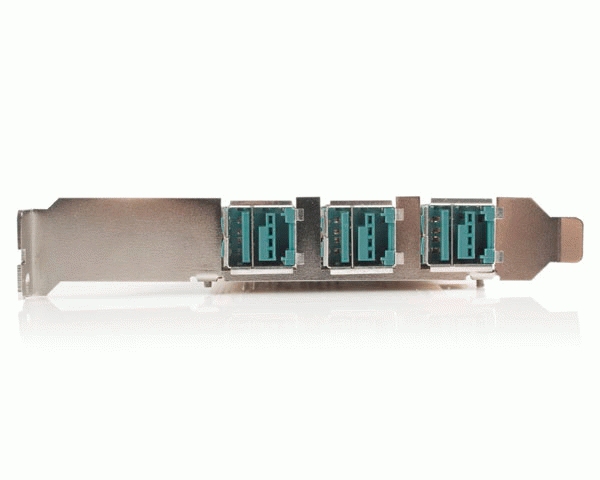

- 3 external 12V Powered USB Connectors
- Powered from either the PCI slot or the Power Supply of the P.C. with a standard LP4 connection
- Supplies power and data signals over hot-plugging USB cable
- Can be linked to a daughter board or stand alone
- Selectable power input
- Backwards compatible with USB 1.1 and 2.0 standards and allow for hot-plugging
- No external power is required
- Cable locking mechanism
- Two internal USB connections can be used to expanded to the daughter board by connecting the USB header on the Main Board to the USB header on the daughter board using a USB cable
- Maximum data transfer rate: 480 Mbps
Drawing power from either the PCI slot or the computer power supply, the Powered USB adapter card provides up to 3A of current to each connected device, allowing for up to three Powered USB devices to be installed at a time.
Plus, this PCI Powered USB Adapter Card can be connected to StarTech.com's 2 Port 12V/24V Powered USB Adapter Card (PUSBADAP), to create two additional Powered USB ports, without using an extra PCI slot.
- 3 external 12V Powered USB Connectors
- Powered from either the PCI slot or the Power Supply of the P.C. with a standard LP4 connection
- Supplies power and data signals over hot-plugging USB cable
- Can be linked to a daughter board or stand alone
- Selectable power input
- Backwards compatible with USB 1.1 and 2.0 standards and allow for hot-plugging
- No external power is required
- Cable locking mechanism
- Two internal USB connections can be used to expanded to the daughter board by connecting the USB header on the Main Board to the USB header on the daughter board using a USB cable
- Maximum data transfer rate: 480 Mbps
Specifications
| Performance | |
|---|---|
| Chipset | NEC D720101GJ |
| Product colour | Brown |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| Host interface | PCI |
| Design | |
| Product colour | Brown |
| Features | |
| Chipset | NEC D720101GJ |
| Power | |
| Power consumption (typical) | 100 W |
| Weight & dimensions | |
| Width | 66.7 mm |
| Depth | 81.2 mm |
| Weight | 200 g |
| Other features | |
| Data transfer rate | 480 Mbit/s |
| Ports quantity | 3 |
| Connectivity technology | Wireless |
| Quantity outer carton | 50 pc(s) |
| Mac compatibility | No |
| Compatible operating systems | Windows 2000/ME/2003/XP/Vista |
| I/O ports | 4xUSB 1xLP4 4xJumper |
