StarTech.com 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART
- Brand: StarTech.com
- Category:
- SKU: EC2S952
- EAN: 0151903034422 5052217025296 01 ...7025296 0163121466541 0797864295078 0065030834933 0168141512506 0650308349334 0163120280919 0803982813893 0100177417479more

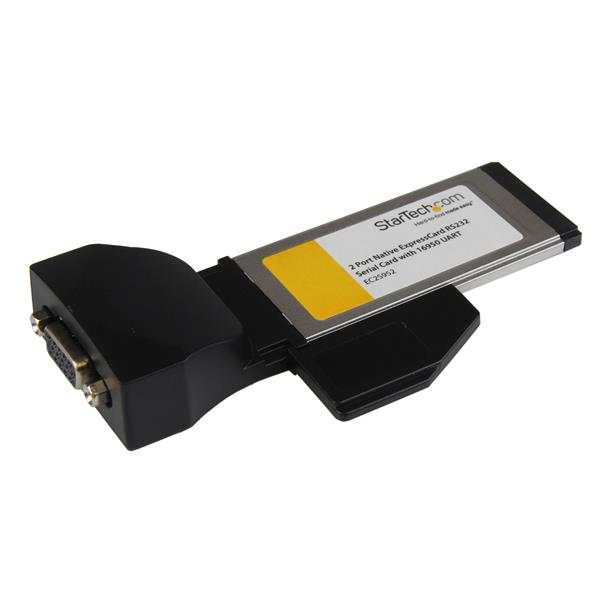

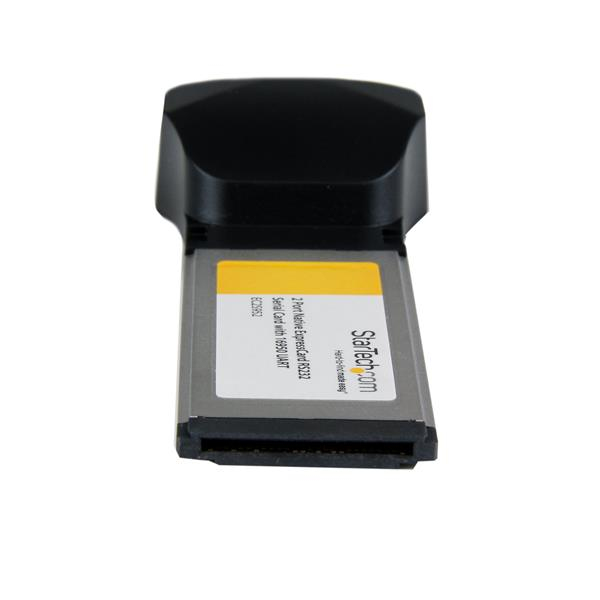

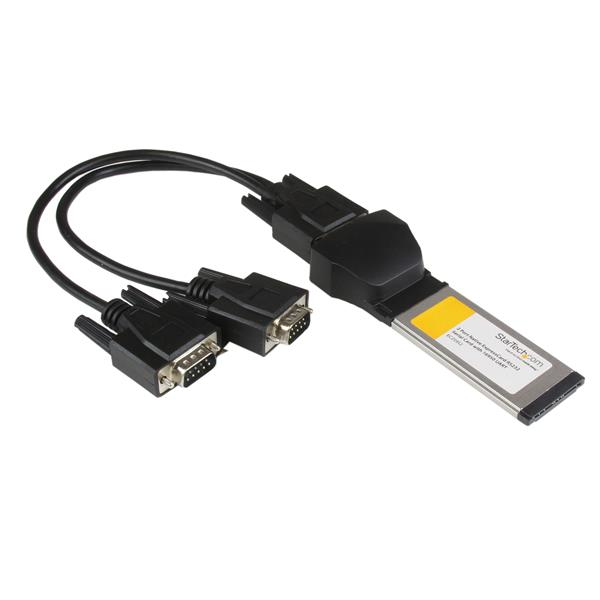

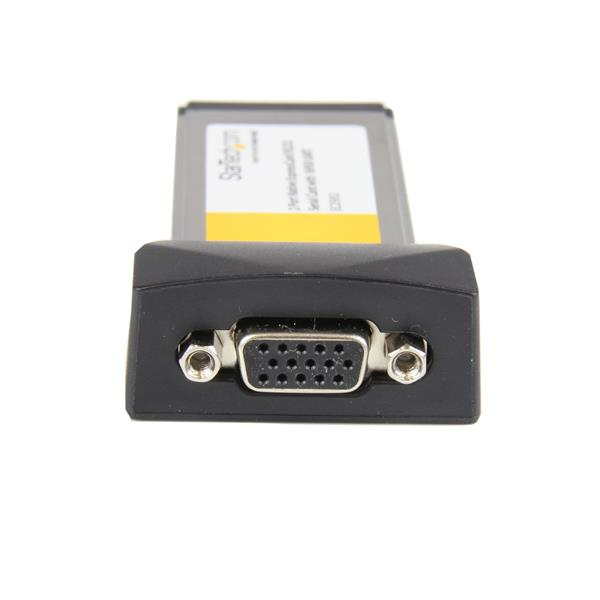

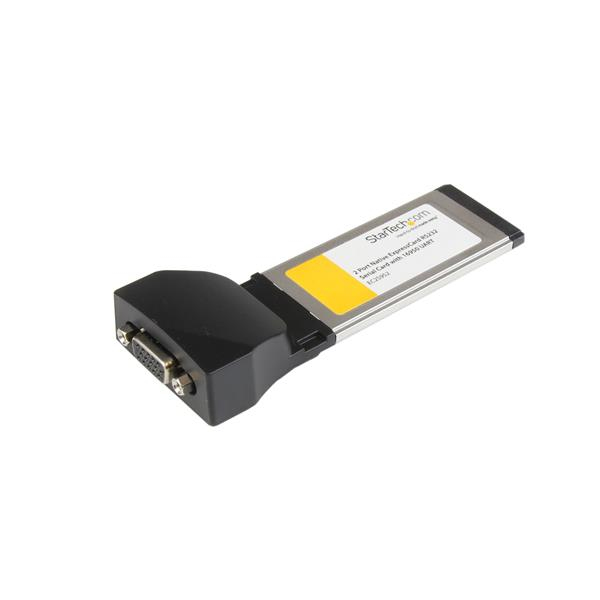

StarTech.com 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART - Dual Port ExpressCard Serial Card
Offer details
Related Products
Description
Add 2 high-speed RS-232 Serial ports to your notebook computer via an ExpressCard slot
This 2 Port ExpressCard-based Serial Card lets you add 2 RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot.
Featuring 128-byte FIFO communication, and a high performance 16C950 UART, the ExpressCard Serial Adapter card offers baud rates up to 115.2Kbps, which ensures peak communication with your serial peripheral devices.
The serial card is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load.
Compatible with ExpressCard /34mm and ExpressCard 54mm card slots, the 2 Port Serial ExpressCard includes a slot spacer for greater security while installed in 54mm slots.
The StarTech.com Advantage
- Backed by StarTech.com’s Lifetime warranty
- Compatible with both 34mm and 54mm ExpressCard slots; includes a slot spacer for greater security while installed in 54mm slots
- The high performing single chip design optimizes speed, reliability, and power while reducing CPU load by as much as 48%
This 2 Port ExpressCard-based Serial Card lets you add 2 RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot.
Featuring 128-byte FIFO communication, and a high performance 16C950 UART, the ExpressCard Serial Adapter card offers baud rates up to 115.2Kbps, which ensures peak communication with your serial peripheral devices.
The serial card is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load.
Compatible with ExpressCard /34mm and ExpressCard 54mm card slots, the 2 Port Serial ExpressCard includes a slot spacer for greater security while installed in 54mm slots.
The StarTech.com Advantage
- Backed by StarTech.com’s Lifetime warranty
- Compatible with both 34mm and 54mm ExpressCard slots; includes a slot spacer for greater security while installed in 54mm slots
- The high performing single chip design optimizes speed, reliability, and power while reducing CPU load by as much as 48%
Specifications
| Performance | |
|---|---|
| Chipset | OXPCIe952 |
| Product colour | Black, Silver |
| Ports & interfaces | |
| Serial ports quantity | 2 |
| Host interface | ExpressCard |
| Design | |
| Product colour | Black, Silver |
| Certification | FCC, CE, ROHS |
| Features | |
| Chipset | OXPCIe952 |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 115 mm |
| Height | 20 mm |
| Weight | 36 g |
| Package width | 43 mm |
| Package depth | 215 mm |
| Package height | 148 mm |
| Package weight | 360 g |
| Packaging data | |
| Package width | 43 mm |
| Package depth | 215 mm |
| Package height | 148 mm |
| Package weight | 360 g |
| Other features | |
| Data transfer rate | 0.4 Mbit/s |
| Connectivity technology | Wired |
| Other network protocols supported | ASPM |
| Mac compatibility | No |
| Compatible operating systems | Win 2000/XP/2003/Vista Linux |
| I/O ports | 2x DB9 M |
