StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage
- Brand: StarTech.com
- Category:
- SKU: PCI1S950DV
- EAN: 0151903074183 0803982788016 08 ...2788016 0851975705526 0163120553020 0777780538466 0806291828305 0172302676785 0141291065283 0652954896460 0065030821773 0132018237717 0611101311102 0788490624912 0712418981191 0132018237410more
StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 - Dual Voltage - PCI Serial Adapter - PCI RS232 - PCI Serial Card
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage |
STH-PCI1S950DV |
Related Products
Description

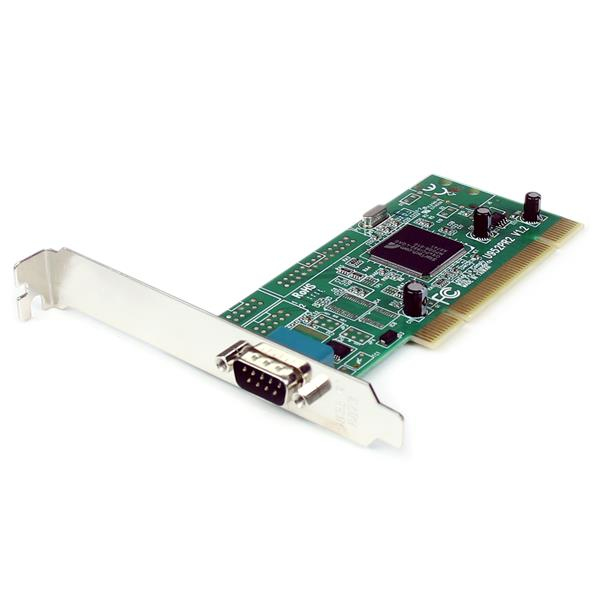

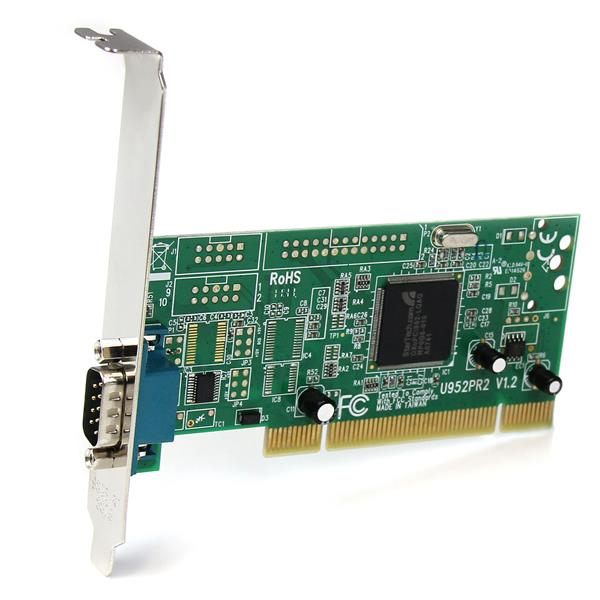

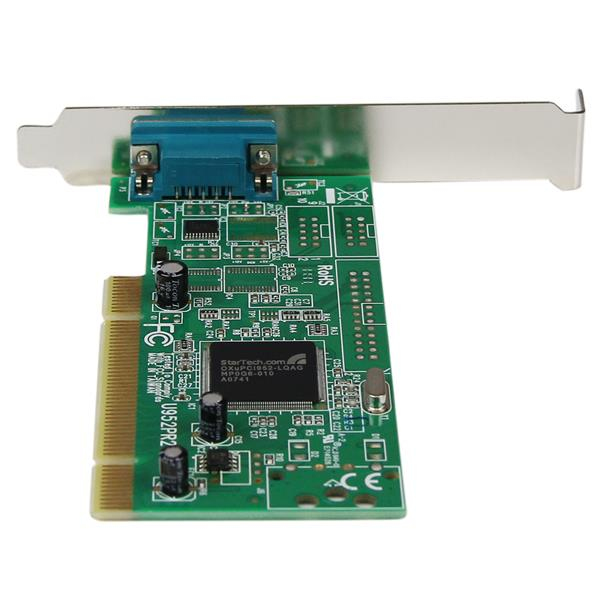

The PCI1S950DV 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage offers a high performance 16950 UART channel/port for connecting any new or legacy serial peripheral, with data transfer rates of up to 460Kbps.
A cost-effective solution for connecting serial modems, POS devices, printers, ISDN terminal adapters and more, and offers dual voltage support, allowing you to use a PCI (5V) or PCI-X (3.3V) slot for installation.
A versatile solution, the PCI Serial card supports several current and legacy versions of Windows®, plus IRQ sharing and a PCI plug and play interface to guarantee convenient, hassle-free serial device connections. Suitable for installation in standard or small form factor PC cases, the PCI serial card includes an optional low profile/half-height bracket for easy installation.
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- Reach maximum transfer rates up to 420 Kbps for efficient serial device performance

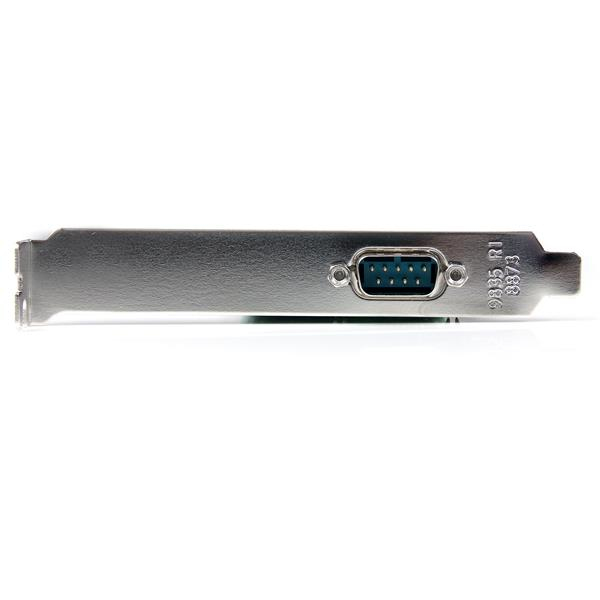

- Standard and low profile/half-height bracket included for fitment into almost any system form factor
- Universal PCI card works in both 3.3 and 5.0 volt PCI/PCI-X slots for maximum compatibility
A cost-effective solution for connecting serial modems, POS devices, printers, ISDN terminal adapters and more, and offers dual voltage support, allowing you to use a PCI (5V) or PCI-X (3.3V) slot for installation.
A versatile solution, the PCI Serial card supports several current and legacy versions of Windows®, plus IRQ sharing and a PCI plug and play interface to guarantee convenient, hassle-free serial device connections. Suitable for installation in standard or small form factor PC cases, the PCI serial card includes an optional low profile/half-height bracket for easy installation.
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- Reach maximum transfer rates up to 420 Kbps for efficient serial device performance
- Standard and low profile/half-height bracket included for fitment into almost any system form factor
- Universal PCI card works in both 3.3 and 5.0 volt PCI/PCI-X slots for maximum compatibility
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Host interface | PCI |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 2.2 |
| Performance | |
| Purpose | PC |
| FIFO (First In, First Out) | 128 B |
| Data transfer rate (max) | 0.00046 Gbit/s |
| Product colour | Green, Stainless steel |
| Design | |
| Purpose | PC |
| Internal | Yes |
| Product colour | Green, Stainless steel |
| Certification | CE, FCC |
| Features | |
| FIFO (First In, First Out) | 128 B |
| Data transfer rate (max) | 0.00046 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 |
| Weight & dimensions | |
| Width | 20 mm |
| Depth | 120 mm |
| Height | 120 mm |
| Weight | 60 g |
| Package width | 58 mm |
| Package depth | 148 mm |
| Package height | 195 mm |
| Package weight | 200 g |
| Packaging data | |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 58 mm |
| Package depth | 148 mm |
| Package height | 195 mm |
| Package weight | 200 g |

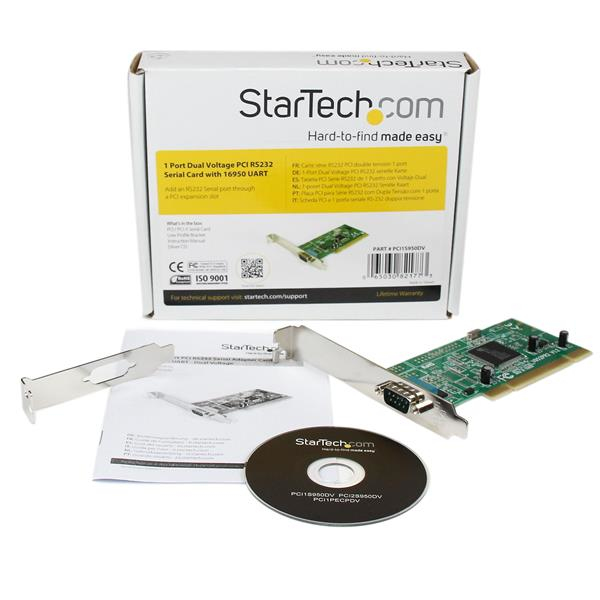

| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
