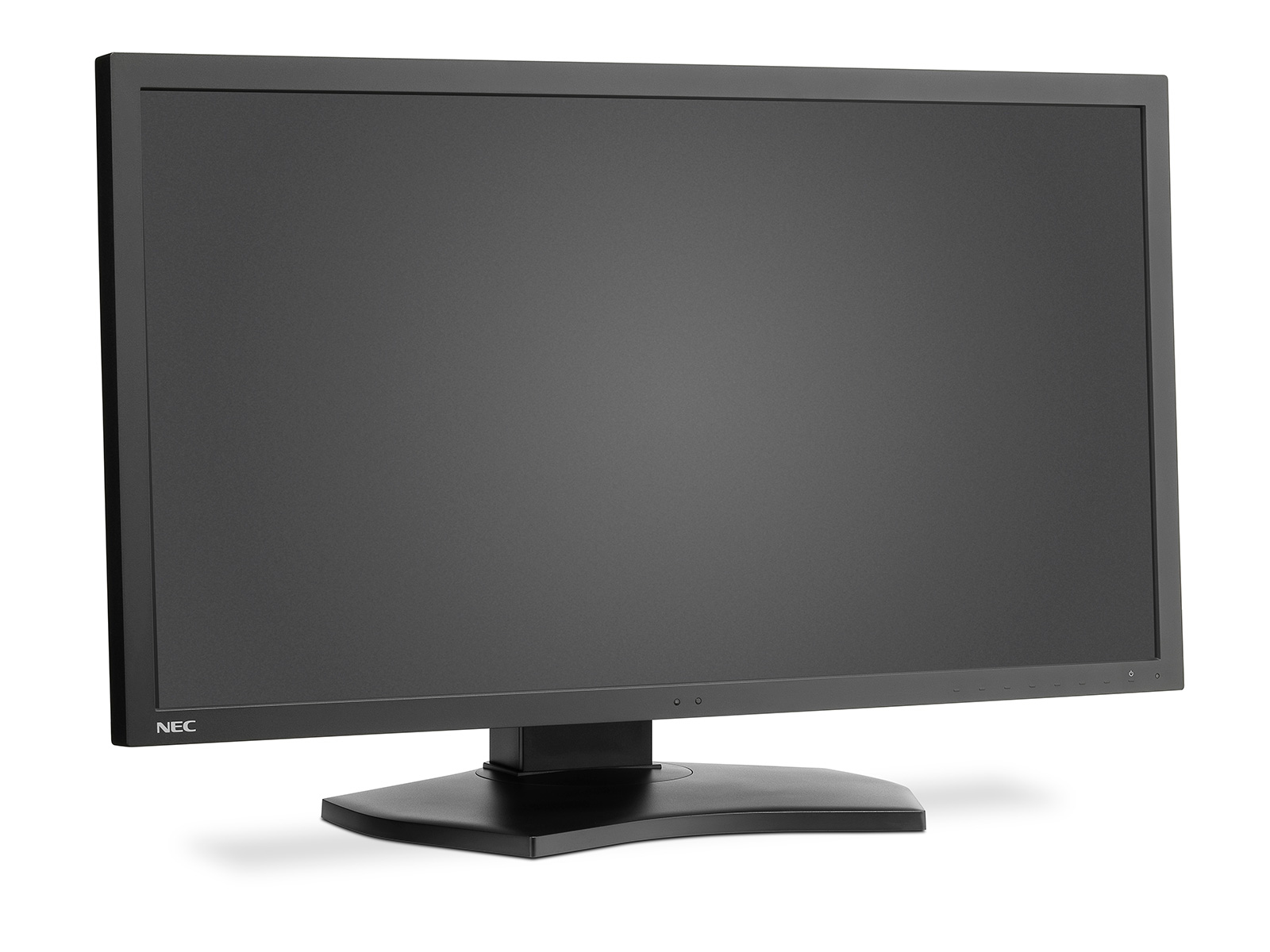

NEC MultiSync PA311D computer monitor 78.7 cm (31") 4096 x 2160 pixels 4K Ultra HD LCD Black
- Brand: NEC
- Category:
- SKU: 60004941
- EAN: 5028695117563
PA311D, 31", 4096x2160, IPS TFT, W-LED, USB, HDMI, DP, RJ-45, 737.9x433.2-583.2x301.6 mm
Offer details
Related Products
Description
Uncompromising performance for highly demanding workflows
Where detail and precise visualisation is application-critical, the extensive 31” screen estate with true 4K resolution provides an outstanding canvas for viewing of vast content in highly demanding workplaces. Appealing for post-production workflows, the 4096 x 2160 resolution supports the processing of original footage without downscaling to UHD resolutions. With a High Dynamic Range, images appear sharper, more natural and true-to-life.
Supporting your creative output, the 31.5’’ panel, 14 bit gamma 3D look up table, SpectraView® Engine, integrated calibration sensor and support for an external sensor ensure superior colour reproduction and management processes. The USB Type C delivers 65W to charge power hungry notebooks and mobile devices directly from the display whilst delivering 4K signal in DP Alt mode with one single cable connection.
Demanding users in the creative industry from architects to media producers and C&C operators will appreciate the advanced innovation and outstanding ergonomics of the PA311D.
Where detail and precise visualisation is application-critical, the extensive 31” screen estate with true 4K resolution provides an outstanding canvas for viewing of vast content in highly demanding workplaces. Appealing for post-production workflows, the 4096 x 2160 resolution supports the processing of original footage without downscaling to UHD resolutions. With a High Dynamic Range, images appear sharper, more natural and true-to-life.
Supporting your creative output, the 31.5’’ panel, 14 bit gamma 3D look up table, SpectraView® Engine, integrated calibration sensor and support for an external sensor ensure superior colour reproduction and management processes. The USB Type C delivers 65W to charge power hungry notebooks and mobile devices directly from the display whilst delivering 4K signal in DP Alt mode with one single cable connection.
Demanding users in the creative industry from architects to media producers and C&C operators will appreciate the advanced innovation and outstanding ergonomics of the PA311D.
Specifications
Display | |
---|---|
Display brightness (typical) | 350 cd/m² |
Native aspect ratio | 17:9 |
Display number of colours | 1.073 billion colours |
Screen shape | Flat |
Display technology | LCD |
Pixel pitch | 0.1704 x 0.1704 mm |
Horizontal scan range | 15 - 135 kHz |
Vertical scan range | 24 - 75 Hz |
Viewable size, horizontal | 69.8 cm |
Viewable size, vertical | 36.8 cm |
3D | No |
HD type | 4K Ultra HD |
Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2550 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
Backlight type | W-LED |
Display resolution | 4096 x 2160 pixels |
Response time | 8 ms |
Display diagonal | 78.7 cm (31") |
Contrast ratio (typical) | 1400:1 |
Maximum refresh rate | 60 Hz |
Panel type | IPS |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Low Blue Light technology | Yes |
Flicker-free technology | Yes |
Multimedia | |
Built-in speaker(s) | Yes |
Built-in camera | No |
RMS rated power | 2 W |
Number of speakers | 2 |
TV tuner integrated | No |
Design | |
Market positioning | Business |
Feet colour | Black |
Certification | CE; EAC; ErP; ISO 9241-307; TÜV GS; WEEE |
Product colour | Black |
Ports & interfaces | |
Built-in USB hub | Yes |
USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
Number of upstream ports | 3 |
USB Type-A downstream ports quantity | 3 |
USB Type-C downstream ports quantity | 1 |
DVI port | No |
HDMI ports quantity | 2 |
DisplayPorts quantity | 2 |
HDMI | Yes |
HDMI version | 2.0 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ergonomics | |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100,100 x 200 mm |
Swivelling | Yes |
Swivel angle range | -45 - 45° |
Tilt angle range | -5 - 30° |
Height adjustment | 15 cm |
Plug and Play | Yes |
Picture-in-Picture | Yes |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Tilt adjustment | Yes |
On/off switch | Yes |
Picture-by-Picture (PbP) | Yes |
Power | |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 187 W |
Power consumption (standby) | 2 W |
Power consumption (typical) | 84 W |
Power consumption (PowerSave) | 10 W |
Input current | 1/2.4 A |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | G |
Energy efficiency class (HDR) | G |
Energy consumption (SDR) per 1000 hours | 79 kWh |
Energy consumption (HDR) per 1000 hours | 92 kWh |
European Product Registry for Energy Labelling (EPREL) code | 404828 |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 85% |
Storage temperature (T-T) | -20 - 50 °C |
Storage relative humidity (H-H) | 10 - 85% |
Operating temperature (T-T) | 0 - 40 °C |
Operating altitude | 0 - 5000 m |
Non-operating altitude | 0 - 12192 m |
Weight & dimensions | |
Width (with stand) | 737.9 mm |
Depth (with stand) | 301.6 mm |
Height (with stand) | 433.2 mm |
Bezel width (side) | 1.93 cm |
Bezel width (top) | 2.21 cm |
Bezel width (bottom) | 2.21 cm |
Weight (with stand) | 14.9 kg |
Weight (without stand) | 8.6 kg |
Packaging data | |
Cables included | AC, DisplayPort, DisplayPort to Mini DisplayPort, Mini DisplayPort, USB |
Other features | |
On/off switch | Yes |
Certification | CE; EAC; ErP; ISO 9241-307; TÜV GS; WEEE |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
TV tuner integrated | No |
Touchscreen | No |
Picture-by-Picture (PbP) | Yes |
Compliance certificates | RoHS |
Power consumption (max) | 187 W |
Energy efficiency scale | A to G |
HDMI | Yes |
Certificates | |
Certification | CE; EAC; ErP; ISO 9241-307; TÜV GS; WEEE |
Packaging content | |
Cables included | AC, DisplayPort, DisplayPort to Mini DisplayPort, Mini DisplayPort, USB |
Technical details | |
Weight (with stand) | 14.9 kg |
Touchscreen | No |
