LevelOne WAP-6201 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
- Brand: LevelOne
- Category:
- SKU: WAP-6201
- EAN: 4015867194461 0846359037164
N150 PoE Wireless Access Point, In-Wall Mount, Controller Managed, 300 Mbps, 802.1b/g/n
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Wireless Access Point 300 |
WAP-6201 |
Description
N150 PoE Wireless Access Point, In-Wall Mount, Controller Managed

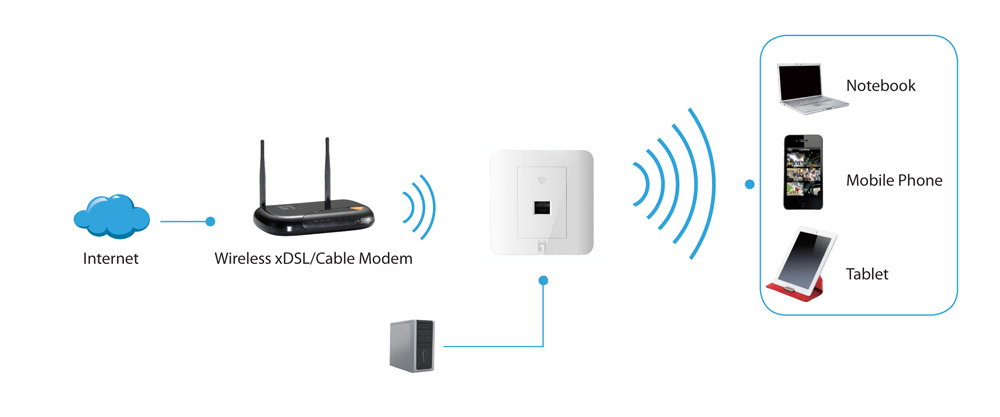

The WAP-6201 from LevelOne is a high-performance wireless access point delivering ultra high-speed connectivity and extended range. The device can be configured to work independently in Fat mode, or as part of a centrally managed network in Fit mode. WAP-6201 is a PoE device, requiring just one Cat.5 cable for both power and data. Up to four SSIDs can be assigned to the device for optimum security, and a stylish, low-profile design with front port access compliments the AP’s superior performance.
The WAP-6201 from LevelOne is a high-performance wireless access point delivering ultra high-speed connectivity and extended range. The device can be configured to work independently in Fat mode, or as part of a centrally managed network in Fit mode. WAP-6201 is a PoE device, requiring just one Cat.5 cable for both power and data. Up to four SSIDs can be assigned to the device for optimum security, and a stylish, low-profile design with front port access compliments the AP’s superior performance.
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Number of users | 10 user(s) |
| Web-based management | Yes |
| Switch type | Managed |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Firmware upgradeable | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Number of users | 10 user(s) |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Security | |
| Number of SSID supported | 4 |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Management features | |
| Web-based management | Yes |
| Switch type | Managed |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Internal RJ-45 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | In-wall |
| Product colour | White |
| Internal | Yes |
| Reset button | Yes |
| LED indicators | WLAN |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 4 dBi |
| Antenna features | Integrated antenna |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 86 mm |
| Weight | 80 g |
| Height | 30 mm |
| Packaging data | |
| CD quick installation guide | Yes |
| CD manual | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| CD quick installation guide | Yes |
| CD manual | Yes |
| Cables included | LAN (RJ-45) |
