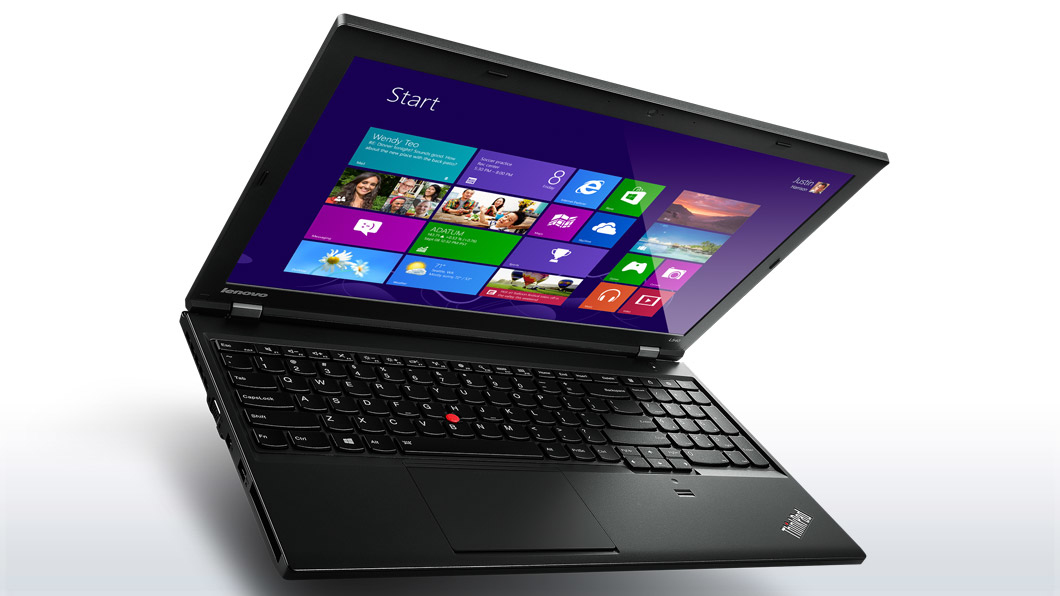

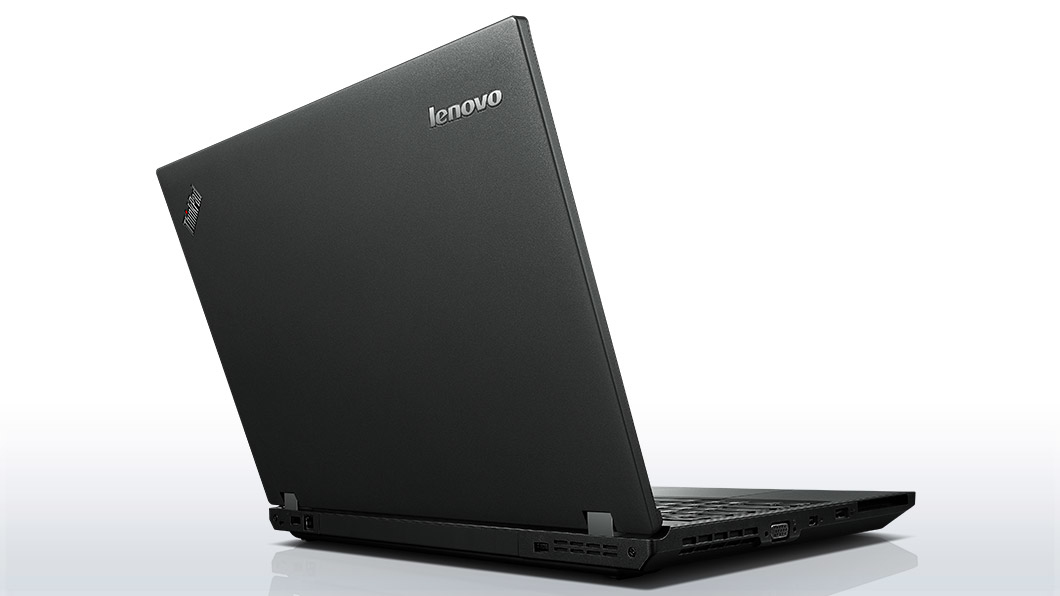

Lenovo ThinkPad L540 Intel® Core™ i3 i3-4000M Laptop 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black
Intel Core i3-4000M (2.4 GHz), 4GB RAM, 500GB HDD, 15.6" HD (1366x768), Intel HD Graphics 4600, 802.11b/g/n, Bluetooth 4.0, Windows 7 Professional 64
Offer details
Related Products
Description
Improved Design Changes
The new 2013 - 2014 ThinkPads feature quality design changes that focus on real-life experiences with input from over 900 people in 9 different countries. Improvements in LCD design and smaller internal antenna result in a reduced bezel size—actually 20% smaller than previous generations—yet our ThinkPads deliver legendary reliability and meet or exceed rigorous military-specification standards. Plus these notebooks lie flat, at a 180-degree angle, adding enhanced flexibility for use and sharing.
Security & Manageability Features
Intel® vPro, Computrace, encrypted hard disk drive, BIOS port locking, Trusted Platform Module, and more, ensure your business-critical data is secure and easily managed.
MIL-SPEC / Military-Specification Testing
Validates the ruggedness, durability, and quality of ThinkPad products by testing against eight parameters: high pressure, humidity, vibration, high temperature, temperature shock, low pressure (15,000 ft), low temperature, and dust.

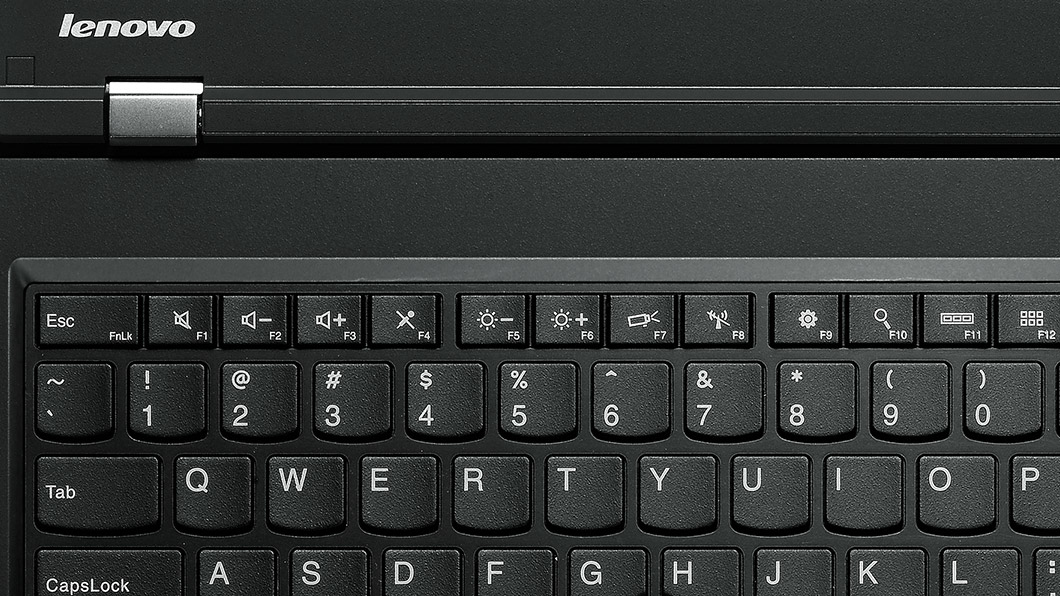

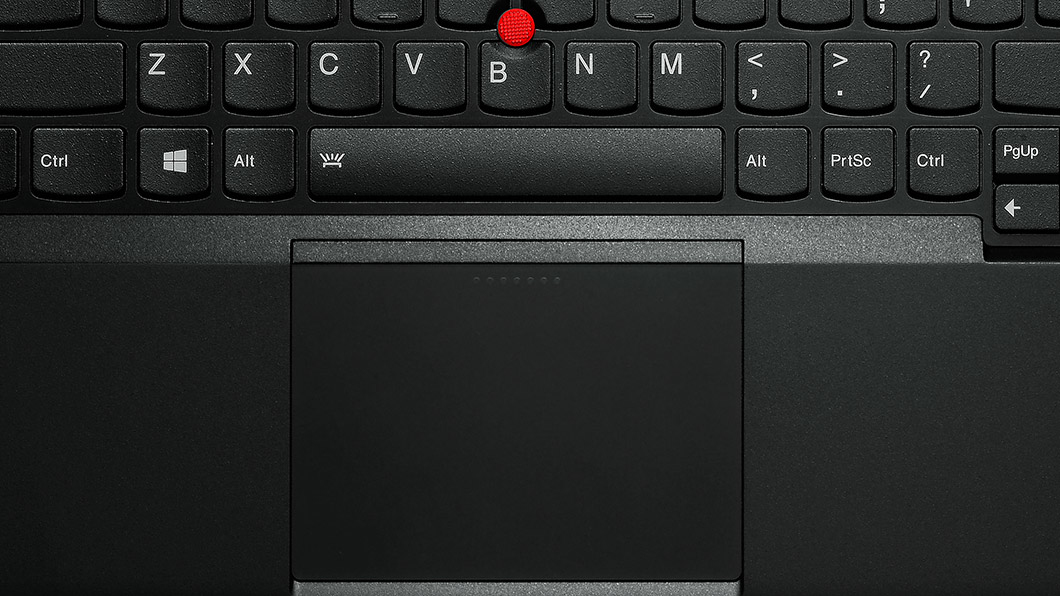

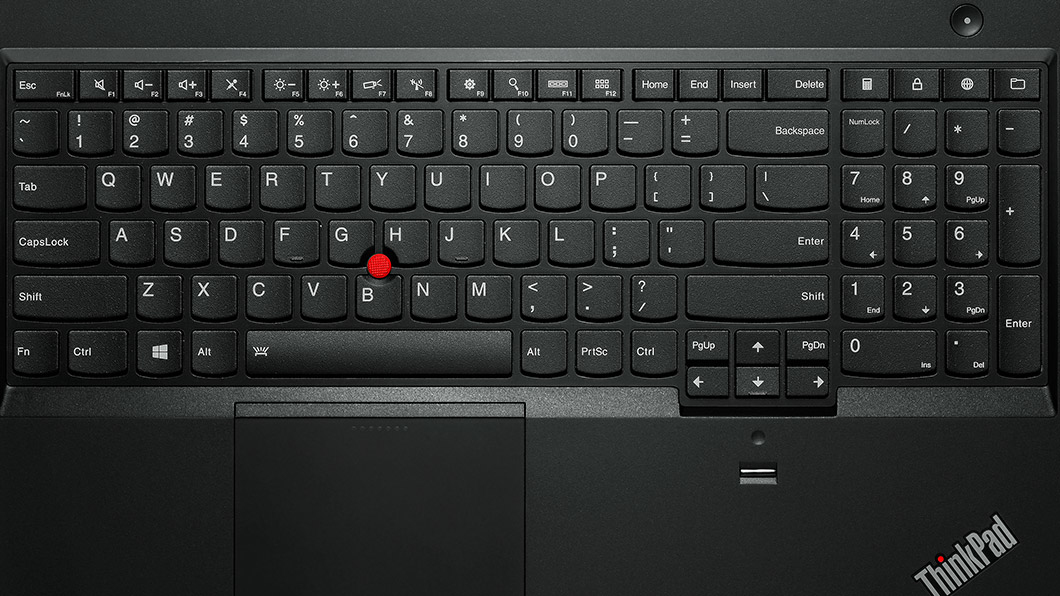

Award-Winning Keyboard Further Enhanced for Windows 8
Full-sized and spill-resistant, the legendary ThinkPad ergonomic keyboard is renowned for its full array of keys, excellent feel, and TrackPoint® pointing device. And now it's optimized for Windows 8 with convenient multimedia buttons, function-lock capability, and immediate access to view apps. Plus, a larger, smooth TrackPad with 5-point click integration can be configured multiple ways through Settings. Plus, the L540 also includes a numeric keypad.
Long Battery Life
Enjoy all-day computing with up to 11 hours unplugged on the standard 6-cell 56 Wh battery—whether you're working on-the-go or simply enjoying downtime, you get more than a full day on a single charge.

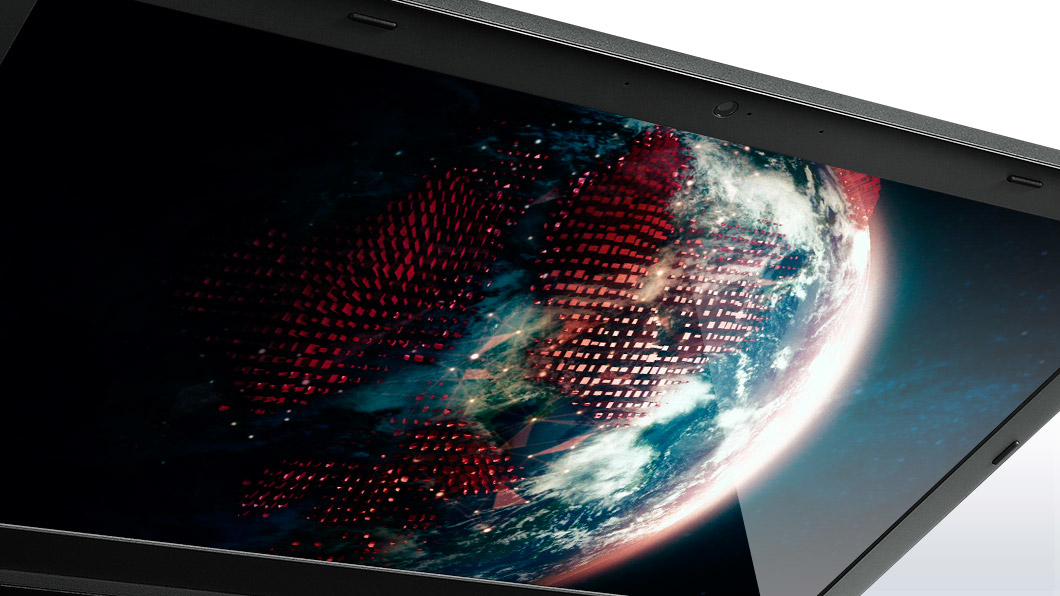

High Resolution Display
Enjoy visuals on a dazzling high resolution display, with HD being our standard offering. The L540 offers a 15.6-inch antiglare HD (1366 x 768) or FHD (1920 x 1080) display.
Hinge-Based Latching & Active Protection System
Thinner and stronger, new ThinkPad laptops include hinge-based latching, which features a cleaner, modern easy-open design. Tension in the hinges keeps the cover closed during unexpected drops. Plus, Active Protection System (APS), which works with traditional magnetic HDDs, detects when the system is dropped and reacts by stopping the hard drive to protect your data.
Integrated 720p HD Webcam & Dual Noise-Cancelling Microphones
Enjoy superior web conferencing on your L540, which includes a low-light sensitive 720p HD webcam with wide-angle viewing and face-tracking, dual noise-cancelling microphones with configurations for crystal-clear private and conference mode VOIP meetings, plus, convenient multimedia keys for quick and easy access to microphone, speaker, and camera controls.
Dolby® Speakers With Advanced Audio™
This suite of audio technologies enables your ThinkPad to deliver a crisp, clear surround sound experience over its built-in stereo speakers. The technology increases audio clarity for VOIP applications, maximizes volume output without distortion, and improves dialogue clarity when watching videos.

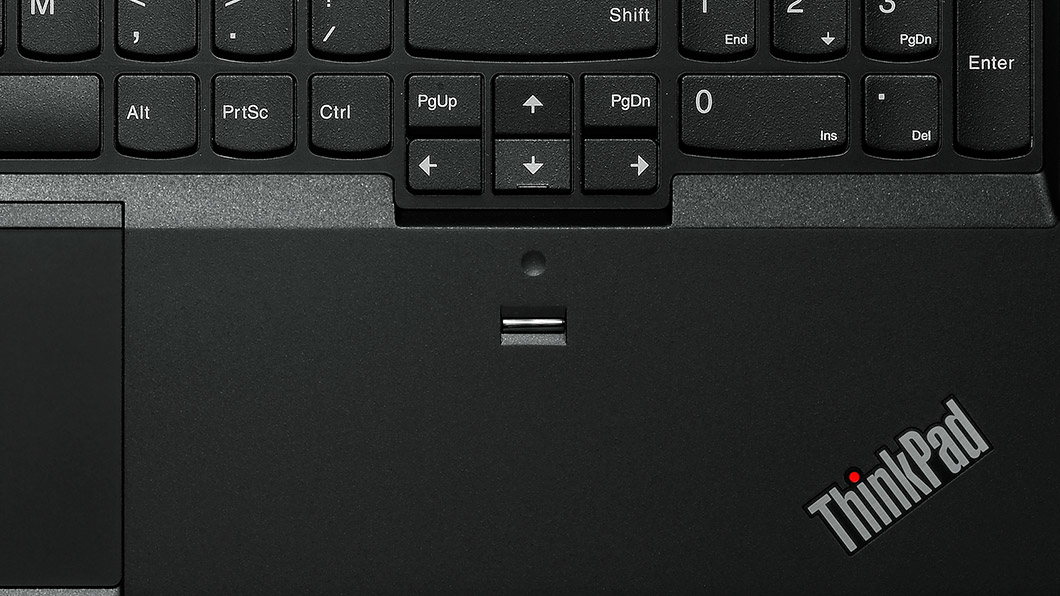

Integrated Fingerprint Reader (Optional)
Get quick, convenient access and secure login with one swipe.

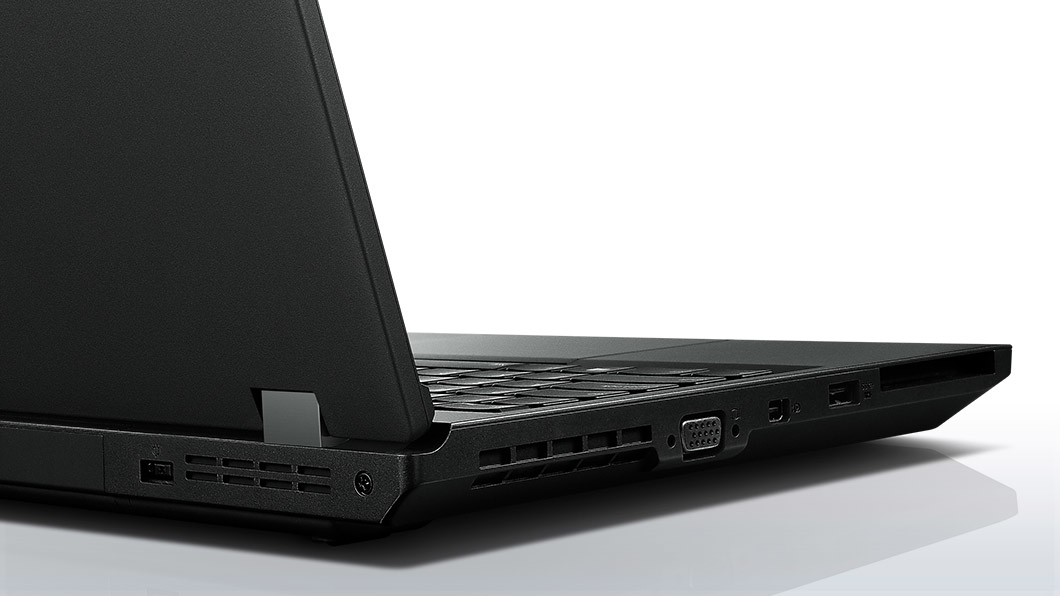

Fast Data Transfer
Move data quickly between the L540 and other devices with SuperSpeed USB 3.0, which enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals.
WWAN (3G/4G) (Optional)
Add wireless WAN connectivity and go online virtually anywhere without a WiFi connection.
Greenest ThinkPad Available
ThinkPad L Series continues the legacy of saving energy to lower power consumption costs. With numerous environmental certifications like EPEAT® Gold, ENERGY STAR, ULE Gold Sustainable Product Certification, up to 10% post-consumer content, and low halogen, the L540 is good for the planet and your bottom line.
Budget Protection
Ensure cost-effective, worry-free enjoyment of your L540 with accidental damage protection, which keeps you covered in the event of accidental damage caused by drops or spills that occur under normal working conditions.
The new 2013 - 2014 ThinkPads feature quality design changes that focus on real-life experiences with input from over 900 people in 9 different countries. Improvements in LCD design and smaller internal antenna result in a reduced bezel size—actually 20% smaller than previous generations—yet our ThinkPads deliver legendary reliability and meet or exceed rigorous military-specification standards. Plus these notebooks lie flat, at a 180-degree angle, adding enhanced flexibility for use and sharing.
Security & Manageability Features
Intel® vPro, Computrace, encrypted hard disk drive, BIOS port locking, Trusted Platform Module, and more, ensure your business-critical data is secure and easily managed.
MIL-SPEC / Military-Specification Testing
Validates the ruggedness, durability, and quality of ThinkPad products by testing against eight parameters: high pressure, humidity, vibration, high temperature, temperature shock, low pressure (15,000 ft), low temperature, and dust.
Award-Winning Keyboard Further Enhanced for Windows 8
Full-sized and spill-resistant, the legendary ThinkPad ergonomic keyboard is renowned for its full array of keys, excellent feel, and TrackPoint® pointing device. And now it's optimized for Windows 8 with convenient multimedia buttons, function-lock capability, and immediate access to view apps. Plus, a larger, smooth TrackPad with 5-point click integration can be configured multiple ways through Settings. Plus, the L540 also includes a numeric keypad.
Long Battery Life
Enjoy all-day computing with up to 11 hours unplugged on the standard 6-cell 56 Wh battery—whether you're working on-the-go or simply enjoying downtime, you get more than a full day on a single charge.
High Resolution Display
Enjoy visuals on a dazzling high resolution display, with HD being our standard offering. The L540 offers a 15.6-inch antiglare HD (1366 x 768) or FHD (1920 x 1080) display.
Hinge-Based Latching & Active Protection System
Thinner and stronger, new ThinkPad laptops include hinge-based latching, which features a cleaner, modern easy-open design. Tension in the hinges keeps the cover closed during unexpected drops. Plus, Active Protection System (APS), which works with traditional magnetic HDDs, detects when the system is dropped and reacts by stopping the hard drive to protect your data.
Integrated 720p HD Webcam & Dual Noise-Cancelling Microphones
Enjoy superior web conferencing on your L540, which includes a low-light sensitive 720p HD webcam with wide-angle viewing and face-tracking, dual noise-cancelling microphones with configurations for crystal-clear private and conference mode VOIP meetings, plus, convenient multimedia keys for quick and easy access to microphone, speaker, and camera controls.
Dolby® Speakers With Advanced Audio™
This suite of audio technologies enables your ThinkPad to deliver a crisp, clear surround sound experience over its built-in stereo speakers. The technology increases audio clarity for VOIP applications, maximizes volume output without distortion, and improves dialogue clarity when watching videos.
Integrated Fingerprint Reader (Optional)
Get quick, convenient access and secure login with one swipe.
Fast Data Transfer
Move data quickly between the L540 and other devices with SuperSpeed USB 3.0, which enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals.
WWAN (3G/4G) (Optional)
Add wireless WAN connectivity and go online virtually anywhere without a WiFi connection.
Greenest ThinkPad Available
ThinkPad L Series continues the legacy of saving energy to lower power consumption costs. With numerous environmental certifications like EPEAT® Gold, ENERGY STAR, ULE Gold Sustainable Product Certification, up to 10% post-consumer content, and low halogen, the L540 is good for the planet and your bottom line.
Budget Protection
Ensure cost-effective, worry-free enjoyment of your L540 with accidental damage protection, which keeps you covered in the event of accidental damage caused by drops or spills that occur under normal working conditions.
Specifications
Design | |
---|---|
Product type | Notebook |
Intel segment tagging | Home office, Small Business |
Market positioning | Business |
Housing material | Plastic |
Form factor | Clamshell |
Product colour | Black |
Display | |
Dual-screen | No |
HD type | Not supported |
LED backlight | Yes |
Display brightness | 220 cd/m² |
Contrast ratio (typical) | 500:1 |
Touchscreen | No |
Display resolution | 1366 x 768 pixels |
Display diagonal | 39.6 cm (15.6") |
Native aspect ratio | 16:9 |
Processor | |
Processor generation | 4th gen Intel® Core™ i3 |
Processor cache | 3 MB |
Processor cache type | Smart Cache |
Tjunction | 100 °C |
Thermal Design Power (TDP) | 37 W |
Stepping | C0 |
Processor series | Intel® Core™ i3-4000 Mobile Series |
Processor operating modes | 64-bit |
Processor lithography | 22 nm |
Processor codename | Haswell |
PCI Express slots version | 2.0 |
PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
Maximum number of PCI Express lanes | 16 |
FSB Parity | No |
Bus type | DMI |
Conflict-Free processor | Yes |
ECC supported by processor | No |
Processor frequency | 2.4 GHz |
Processor model | i3-4000M |
Processor cores | 2 |
Processor threads | 4 |
System bus rate | 5 GT/s |
Processor socket | PGA946 |
Motherboard chipset | Intel® HM86 |
Processor manufacturer | Intel |
Processor family | Intel® Core™ i3 |
Memory | |
Internal memory | 4 GB |
Internal memory type | DDR3-SDRAM |
Memory clock speed | 1600 MHz |
Memory layout (slots x size) | 1 x 4 GB |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 16 GB |
Memory form factor | SO-DIMM |
Storage | |
Storage media | HDD |
Optical drive type | DVD±RW |
Number of HDDs installed | 1 |
HDD capacity | 500 GB |
HDD interface | SATA III |
HDD speed | 7200 RPM |
HDD size | 2.5" |
Card reader integrated | Yes |
Compatible memory cards | MMC, SD, SDHC, SDXC |
Total storage capacity | 500 GB |
Graphics | |
Discrete graphics card | No |
On-board graphics card dynamic frequency (max) | 1100 MHz |
On-board graphics card base frequency | 400 MHz |
Maximum on-board graphics card memory | 2 GB |
On-board graphics card ID | 0x416 |
On-board graphics card DirectX version | 11.1 |
On-board graphics card model | Intel® HD Graphics 4600 |
Discrete graphics card model | Not available |
On-board graphics card | Yes |
On-board graphics card family | Intel® HD Graphics |
Audio | |
Audio system | HD |
Number of built-in speakers | 2 |
Speaker power | 2 W |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Front camera resolution | 1280 x 720 pixels |
Optical drive | |
Optical drive type | DVD±RW |
Network | |
Wi-Fi | Yes |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 4.0 |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 3 |
VGA (D-Sub) ports quantity | 1 |
DVI port | No |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
S/PDIF out port | No |
Combo headphone/mic port | Yes |
Docking connector | Yes |
ExpressCard slot | Yes |
CardBus PCMCIA slot type | No |
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
SmartCard slot | No |
Mini DisplayPorts quantity | 1 |
Charging port type | DC-in jack |
Keyboard | |
Numeric keypad | Yes |
Windows keys | Yes |
Spill-resistant keyboard | Yes |
Software | |
Operating system architecture | 64-bit |
Recovery operating system | Windows 8 Pro |
Operating system installed | Windows 7 Professional |
Processor special features | |
Thermal Monitoring Technologies | Yes |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Processor package size | 37.5 x 37.5 x 4.7 mm |
Processor code | SR1HC |
Intel® InTru™ 3D Technology | Yes |
Intel® Smart Cache | Yes |
Intel® Secure Key | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® Insider™ | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
Intel® Clear Video HD Technology (Intel® CVT HD) | No |
Intel® AES New Instructions (Intel® AES-NI) | No |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | No |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 0.00 |
Intel TSX-NI | No |
Intel Trusted Execution Technology | No |
Intel Secure Key Technology version | 1.00 |
Intel Rapid Storage Technology | No |
Intel Identity Protection Technology version | 1.00 |
Intel Flex Memory Access | No |
Intel FDI Technology | No |
Intel Fast Memory Access | No |
Intel Enhanced Halt State | No |
Intel Dual Display Capable Technology | No |
Intel Demand Based Switching | No |
Intel Clear Video Technology | No |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Embedded options available | No |
CPU configuration (max) | 1 |
Conflict-Free processor | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Intel® Wireless Display (Intel® WiDi) | Yes |
Intel® Turbo Boost Technology | No |
Intel® My WiFi Technology (Intel® MWT) | No |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Anti-Theft Technology (Intel® AT) | Yes |
Processor ARK ID | 75104 |
Battery | |
Battery technology | Lithium-Ion (Li-Ion) |
Number of battery cells | 6 |
Battery life (max) | 11 h |
Battery capacity | 56 Wh |
Power | |
AC adapter power | 65 W |
AC adapter frequency | 50 - 60 Hz |
AC adapter input voltage | 100 - 240 V |
Security | |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Password protection type | HDD, Power on, Supervisor |
Fingerprint reader | Yes |
Cable lock slot | No |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | 5 - 43 °C |
Operating relative humidity (H-H) | 8 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 2438 m |
Sustainability | |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
Weight & dimensions | |
Width | 377 mm |
Depth | 247 mm |
Height (front) | 2.88 cm |
Height (rear) | 3.41 cm |
Weight | 2.54 kg |
Packaging data | |
Quick start guide | Yes |
Power cord included | Yes |
Manual | Yes |
AC adapter included | Yes |
Packaging content | |
Quick start guide | Yes |
Power cord included | Yes |
Manual | Yes |
AC adapter included | Yes |
Other features | |
On-board graphics card dynamic frequency (max) | 1100 MHz |
Maximum on-board graphics card memory | 2 GB |
Intel segment tagging | Home office, Small Business |
On-board graphics card | Yes |
AC adapter included | Yes |
Technical details | |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
