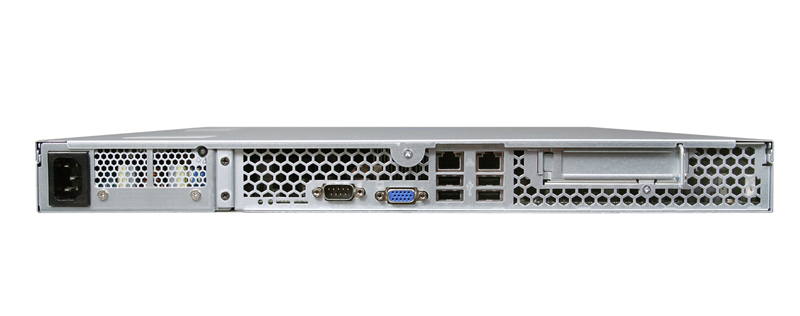

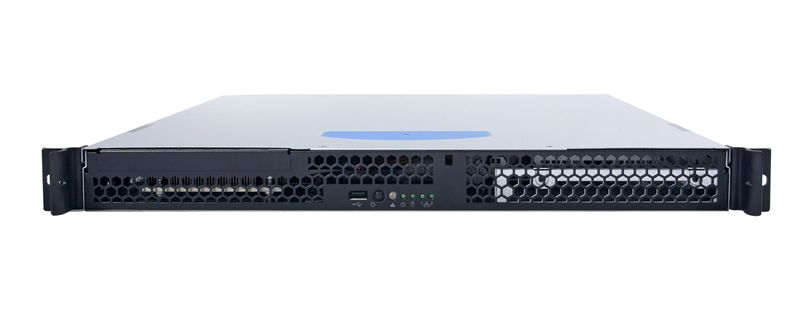

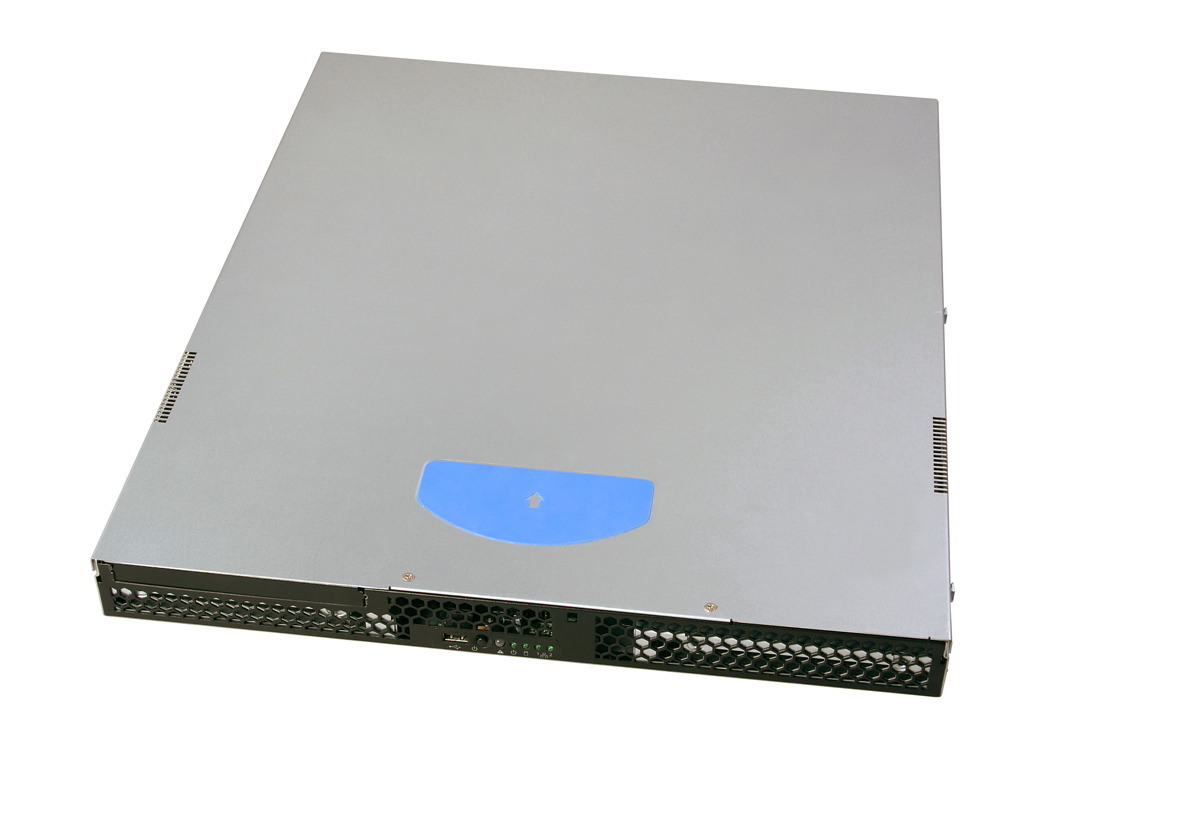

Intel SR1630BC server barebone Intel® 5500 LGA 1366 (Socket B) Rack (1U) Aluminium, Black
- Brand: Intel
- Category:
- SKU: SR1630BC
- EAN: 0735858208123
Server System SR1630BC
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
INTEGRATED SR1630BC |
SR1630BC |
Related Products
-
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules
-
Category: Memory Modules -
Category: Memory Modules
Description

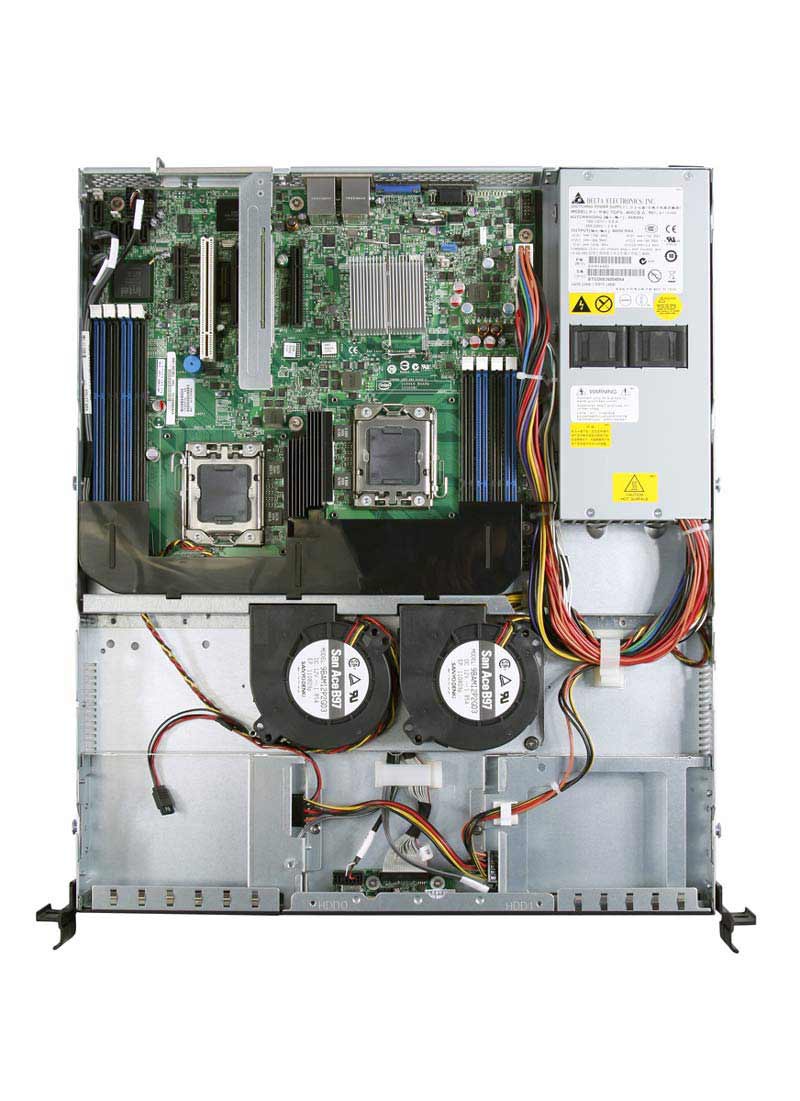

The 1U, Intel® Server System SR1630BC is ideal for space-constrained, high-density configurations featuring up to two Intel® Xeon® processors 5600 or 5500 series, eight DDR3 DIMM sockets, high-efficiency PSU, one low profile half-length PCI Express 2.0 x8 riser card, two fixed 3.5” SATA hard drives, and one optional slim-line optical drive.
Target applications
Small- and medium-sized business applications, including web servers, file and print servers, email servers, storage servers, and vertical-specific business applications. CPU-Frequency intensive HPC workloads (Life Science, Financial Service, Seismic Imaging).
Target applications
Small- and medium-sized business applications, including web servers, file and print servers, email servers, storage servers, and vertical-specific business applications. CPU-Frequency intensive HPC workloads (Life Science, Financial Service, Seismic Imaging).
Specifications
| Processor | |
|---|---|
| Processor socket | LGA 1366 (Socket B) |
| Processor family | Intel |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® 5500 |
| Supported processor frequency (max) | 2.93 GHz |
| Intel Xeon series | E5500, L5500, X5500 |
| Compatible processor series | Intel® Xeon® |
| Design | |
| Product family | Legacy server/storage/workstation system |
| Product series | Intel SR1000BC |
| Product codename | Bluff Creek |
| Product type | System |
| Redundant fans support | No |
| Heat sink included | No |
| Heat sink | 2 BXSTS100P (Not Included) |
| Product colour | Aluminium, Black |
| Chassis type | Rack (1U) |
| Memory | |
| Supported memory types | DDR3-SDRAM |
| Number of DIMM slots | 8 |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| Storage | |
| Storage drive sizes supported | 3.5" |
| Number of storage drives supported | 2 |
| Number of 3.5" bays | 2 |
| Performance | |
| Intel Remote Management Module Support | AXXRMM3 |
| Integrated BMC with IPMI | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 2.0 ports quantity | 5 |
| Serial ports quantity | 2 |
| Number of SATA connectors | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| Features | |
| Integrated BMC with IPMI | Yes |
| Market segment | Server |
| ARK ID | 48279 |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135162 |
| Technical details | |
| Product type | System |
| Packaging content | (1) Intel Server Board S5500BC; (2) Fixed drive brackets; (1) Cabled front panel; (2) Fixed cooling fans; (1 )Low-profile PCI Express riser; (1) Fixed 400W power supply; (1) USB cable; (1) Slim-line CD-ROM tray; (1) Basic rail kit; (1) Pair rack handles; (1) power cord |
| Number of 3.5" bays | 2 |
| Market segment | Server |
| ARK ID | 48279 |
| Supported RAID configuration | 6 SATA ports with Intel® Embedded Server RAID |
| Supported board | Intel Server Board S5500BC |
| Status | Discontinued |
| Redundant fans | No |
| Launch date | Q1'09 |
| Last change | 63903513 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q2'10 |
| 3.5" HDD support | Two fixed 3.5" SATA HDDs |
| Processor special features | |
| Intel Remote Management Module Support | AXXRMM3 |
| Power | |
| Redundant power supply (RPS) support | No |
| Power supply type | AC |
| Power supply | 400 W |
| Number of power supply units | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 430 mm |
| Weight | 10 kg |
| Height | 43 mm |
| Depth | 508 mm |
| Packaging data | |
| Packaging content | (1) Intel Server Board S5500BC; (2) Fixed drive brackets; (1) Cabled front panel; (2) Fixed cooling fans; (1 )Low-profile PCI Express riser; (1) Fixed 400W power supply; (1) USB cable; (1) Slim-line CD-ROM tray; (1) Basic rail kit; (1) Pair rack handles; (1) power cord |
| Other features | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| CPU configuration (max) | 2 |
| Product family | Legacy server/storage/workstation system |
| Product series | Intel SR1000BC |
| Product codename | Bluff Creek |
| Product type | System |
| Supported RAID configuration | 6 SATA ports with Intel® Embedded Server RAID |
| Supported board | Intel Server Board S5500BC |
| Status | Discontinued |
| Redundant fans | No |
| Launch date | Q1'09 |
| Last change | 63903513 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q2'10 |
| 3.5" HDD support | Two fixed 3.5" SATA HDDs |
