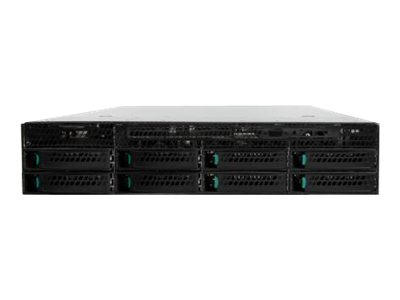

Intel R2308IP4LHPC server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) Black

Intel R2308IP4LHPC server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) Black

  • Brand: Intel
  • Category:
  • SKU: R2308IP4LHPC
  • EAN: 0675901143530 0735858239189 50 ...8239189 5032037033954 0675900002609 7358582391898more
Server System R2308IP4LHPC

Trade Prices

Distributor Product SKU Stock Updated Price
EET

Server System R2308IP4LHPC IP

R2308IP4LHPC Register free see stock

Related Products

Description

Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Specifications

Processor
Processor socketLGA 2011 (Socket R)
Processor familyIntel
Number of processors supported2
Motherboard chipsetIntel® C602
Supported processor frequency (max)3 GHz
Intel Xeon seriesE5-2600
Compatible processor seriesIntel® Xeon® E5 Family
Processor manufacturerIntel
Maximum internal memory supported by processor512 GB
Design
Product family2U server system
Product seriesIntel R2000IP
Product codenameIron Pass
Product typeSystem
Redundant fans supportYes
Rack-Friendly boardYes
Rack railsYes
Heat sink includedYes
Heat sink2
Product colourBlack
Chassis typeRack (2U)
Memory
Supported UDIMM clock speeds1333 MHz
Supported RDIMM clock speeds1333,1600 MHz
Supported memory typesDDR3-SDRAM
Number of DIMM slots16
Memory form factor240-pin DIMM
Maximum UDIMM memory12 GB
Maximum RDIMM memory12 GB
Maximum internal memory512 GB
ECCYes
Storage
RAID levels0, 1, 10
Hot-swap HDD baysYes
Embedded USB (eUSB) SSD optionYes
Supported storage drive interfacesSerial Attached SCSI (SAS), Serial ATA, Serial ATA II
Storage drive sizes supported2.5,3.5"
Number of storage drives supported8
Number of 3.5" bays8
Number of 2.5" bays8
Performance
Intel Rapid Storage Technology enterpriseYes
Intel Rapid Storage TechnologyYes
Intel® Matrix Storage Technology (Intel® MST)Yes
Internal I/O Expansion Module x8 Gen 31
Trusted Platform Module (TPM) version1.2
Trusted Platform Module (TPM)Yes
On-site supportYes
Intel Server Customization TechnologyYes
Intel Remote Management Module SupportYes
Intel Quiet Thermal TechnologyYes
Intel On-Demand Power Redundancy TechnologyYes
Intel Intelligent Power Node ManagerYes
Intel Efficient Power TechnologyNo
Intel Build Assurance TechnologyYes
Intel Advanced Management TechnologyYes
Integrated BMC with IPMIYes
Backplanes supportYes
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ports & interfaces
USB 2.0 ports quantity5
Serial ports quantity2
Number of SATA connectors10
InfiniBandNo
Ethernet LAN (RJ-45) ports4
USB ports quantity5
Number of SAS ports8
Expansion slots
PCI Express x8 slots2
PCI Express x4 slots1
PCI Express x16 slots4
PCI Express slots version2.0, 3.0
PCI Express x8 (Gen 3.x) slots3
PCI Express x4 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots4
Features
Trusted Platform Module (TPM) version1.2
Trusted Platform Module (TPM)Yes
On-site supportYes
Integrated BMC with IPMIYes
Backplanes supportYes
Market segmentServer
ARK ID63160
Harmonized System (HS) code8473305100
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G145323
Intel Node ManagerYes
BackplanesIncluded
Technical details
USB ports quantity5
Product typeSystem
Packaging content(1) Intel Server Board S2600IP4, (8) 3.5" Hot-swap drive carriers, (1) Backplane, (2) 750W Redundant power supplyies, Redundant cooling fans, (2) Passive CPU heat sink, (1) Air duct, (1) Intel RAID C600 Upgrade Key RKSATA8, (1) Intel Remote Management Module 4, (1) Value rail kit
Number of 3.5" bays8
Number of 2.5" bays8
Maximum internal memory supported by processor512 GB
Market segmentServer
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Server Management SoftwareYes
Connector for Intel I/O Expansion Module x8 Gen 31
ARK ID63160
Target marketStorage
Supported RAID configurationSoftware RAID 1,0,10 optional 5
Supported boardIntel Server Board S2600IP4
StatusDiscontinued
Redundant fansYes
Optical drive supportedYes
Maximum memory512 GB
Launch dateQ1'12
Last change63903513
FireWire supportYes
Extended warranty available for purchase (select countries)Yes
Expected discontinuance dateQ2'15
Chassis dimensions430 x 709.9 x 87.4 mm (16.9 x 27.9 x 3.44")
Additional information URLhttp://www.intel.com/content/www/us/en/server-systems/server-board-s2600ip-systems.html
3.5" HDD supportSupports up to 8 hot-swap 2.5" or 3.5" drives
2.5" HDD supportSupports up to 8 hot-swap 2.5" or 3.5" drives
Processor special features
Intel Rapid Storage Technology enterpriseYes
Intel Rapid Storage TechnologyYes
Intel® Matrix Storage Technology (Intel® MST)Yes
Internal I/O Expansion Module x8 Gen 31
Intel Server Customization TechnologyYes
Intel Remote Management Module SupportYes
Intel Quiet Thermal TechnologyYes
Intel On-Demand Power Redundancy TechnologyYes
Intel Intelligent Power Node ManagerYes
Intel Efficient Power TechnologyNo
Intel Build Assurance TechnologyYes
Intel Advanced Management TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Server Management SoftwareYes
Connector for Intel I/O Expansion Module x8 Gen 31
Power
Redundant power supply (RPS) supportYes
Power supply typeAC
Power supply750 W
Number of power supply units2
Weight & dimensions
Width430 mm
Height709.9 mm
Depth87.3 mm
Packaging data
Bundled softwareIntel Server Management Software
Packaging content(1) Intel Server Board S2600IP4, (8) 3.5" Hot-swap drive carriers, (1) Backplane, (2) 750W Redundant power supplyies, Redundant cooling fans, (2) Passive CPU heat sink, (1) Air duct, (1) Intel RAID C600 Upgrade Key RKSATA8, (1) Intel Remote Management Module 4, (1) Value rail kit
Other features
On-board graphics cardYes
CPU configuration (max)2
Product family2U server system
Product seriesIntel R2000IP
Product codenameIron Pass
Product typeSystem
Target marketStorage
Supported RAID configurationSoftware RAID 1,0,10 optional 5
Supported boardIntel Server Board S2600IP4
StatusDiscontinued
Redundant fansYes
Optical drive supportedYes
Maximum memory512 GB
Launch dateQ1'12
Last change63903513
FireWire supportYes
Extended warranty available for purchase (select countries)Yes
Expected discontinuance dateQ2'15
Chassis dimensions430 x 709.9 x 87.4 mm (16.9 x 27.9 x 3.44")
Additional information URLhttp://www.intel.com/content/www/us/en/server-systems/server-board-s2600ip-systems.html
3.5" HDD supportSupports up to 8 hot-swap 2.5" or 3.5" drives
2.5" HDD supportSupports up to 8 hot-swap 2.5" or 3.5" drives
Packaging content
Bundled softwareIntel Server Management Software
