Back in 1968, two scientists, Robert Noyce and Gordon Moore, founded Intel with a vision for semiconductor memory products. By 1971, they had introduced the world’s first microprocessor. Since then, Intel has established a heritage of innovation that continues to expand the reach and promise of computing while advancing the ways people work and live worldwide.
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | No |
| Processor code | SL8SV |
| Physical Address Extension (PAE) | 32 bit |
| Memory types supported by processor | DDR3-SDRAM |
| Idle States | Yes |
| ECC supported by processor | No |
| Bus type | FSB |
| Conflict-Free processor | No |
| Supported processor sockets | LGA 2011 (Socket R) |
| Processor socket | LGA 2011 (Socket R) |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C602 |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Remote Management Module Support | Yes |
| Compatible processor series | Intel® Xeon® E5 Family |
| Processor family | Intel® Xeon® |
| Memory | |
| Memory slots | 24 |
| Maximum internal memory | 768 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Storage | |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | No |
| Number of HDDs supported | 24 |
| Hot-swap | Yes |
| HDD size | 2.5" |
| Embedded USB (eUSB) SSD option | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Total number of SATA connectors | 10 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 2 |
| InfiniBand | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 2 |
| Design | |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Product family | 2U Rack Server Chassis |
| Product series | Intel R2000GZ |
| Product codename | Grizzly Pass |
| Supported board | Intel S2600GZ |
| Performance | |
| Intel Server Customization Technology | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Backplanes support | Included |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Operating system installed | No |
| Integrated BMC with IPMI | Yes |
| Market segment | Server |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel® InTru™ 3D Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Dual Display Capable Technology | No |
| Intel Clear Video Technology | No |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel Rapid Storage Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| CPU configuration (max) | 2 |
| Power | |
| Power supply type | AC |
| Number of power supply units | 2 |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Weight & dimensions | |
| Width | 430 mm |
| Height | 87.4 mm |
| Depth | 710 mm |
| Packaging content | |
| Packaging content | (1) Intel Server Board S2600GZ4, (24) 2.5” Hot-swap drive carriers, (3) Backplanes, (2) 750W Redundant power supplies, (2) Passive CPU heat sinks, Redundant and hot-swap cooling fans, (1) Air duct, (1) Control panel on rack handle, Support for 2 x 2.5” SSD mounting on Air duct, (2) Risers with 3 PCIe x8 slots on each (2 x FHFL, 1 x FHHL), (1) Intel Remote Management Module 4, (1) Value rail kit, (6) SFF8087 to SFF8087 cables |
| Heat sink included | Yes |
| Features | |
| Intel Node Manager | Yes |
| Technical details | |
| USB ports quantity | 4 |
| Product type | System |
| Packaging content | (1) Intel Server Board S2600GZ4, (24) 2.5” Hot-swap drive carriers, (3) Backplanes, (2) 750W Redundant power supplies, (2) Passive CPU heat sinks, Redundant and hot-swap cooling fans, (1) Air duct, (1) Control panel on rack handle, Support for 2 x 2.5” SSD mounting on Air duct, (2) Risers with 3 PCIe x8 slots on each (2 x FHFL, 1 x FHHL), (1) Intel Remote Management Module 4, (1) Value rail kit, (6) SFF8087 to SFF8087 cables |
| Number of storage drives supported | 24 |
| Number of 2.5" bays | 24 |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Integrated LAN | 4x 1GbE |
| Backplanes support | Included |
| Target market | Cloud/Datacenter |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Status | Discontinued |
| Redundant fans | Yes |

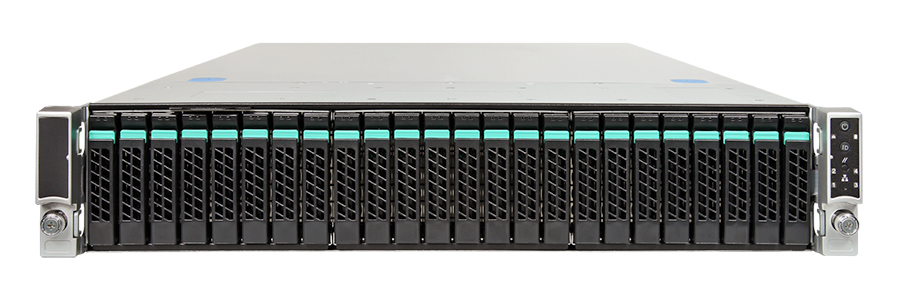

| Product name | Intel Server System R2224GZ4GC4 |
| Optical drive supported | No |
| Maximum memory | 768 GB |
| Market segment | Server |
| Launch date | Q2'12 |
| FireWire support | Yes |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q2'17 |
| Chassis dimensions | 430 x 709.9 x 87.4 mm (16.9 x 27.9 x 3.44") |
| Born on date | Q2'12 |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-board-s2600gz-gl-systems.html |
| 2.5" HDD support | Supports up to 24 hot-swap 2.5" drives |
| ARK ID | 67309 |
| Backplanes | Included |
| Other features | |
| Integrated LAN | 4x 1GbE |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Heat sink | 2 |
| Supported memory types | DDR3-SDRAM |
| Rack-Friendly board | Yes |
| Number of SATA connectors | 10 |
| Number of processors supported | 2 |
| Number of DIMM slots | 24 |
| Integrated BMC with IPMI | Yes |
| Form factor | Custom 16.5" x 16.5" |
| Embedded USB (eUSB) SSD option | Yes |
| Market segment | Server |
| ARK ID | 67309 |
