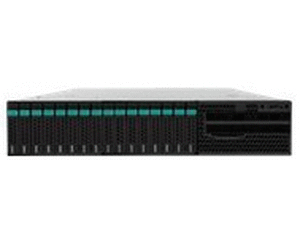

Server Chassis R2216BB4GC BBP |
R2216BB4GC |
Related Products
-
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules
-
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules
-
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules -
Category: Memory Modules
-
Category: Memory Modules
Description
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Specifications
| Processor | |
|---|---|
| Processor socket | LGA 1356 (Socket B2) |
| Processor family | Intel |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C602 |
| Supported processor frequency (max) | 24 GHz |
| Intel Xeon series | E5-2400 |
| Compatible processor series | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 384 GB |
| Design | |
| Product family | 2U server system |
| Product series | Intel R2000BB |
| Product codename | Black Bear Pass |
| Product type | System |
| Redundant fans support | Yes |
| Rack-Friendly board | Yes |
| Rack rails | Yes |
| Heat sink included | Yes |
| Heat sink | 2 |
| Product colour | Black, Grey |
| Chassis type | Rack (2U) |
| Memory | |
| Supported UDIMM clock speeds | 1333 MHz |
| Supported RDIMM clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
| Number of DIMM slots | 12 |
| Memory form factor | 240-pin DIMM |
| Maximum UDIMM memory | 384 GB |
| Maximum RDIMM memory | 384 GB |
| Maximum internal memory | 384 GB |
| ECC | Yes |
| Storage | |
| RAID levels | 0, 1, 10 |
| Hot-swap HDD bays | Yes |
| Embedded USB (eUSB) SSD option | Yes |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA |
| Storage drive sizes supported | 2.5" |
| Number of storage drives supported | 16 |
| Number of 2.5" bays | 16 |
| Performance | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| On-site support | Yes |
| Intel Server Customization Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Integrated BMC with IPMI | Yes |
| Backplanes support | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 2.0 ports quantity | 7 |
| Serial ports quantity | 2 |
| Number of SATA connectors | 10 |
| InfiniBand | No |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 7 |
| Number of SAS ports | 16 |
| Expansion slots | |
| PCI Express x8 slots | 6 |
| PCI Express x4 slots | 2 |
| PCI Express slots version | 3.0 |
| PCI Express x8 (Gen 3.x) slots | 4 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Features | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| On-site support | Yes |
| Integrated BMC with IPMI | Yes |
| Backplanes support | Yes |
| Market segment | Server |
| ARK ID | 61373 |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Intel Node Manager | Yes |
| Backplanes | Included |
| Technical details | |
| USB ports quantity | 7 |
| Product type | System |
| Packaging content | (1) Intel Server Board S2400BB4 with 12 DIMM support in 2U chassis (1) Standard control panel (1) Front 1 x VGA and 2 x USB on dedicated tray (1) Provision for 2 SSD mount on Air duct (16) 2.5” Hot-swap drive carriers (6) SFF8087 to SFF8087 cables (2) CPU heat sinks (5) Redundant and hot-swap cooling fans (2) risers with 3 x 8 slots (2 x FHFL, 1 x FHHL) (1) Intel RAID C600 Upgrade Key RKSAS8 installed (enables 8 ports SATA), (1) 24 port Intel RAID Expander RES2CV240 integrated (2) 750W AC power supply (FXX750PCRPS) (1) Full Intel Remote Management Module AXXRMM4 (key and NIC) preinstalled (1) Value Rail AXXELVRAIL kit. |
| Number of 2.5" bays | 16 |
| Maximum internal memory supported by processor | 384 GB |
| Market segment | Server |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Intel Local Control Panel Upgrade Support | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| ARK ID | 61373 |
| Target market | Cloud/Datacenter |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Supported board | Intel Server Board S2400BB4 |
| Status | Discontinued |
| Redundant fans | Yes |
| Optical drive supported | Yes |
| Maximum memory | 384 GB |
| Launch date | Q3'12 |
| Last change | 63903513 |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q1'13 |
| Chassis dimensions | 436.9 x 628.6 x 88.9 mm (17.2 x 24.8 x 3.5") |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-system-r2200bb.html |
| 2.5" HDD support | Supports up to 16 hot-swap 2.5" drives |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Intel Local Control Panel Upgrade Support | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Power supply | 750 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 436.9 mm |
| Height | 628.6 mm |
| Depth | 88.9 mm |
| Packaging data | |
| Packaging content | (1) Intel Server Board S2400BB4 with 12 DIMM support in 2U chassis (1) Standard control panel (1) Front 1 x VGA and 2 x USB on dedicated tray (1) Provision for 2 SSD mount on Air duct (16) 2.5” Hot-swap drive carriers (6) SFF8087 to SFF8087 cables (2) CPU heat sinks (5) Redundant and hot-swap cooling fans (2) risers with 3 x 8 slots (2 x FHFL, 1 x FHHL) (1) Intel RAID C600 Upgrade Key RKSAS8 installed (enables 8 ports SATA), (1) 24 port Intel RAID Expander RES2CV240 integrated (2) 750W AC power supply (FXX750PCRPS) (1) Full Intel Remote Management Module AXXRMM4 (key and NIC) preinstalled (1) Value Rail AXXELVRAIL kit. |
| Other features | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| CPU configuration (max) | 2 |
| Product family | 2U server system |
| Product series | Intel R2000BB |
| Product codename | Black Bear Pass |
| Product type | System |
| Target market | Cloud/Datacenter |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Supported board | Intel Server Board S2400BB4 |
| Status | Discontinued |
| Redundant fans | Yes |
| Optical drive supported | Yes |
| Maximum memory | 384 GB |
| Launch date | Q3'12 |
| Last change | 63903513 |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q1'13 |
| Chassis dimensions | 436.9 x 628.6 x 88.9 mm (17.2 x 24.8 x 3.5") |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-system-r2200bb.html |
| 2.5" HDD support | Supports up to 16 hot-swap 2.5" drives |
