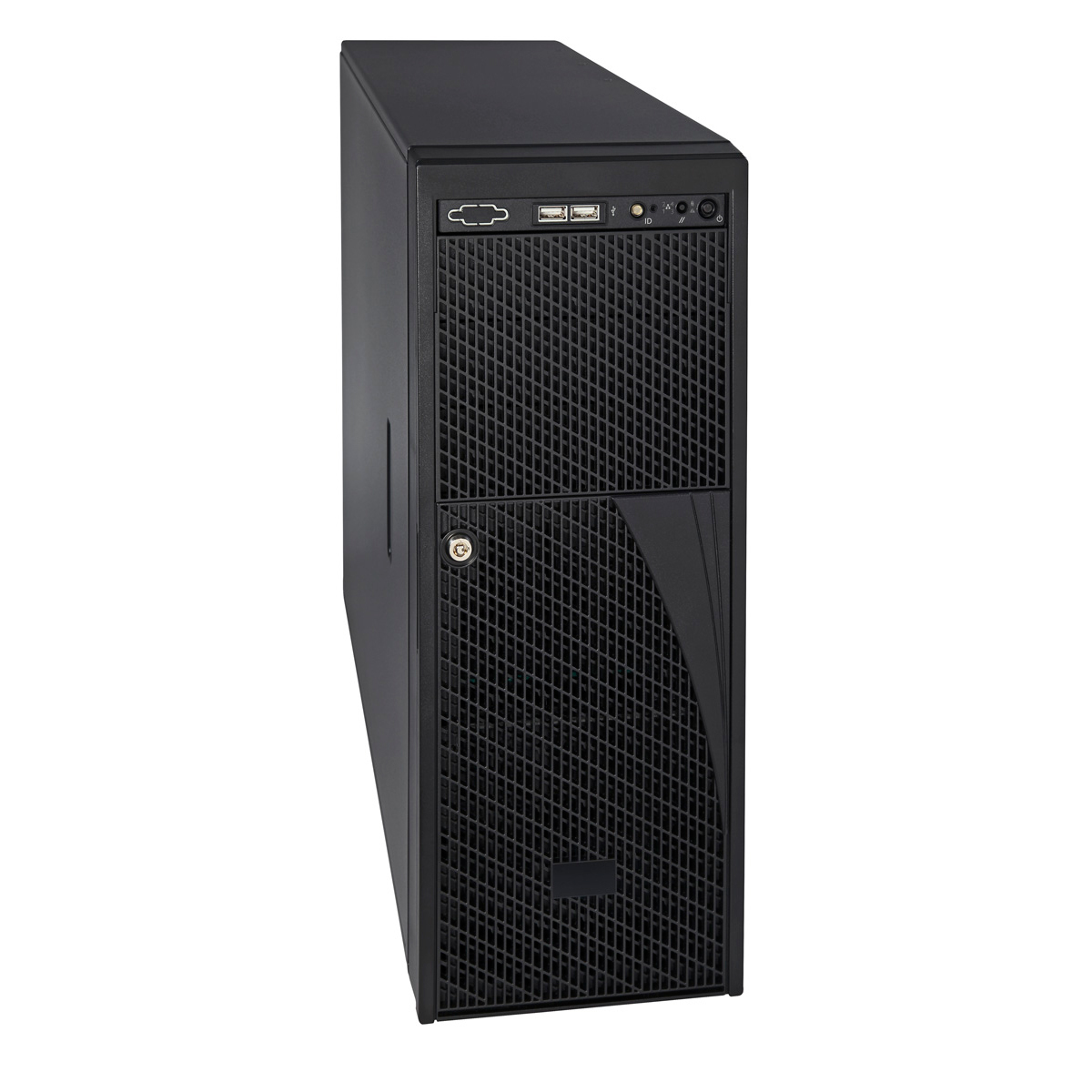

Intel P4308RPLSHDR server barebone Intel® C226 LGA 1150 (Socket H3) Rack (4U) Black
- Brand: Intel
- Category:
- SKU: P4308RPLSHDR
- EAN: 0675901218399 5052916813965 50 ...6813965 5032037053617 0735858266932 0675901334228 0675901270168 7358582669324more
Server System P4308RPLSHDR, 4U Pedestal, 2 x redundant PSU 460W, 8 x 3.5/2.5" SAS/SATA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SERVER SYSTEM P4308RPLSHDR |
P4308RPLSHDR |
Related Products
-
Category: Memory Modules -
Category: Memory Modules
Description
Cost-effective, 1U rack-optimized and 4U pedestal systems with 2.5-in. or 3.5-in. fixed or hot-swap HDDs for small- and medium-sized business (SMB).
- Intel® Server Board S1200V3RPO or Intel® Server Board S1200V3RPS.
- Supports one Intel® Xeon® processor E3 v3 product family.
- Options to support up to four fixed hard drives; as well as options supporting eight 2.5-in. or 3.5-in. hot-swap hard drives.
- Four memory sockets supporting DDR3 ECC UDIMM 1600, 32 GB maximum memory.
- SKU options for one 350W fixed power supply, two 450W redundant power supplies, or two 460W redundant power supplies.
- Six SATA ports.
- Supports slots at PCIe Gen 3 speeds and Intel® I/O Expansion Module.
- Dual gigabit ethernet with Intel® Virtualization Technology (Intel® VT).
The Intel Server Board S1200V3RP–based systems offers a cost-effective, one-socket Intel Xeon processor E3 v3 product family solution with simple setup and deployment, real server performance, storage expandability, and a solid upgrade path make it an ideal first server for small- and medium-sized businesses (SMB).
- Intel® Server Board S1200V3RPO or Intel® Server Board S1200V3RPS.
- Supports one Intel® Xeon® processor E3 v3 product family.
- Options to support up to four fixed hard drives; as well as options supporting eight 2.5-in. or 3.5-in. hot-swap hard drives.
- Four memory sockets supporting DDR3 ECC UDIMM 1600, 32 GB maximum memory.
- SKU options for one 350W fixed power supply, two 450W redundant power supplies, or two 460W redundant power supplies.
- Six SATA ports.
- Supports slots at PCIe Gen 3 speeds and Intel® I/O Expansion Module.
- Dual gigabit ethernet with Intel® Virtualization Technology (Intel® VT).
The Intel Server Board S1200V3RP–based systems offers a cost-effective, one-socket Intel Xeon processor E3 v3 product family solution with simple setup and deployment, real server performance, storage expandability, and a solid upgrade path make it an ideal first server for small- and medium-sized businesses (SMB).
Specifications
| Processor | |
|---|---|
| Processor socket | LGA 1150 (Socket H3) |
| Processor family | Intel |
| Number of processors supported | 1 |
| Motherboard chipset | Intel® C226 |
| Intel Xeon series | E3-1200 |
| Compatible processor series | Intel® Xeon® E3 Family |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 32 GB |
| Motherboard form factor | micro ATX |
| Design | |
| Product family | 4U pedestal (rackable) server system |
| Product series | Intel P4000RP |
| Product codename | Rainbow Pass |
| Product type | System |
| Redundant fans support | No |
| Rack-Friendly board | Yes |
| Rack rails | No |
| Heat sink included | Yes |
| Product colour | Black |
| Chassis type | Rack (4U) |
| Memory | |
| Supported UDIMM clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| Number of DIMM slots | 4 |
| Memory form factor | 240-pin DIMM |
| Maximum UDIMM memory | 32 GB |
| Maximum internal memory | 32 GB |
| ECC | Yes |
| Storage | |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap HDD bays | Yes |
| Embedded USB (eUSB) SSD option | Yes |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 8 |
| Number of 3.5" bays | 8 |
| Number of 2.5" bays | 8 |
| Performance | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Intel Server Customization Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet Thermal Technology | No |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Efficient Power Technology | No |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Integrated BMC with IPMI | Yes |
| Network | |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 2.0 ports quantity | 6 |
| Serial ports quantity | 1 |
| Number of SATA connectors | 6 |
| InfiniBand | No |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 6 |
| Expansion slots | |
| PCI Express x8 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| Features | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Integrated BMC with IPMI | Yes |
| Market segment | Server |
| ARK ID | 71392 |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Intel Node Manager | Yes |
| Backplanes | Included |
| Technical details | |
| USB ports quantity | 6 |
| Product type | System |
| Packaging content | (1) Intel Server Board S1200V3RPL, (8) 3.5" Hot-swap drive carriers, (1) Backplane, (2) 460W Redundant power supplies, (4) SATA cables |
| Number of 3.5" bays | 8 |
| Number of 2.5" bays | 8 |
| Maximum internal memory supported by processor | 32 GB |
| Market segment | Server |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| ARK ID | 71392 |
| Target market | Small and Medium Business |
| Supported RAID configuration | Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
| Supported board | Intel Server Board S1200V3RPL |
| Status | Discontinued |
| Redundant fans | No |
| Optical drive supported | Yes |
| Maximum memory | 32 GB |
| Launch date | Q2'13 |
| Last change | 63903513 |
| Images Type Map |   |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q4'16 |
| Chassis dimensions | 437.9 x 546.1 x 173 mm (17.2 x 21.5 x 6.81") |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-board-s1200v3rp-systems.html |
| 3.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
| 2.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet Thermal Technology | No |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Efficient Power Technology | No |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Server Management Software | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Power | |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Power supply | 460 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 437.9 mm |
| Height | 172 mm |
| Depth | 546.1 mm |
| Packaging data | |
| Packaging content | (1) Intel Server Board S1200V3RPL, (8) 3.5" Hot-swap drive carriers, (1) Backplane, (2) 460W Redundant power supplies, (4) SATA cables |
| Other features | |
| On-board graphics card | Yes |
| CPU configuration (max) | 1 |
| Product family | 4U pedestal (rackable) server system |
| Product series | Intel P4000RP |
| Product codename | Rainbow Pass |
| Product type | System |
| Target market | Small and Medium Business |
| Supported RAID configuration | Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
| Supported board | Intel Server Board S1200V3RPL |
| Status | Discontinued |
| Redundant fans | No |
| Optical drive supported | Yes |
| Maximum memory | 32 GB |
| Launch date | Q2'13 |
| Last change | 63903513 |
| Images Type Map | |
| FireWire support | No |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q4'16 |
| Chassis dimensions | 437.9 x 546.1 x 173 mm (17.2 x 21.5 x 6.81") |
| Additional information URL | http://www.intel.com/content/www/us/en/server-systems/server-board-s1200v3rp-systems.html |
| 3.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
| 2.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
