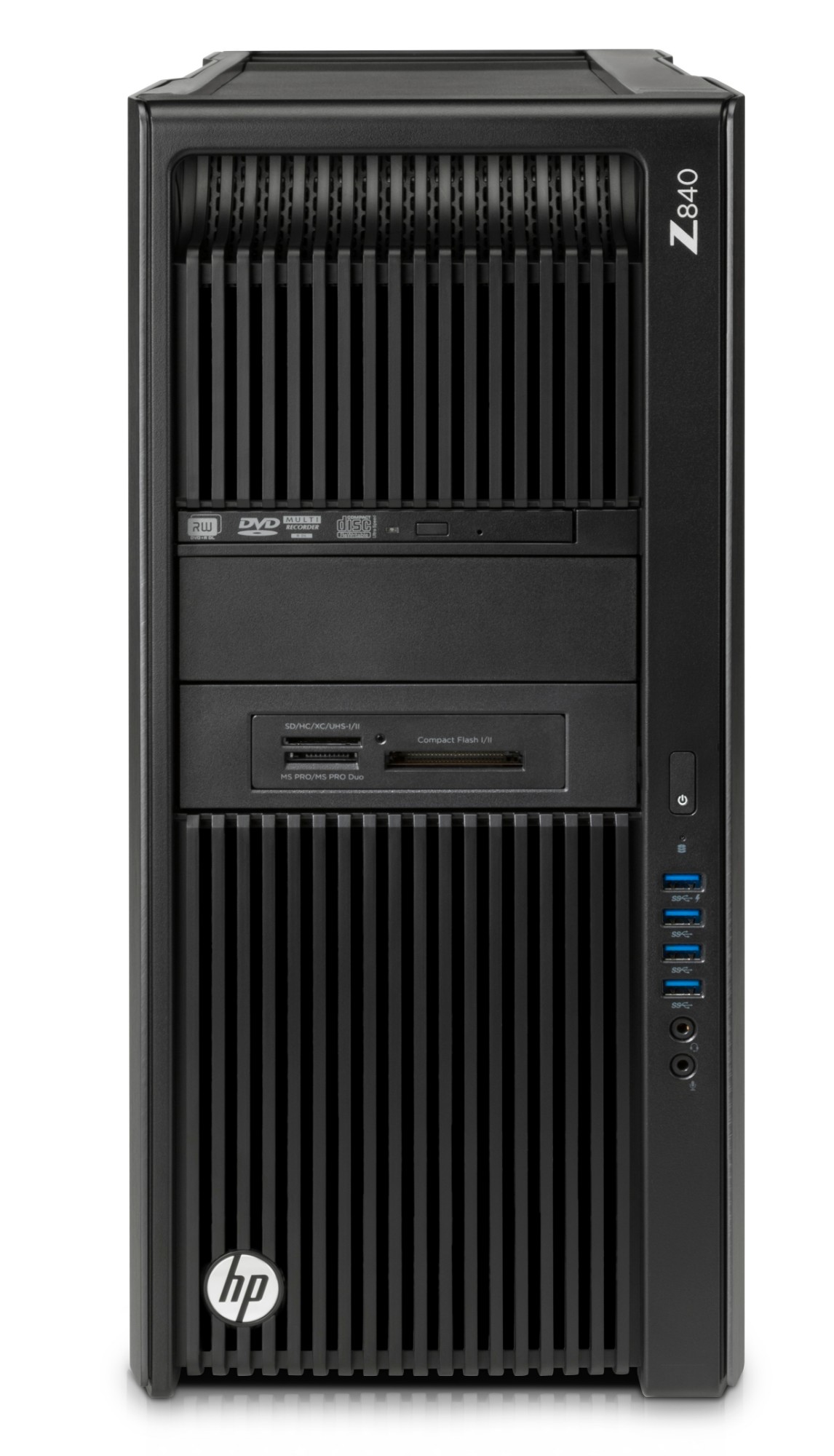

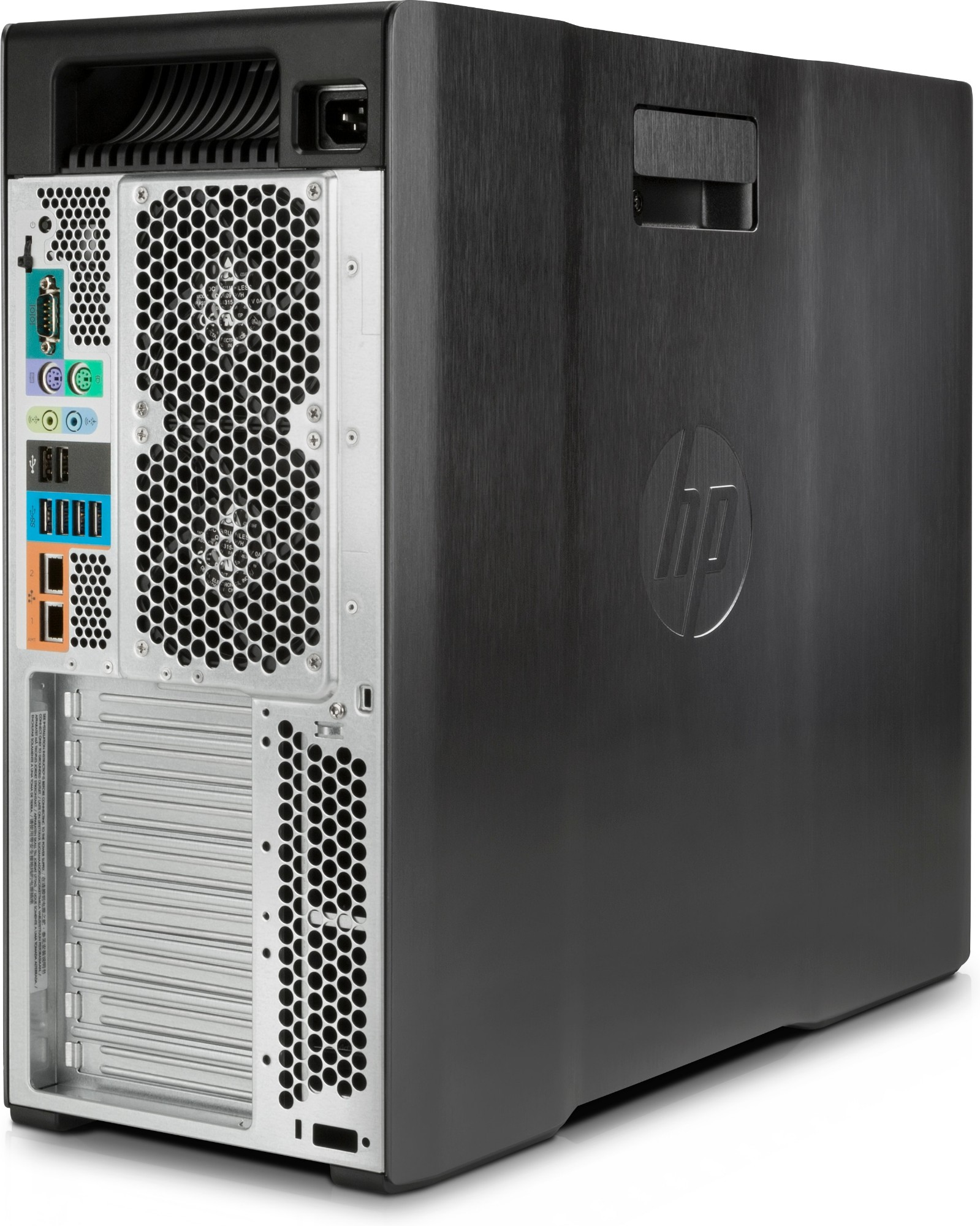

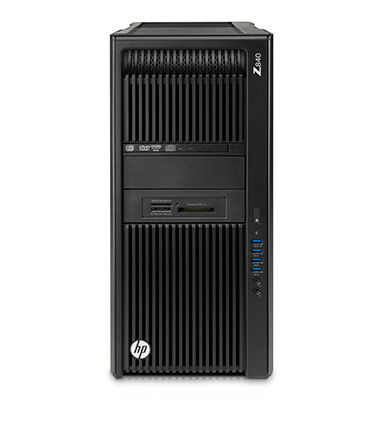

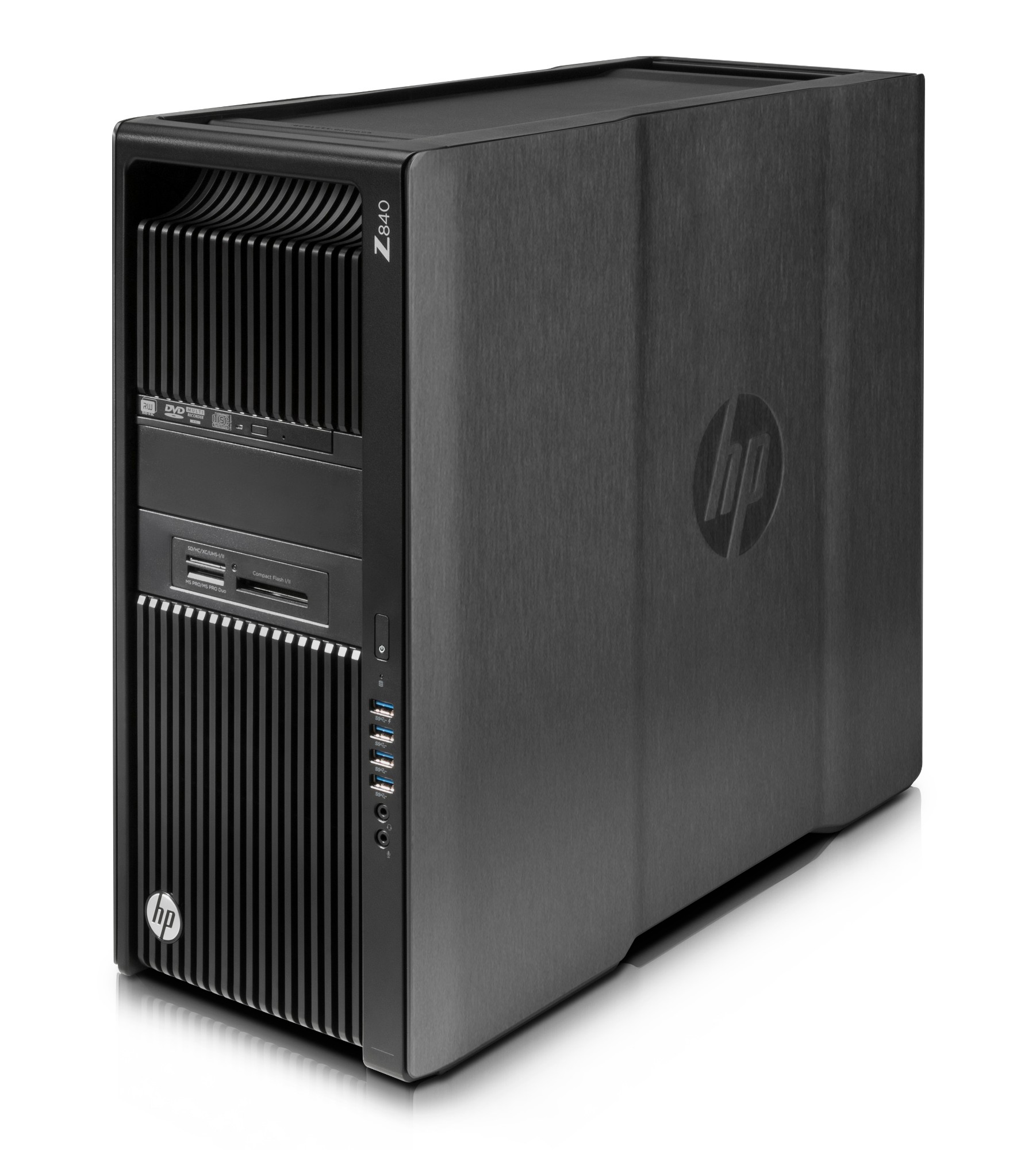

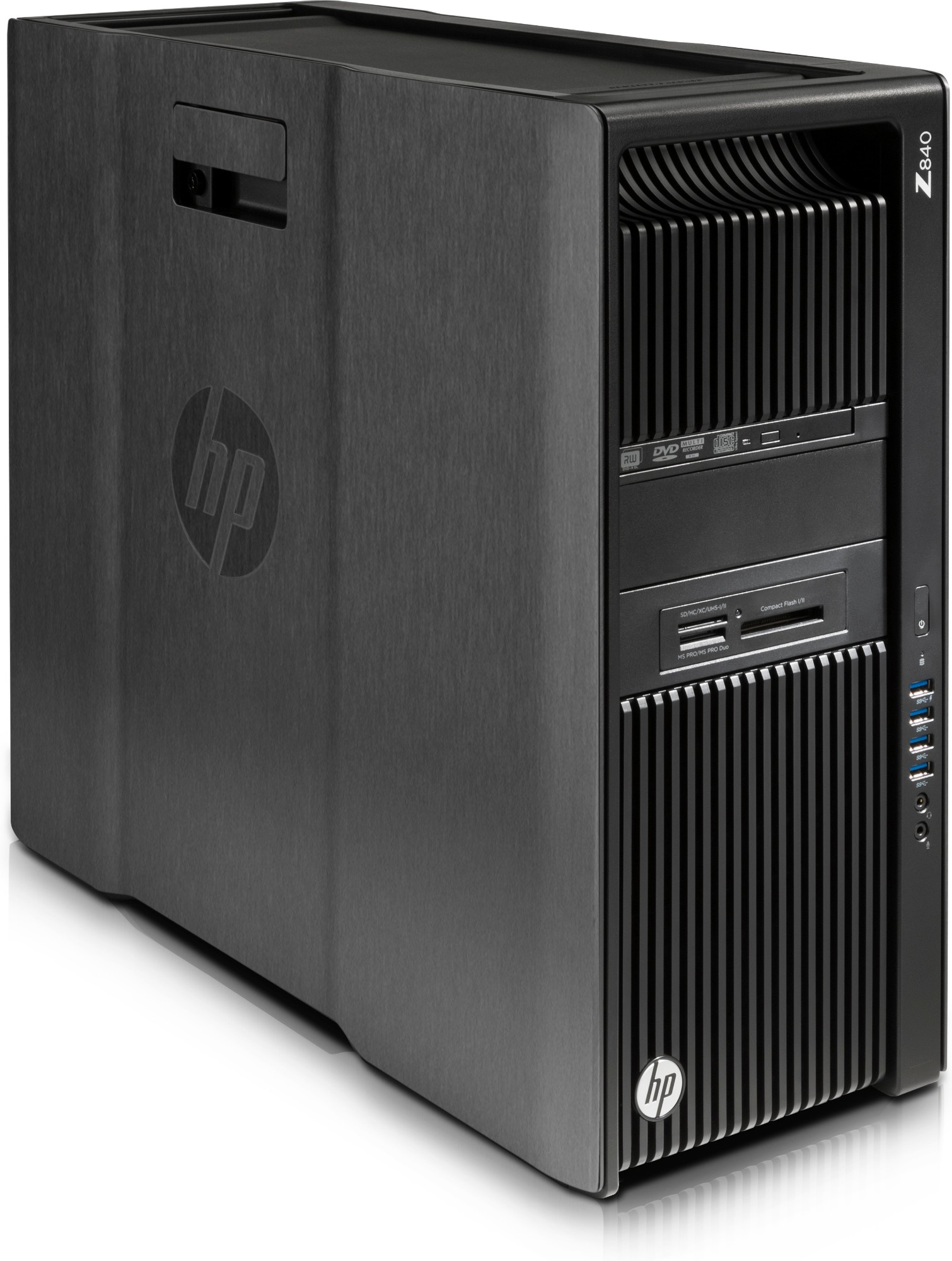

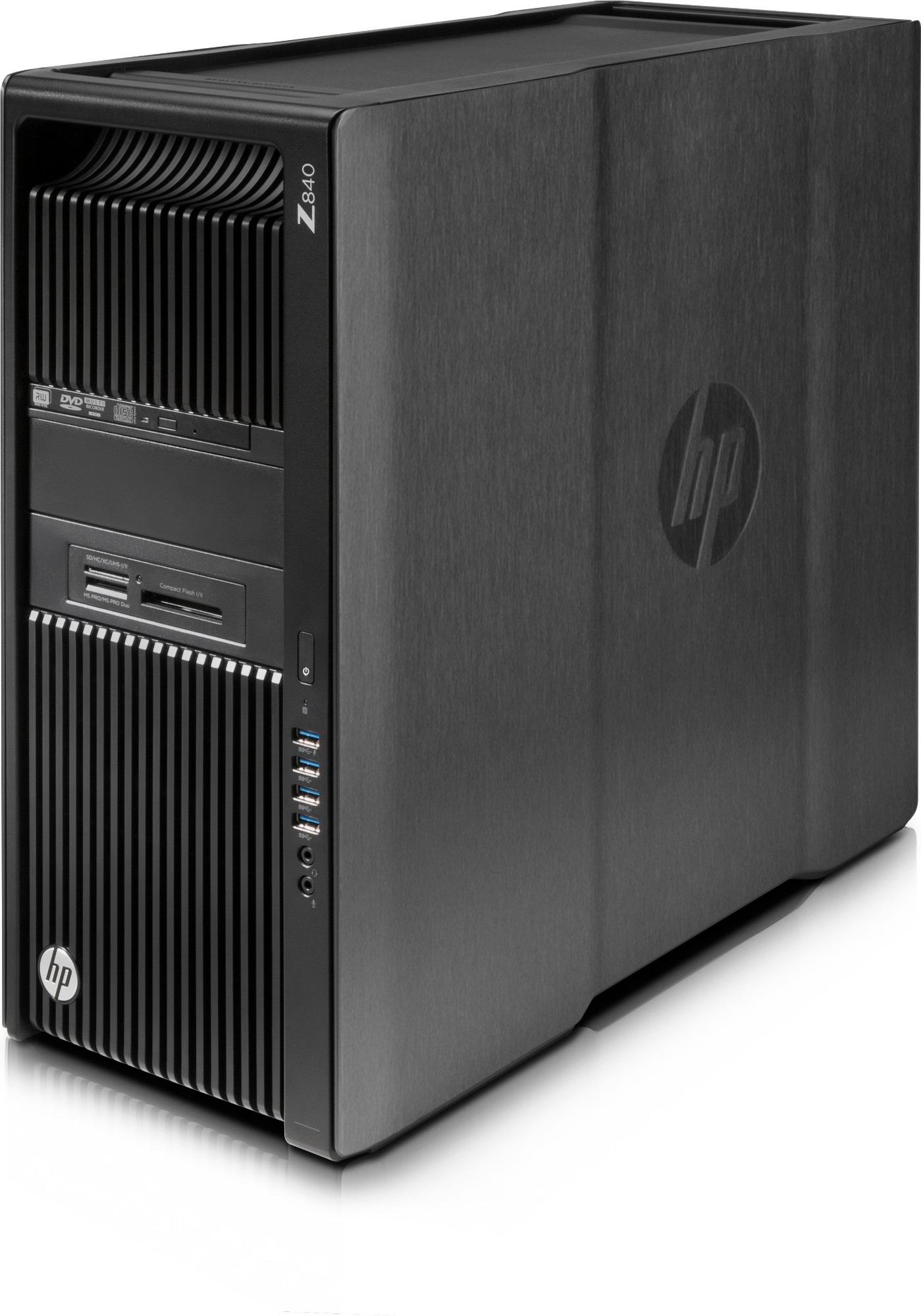

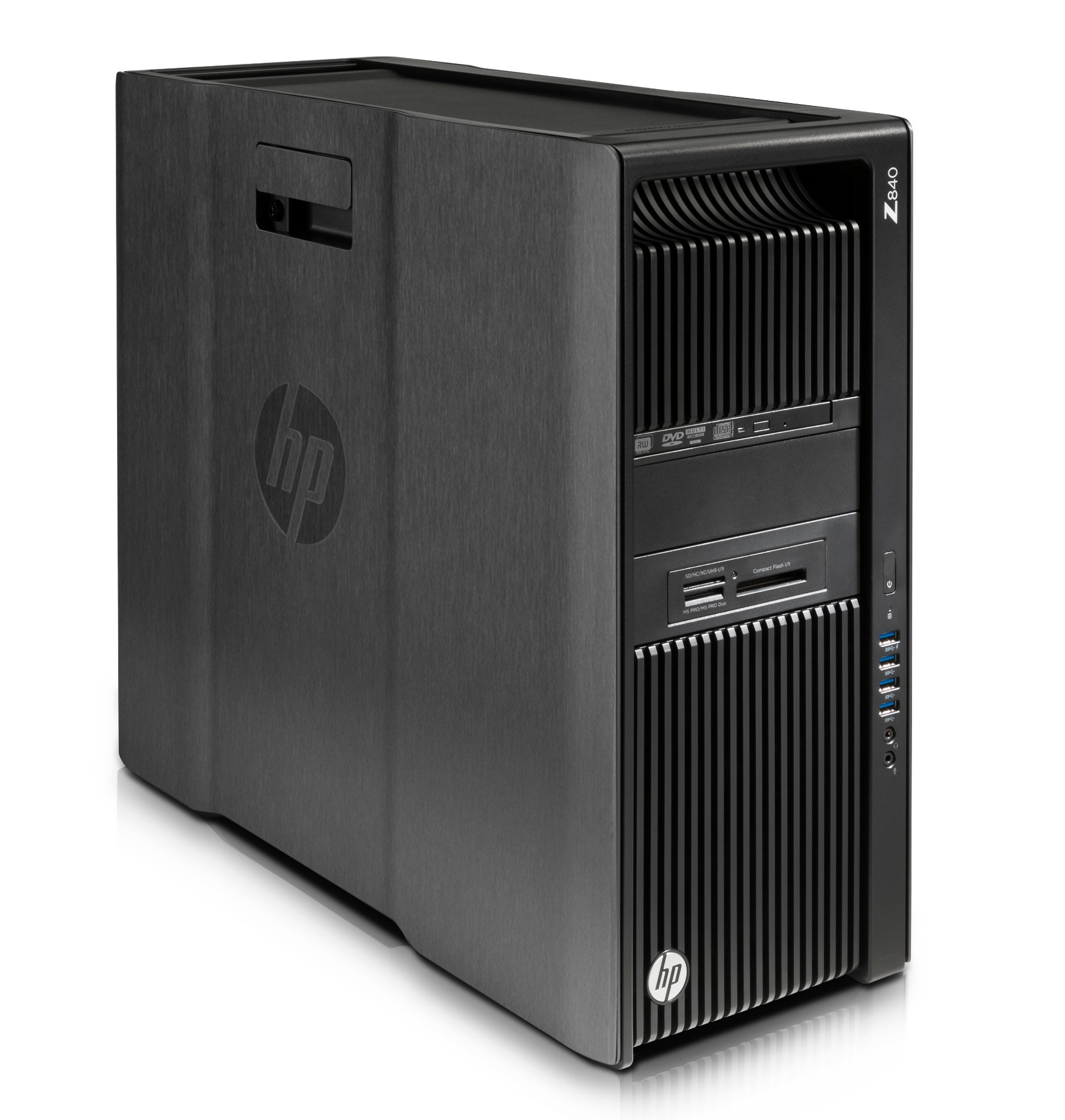

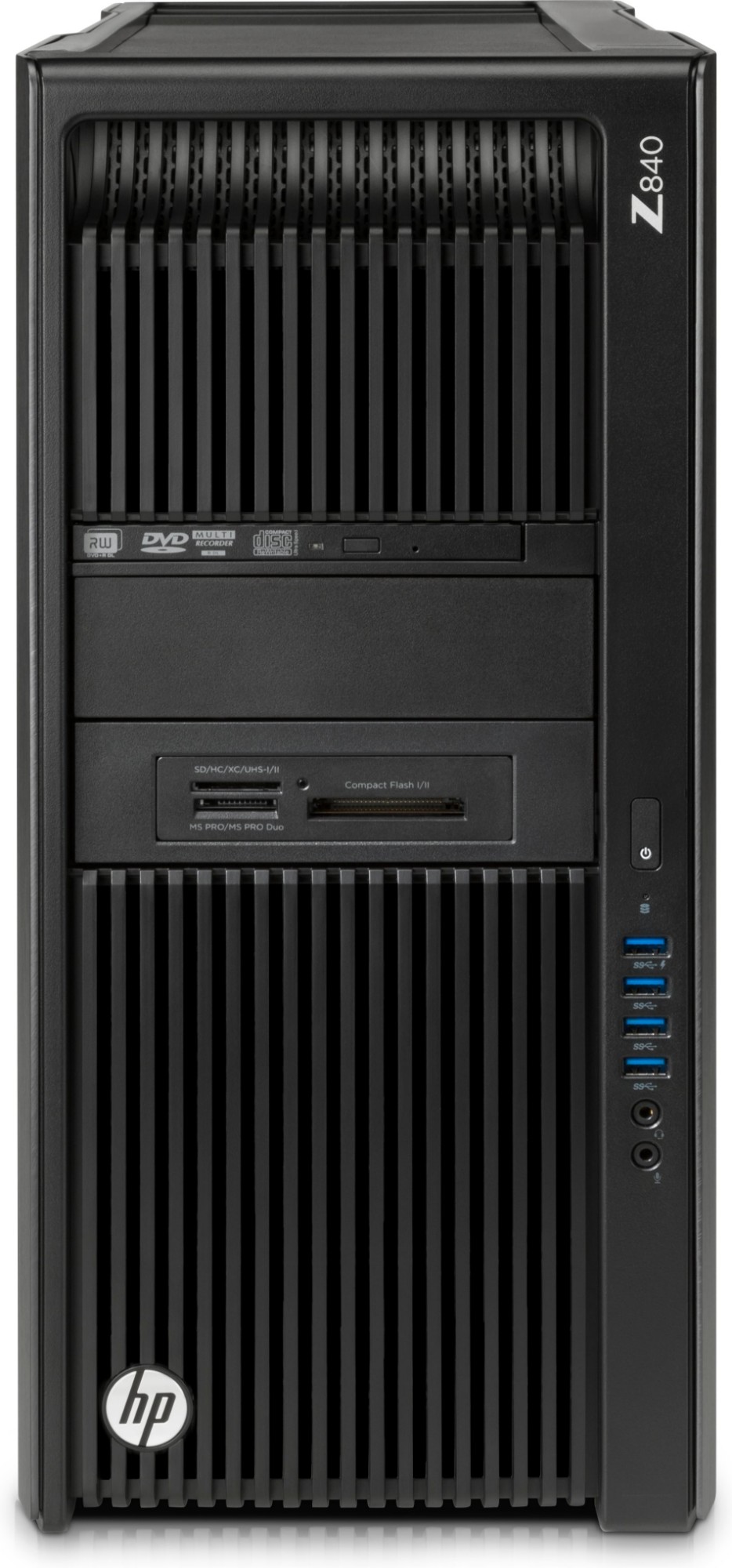

HP Z840 Intel Xeon E5 v3 E5-2620V3 16 GB DDR4-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workstation Black

HP Z840 Intel Xeon E5 v3 E5-2620V3 16 GB DDR4-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workstation Black

  • Brand: HP
  • Category:
  • SKU: G1X56EA
  • EAN: 0888793890967 0888793891216 08 ...3891216 0888793891247 0888793890752 0888793890745 0888793890950 0888793890769 0888793891407 0888793890974 0888793890738 0888793891391 0888793891223 0888793890998 0888793890721 0888793891384 0888793890981 0888793891414 0888793891230more
Intel Xeon E5-2620 v3 (2.4GHz, 15MB), 16GB (2 x 8GB) DDR4 SDRAM, 1TB 7200 rpm SATA, SuperMulti DVD±RW, Windows 7 Professional 64 / Windows 8.1 Pro 64

Trade Prices

Distributor Product SKU Stock Updated Price
Xeptor IT Distribution Z840 6C E5-2620v3/16GB2/1TB/DVDRW/W7P 64b G1X56EA Register free see stock

Related Products

Description

Push your computing boundaries with the HP Z840 Workstation that helps you keep up with your biggest projects. Built for high-end computing and visualization, it delivers outstanding performance in one of the industry’s most expandable chassis.

Features

Windows 8.1 Pro or other operating systems available

Prepare to be spectacular
- The HP Z840 Workstation, HP’s highest performing workstation gets the best of HP Z DNA with incredible processing power, professional graphics, maximized memory, and internal storage capacity that helps you create work that makes a statement.

Get going

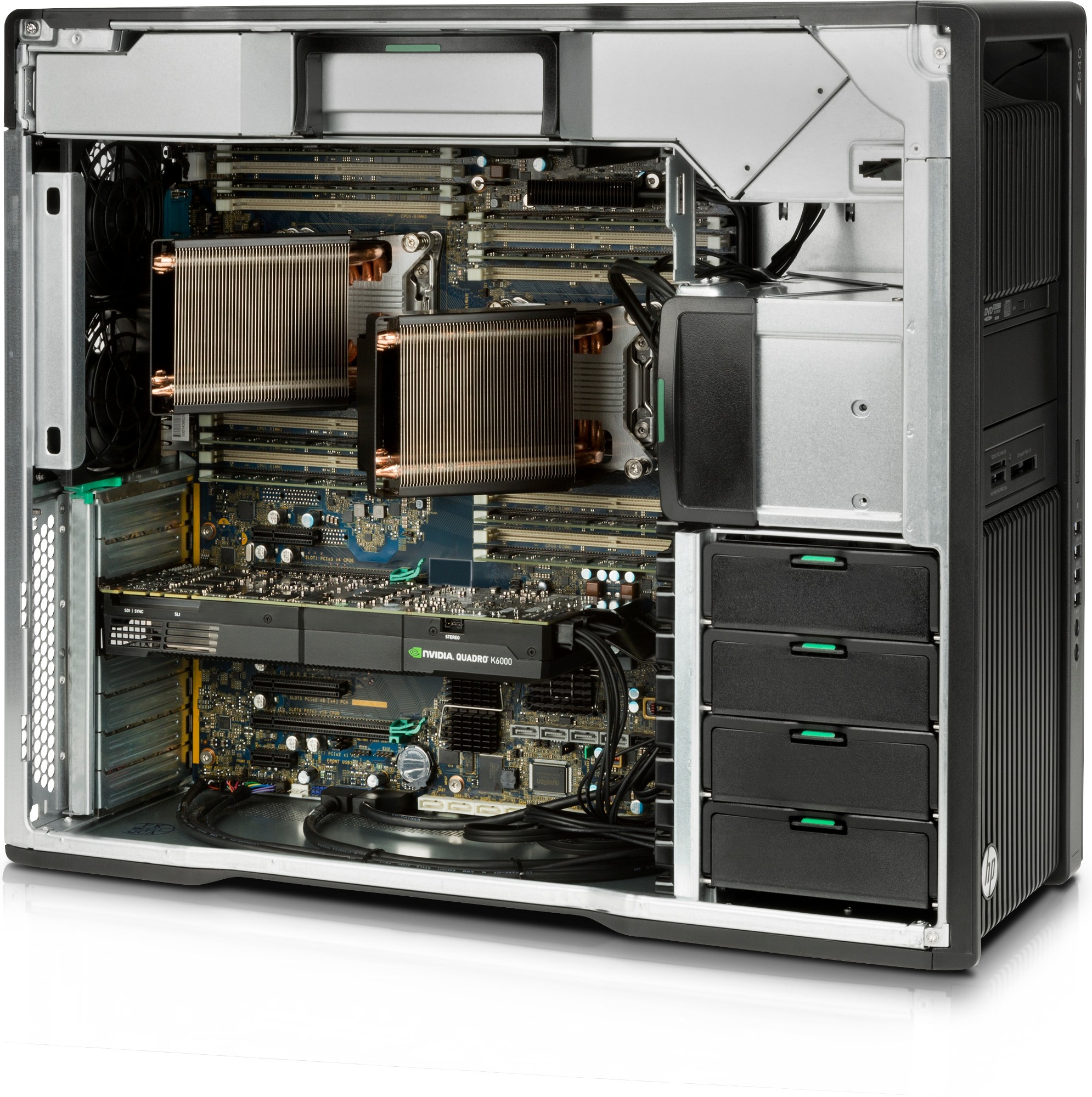

- Experience expansion like you never dreamed possible with 7 PCIe slots, up to 10 internal drive bays, and 16 memory slots supporting up to 2TB of memory3 the HP Z840 can do it all. Ready to get going?

Keep going
- Reach your goals with the HP Z840 Workstation featuring uncompromised reliability, a tool-less chassis to facilitate upgrades, a rackable option in addition to a desk side system, a lockable side panel, and handles to move the system around.

Featuring:

Powerful processing
- Achieve the performance you need with the ability to support two next generation Intel® Xeon® processors for up to 36 total processor cores in one system.

Geared up graphics
- Take productivity up a notch with the ability to do more thanks to NVIDIA professional graphics cards in 2D or 3D.

See the difference
- Get serious about graphics and reach peak productivity with access to a breadth of AMD professional graphics from entry to high-end 3D.

Powerhouse ports

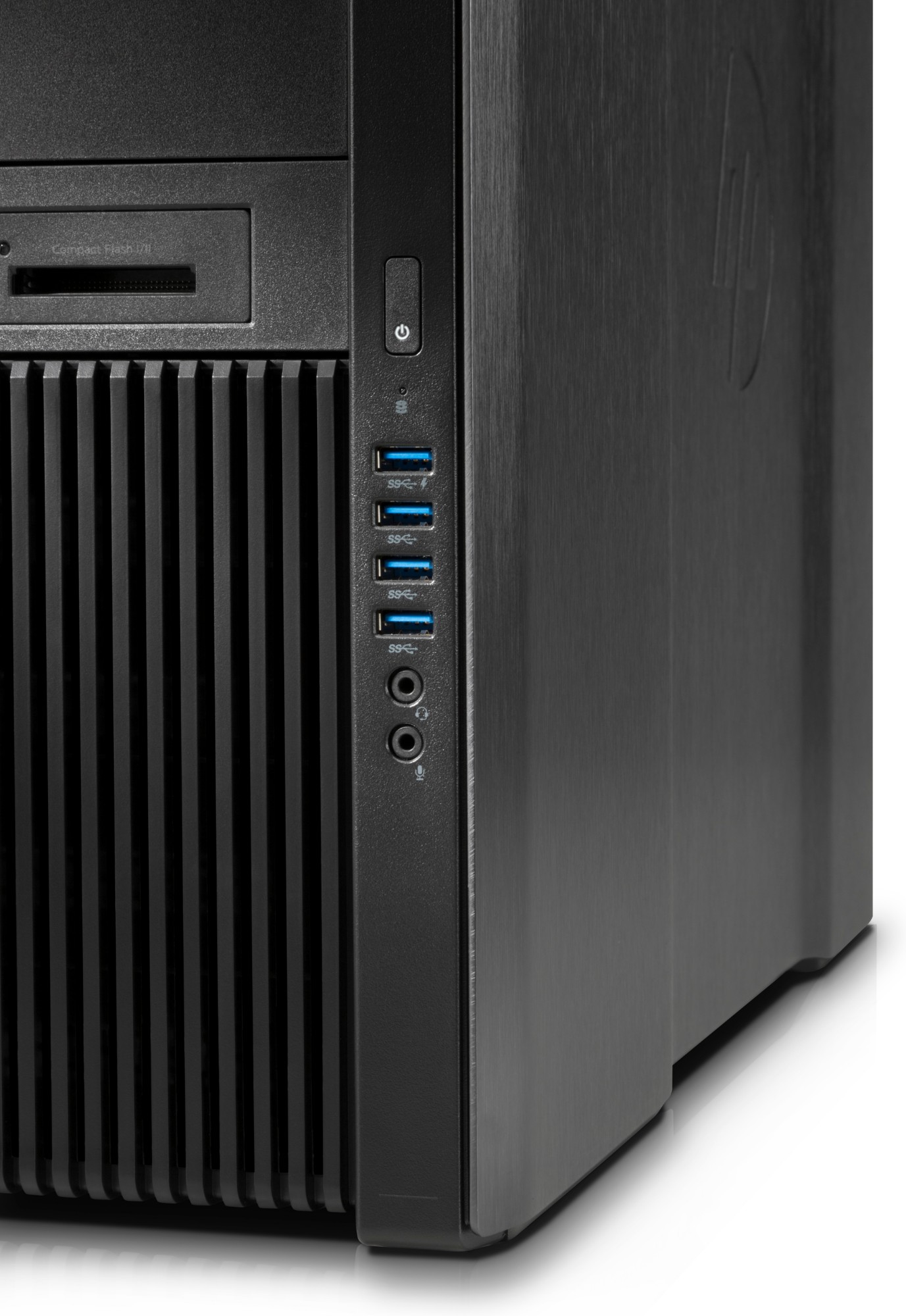

- Maximize your time and increase your capabilities with USB and SATA ports, plus lightning-fast data transfers using optional Thunderbolt™ 2 technology.

A new design to fit your needs
- A new tool-free chassis boasts low acoustics, dual integrated Gb Ethernet, aluminum panels, handles for lifting, and is 5U rack mountable—all in an elegant industrial design.

Set a new performance curve for your HP Z840
- Reduce boot up, calculation, and graphics response and revolutionize how your HP Z840 handles large files with the HP Z Turbo Drive, a remarkably fast and innovative storage solution.

See every angle
- Take multitasking to a new level with support for up to eight displays.

Your personal system engineer
- Optimize performance automatically with the with the most current settings and drivers.

Device management made easy
- Each HP Z840 Workstation works with HP Client Management Solutions.

Specifications

Processor
Processor cache15 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)85 W
Tcase72.6 °C
SteppingR2
Processor seriesIntel Xeon E5-2600 v3
Processor operating modes64-bit
Processor lithography22 nm
Processor codenameHaswell
PCI Express configurationsx4, x8, x16
Number of QPI links2
Maximum number of PCI Express lanes40
FSB ParityNo
Bus typeQPI
Maximum internal memory supported by processor768 GB
Conflict-Free processorNo
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866 MHz
Memory bandwidth supported by processor (max)59 GB/s
ECC supported by processorYes
Processor frequency2.4 GHz
Processor modelE5-2620V3
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency3.2 GHz
System bus rate8 GT/s
Processor socketLGA 2011-v3
Processor threads12
Processor cores6
PCI Express slots version3.0
Processor familyIntel Xeon E5 v3
Memory
Maximum internal memory256 GB
Internal memory16 GB
Memory slots8x DIMM
Memory layout (slots x size)2 x 8 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2133 MHz
ECCYes
Memory channelsQuad-channel
Storage
Storage mediaHDD
Number of HDDs installed1
Optical drive typeDVD Super Multi
HDD capacity1 TB
HDD speed7200 RPM
HDD interfaceSATA
Card reader integratedNo
Total storage capacity1 TB
Total HDDs capacity1 TB
Graphics
Discrete graphics card modelNot available
On-board graphics card modelNot available
On-board graphics cardNo
Optical drive
Optical drive typeDVD Super Multi
Optical drives quantity1
BD interface typeSATA
Network
Ethernet LANYes
Wi-FiNo
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 2.0 ports quantity2
Serial ports quantity1
Microphone inYes
Line-outYes
Line-inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
DVI portNo
Expansion slots
PCI Express x1 (Gen 2.x) slots1
PCI Express x4 (Gen 3.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
Design
Product colourBlack
Chassis typeMini Tower
Number of 5.25" bays2
Number of 3.5" bays4
Country of originChina
Performance
Product typeWorkstation
Audio systemHD
Motherboard chipsetIntel® C612
Software
Operating system architecture64-bit
Recovery operating systemWindows 8.1 Pro
Operating system installedWindows 7 Professional
Processor special features
Thermal Monitoring TechnologiesYes
Supported instruction setsAVX
Scalability2S
Processor package size52.5 x 45 mm
Processor codeSR207
Physical Address Extension (PAE)46 bit
Physical Address Extension (PAE)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Smart CacheYes
Intel® Secure KeyYes
Intel® OS GuardYes
Intel® Insider™No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel TSX-NI version0.00
Intel TSX-NINo
Intel Trusted Execution TechnologyYes
Intel Secure Key Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Identity Protection Technology version0.00
Intel Flex Memory AccessNo
Intel FDI TechnologyNo
Intel Fast Memory AccessNo
Intel Enhanced Halt StateYes
Intel Dual Display Capable TechnologyNo
Intel Demand Based SwitchingYes
Intel Clear Video TechnologyNo
Idle StatesYes
Execute Disable BitYes
CPU configuration (max)2
Conflict-Free processorNo
Enhanced Intel SpeedStep TechnologyYes
Embedded options availableYes
Intel® Wireless Display (Intel® WiDi)No
Intel 64Yes
Intel® Turbo Boost Technology2.0
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Quick Sync Video TechnologyNo
Intel® My WiFi Technology (Intel® MWT)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® Anti-Theft Technology (Intel® AT)No
Processor ARK ID83352
Power
Power supply1125 W
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width203 mm
Depth525 mm
Height444 mm
Weight21.1 kg
Packaging content
Display includedNo
Keyboard includedYes
Features
Country of originChina
Technical details
Sustainability certificatesENERGY STAR
Other features
Optical drives quantity1
Processor manufacturerIntel
On-board graphics cardNo
BD interface typeSATA
Country of originChina
