Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Designjet Studio Steel 24-In |
5HB12C | |||
| SWS (Part of Also) |

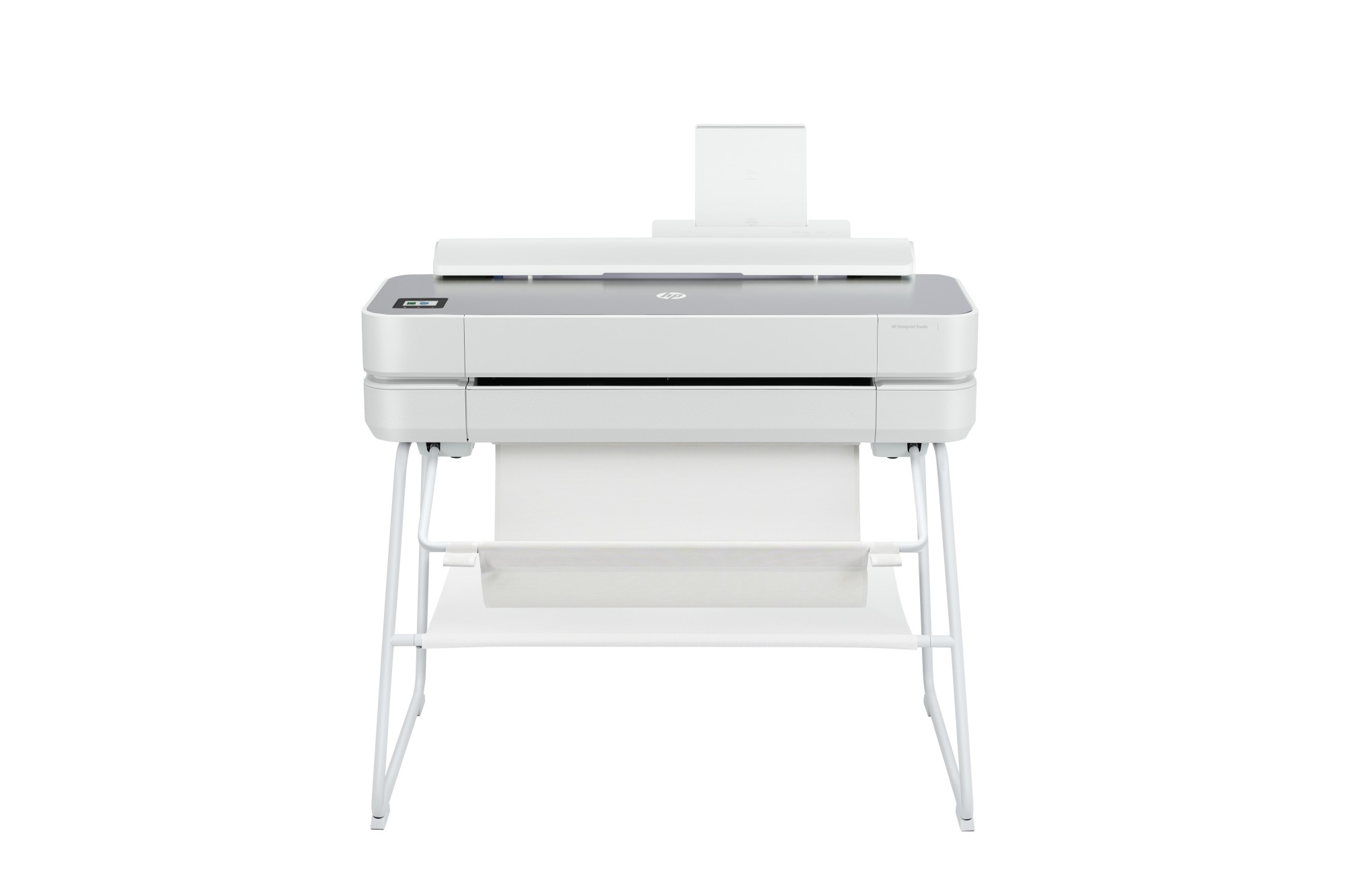

DesignJet Studio Steel 24" (A1+, 26s A1, USB 2.0, Ethernet, Wi-Fi) |
795449 |
Related Products
-
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads -
Category: Print Heads
Reasons To Buy
Fits the way you live
Design that performs, technology that stands out.
Easily set up your plotter using your smartphone.
Extreme simplicity
Print multi-size A3 and A1 projects automatically, without manually switching the media source.

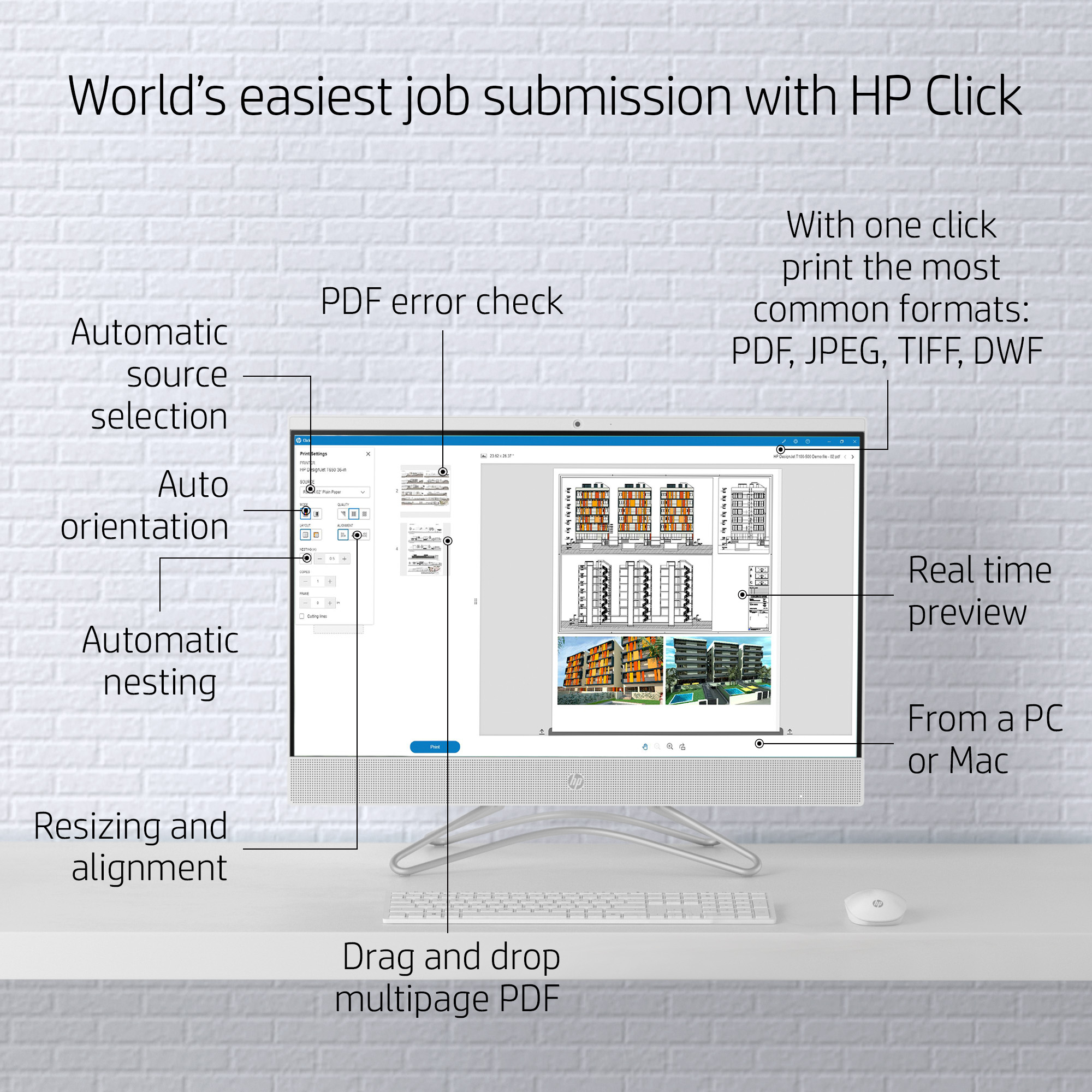

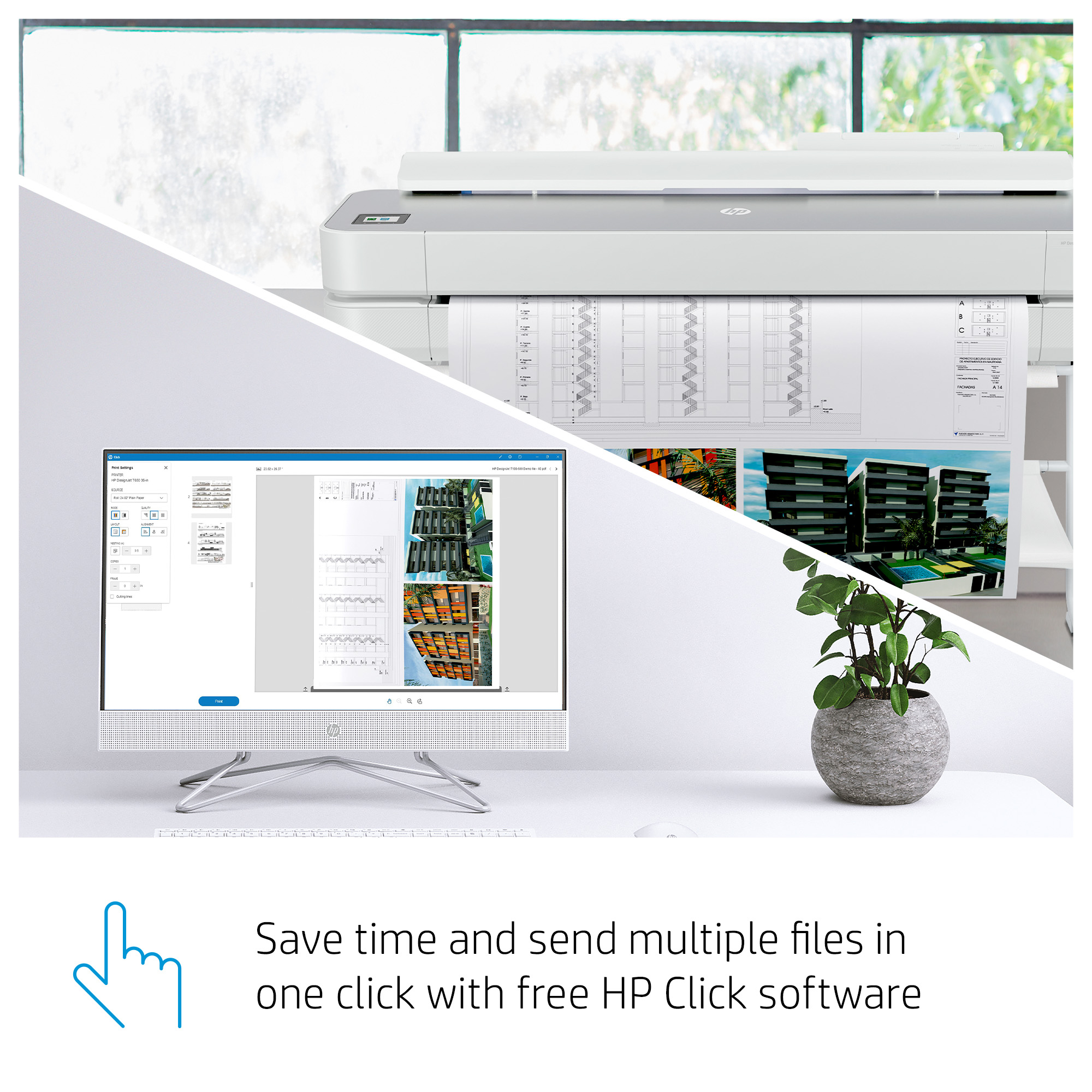

Save time with the world's easiest job submission[2]—send multiple files in one click with HP Click.[3]
Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 26 seconds per A1 plot.
Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[2]

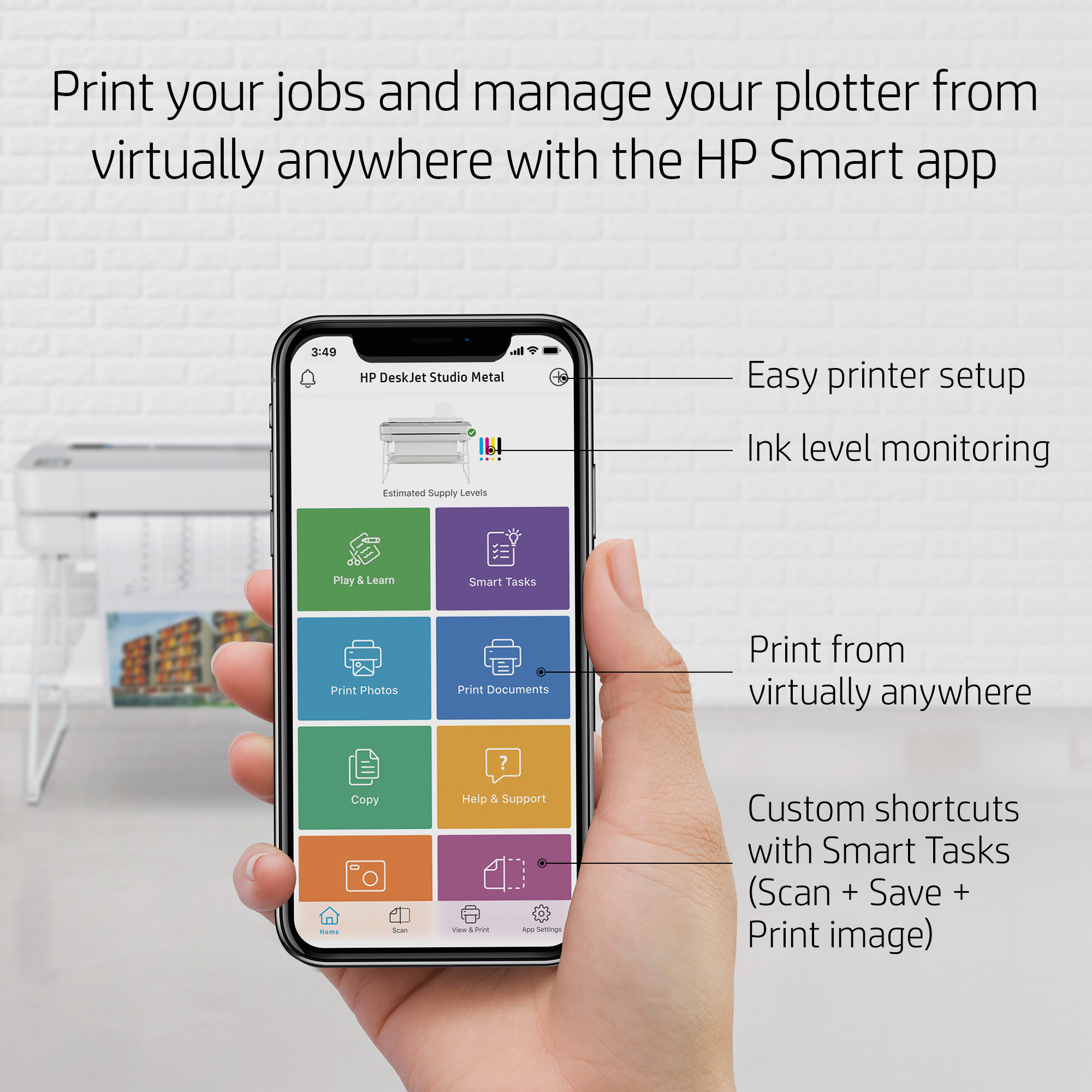

Print your jobs and manage your plotter from virtually anywhere, anytime with the HP app.
Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[4]
Description
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
Specifications
| Print technology | |
|---|---|
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Print technology | Thermal inkjet |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, JPEG, HP-RTL, CALS G4, URF |
| HP Dynamic security | Yes |
| Printing | |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Print technology | Thermal inkjet |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, JPEG, HP-RTL, CALS G4, URF |
| Copying | |
| Copying | No |
| Scanning | |
| Scanning | No |
| Print quality | |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Paper handling | |
| Maximum roll width | 61 cm |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 10 cm |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Custom media sizes | Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm |
| Maximum print size | 610 x 1897 mm |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| Media types | |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| Media formats | |
| Maximum roll width | 61 cm |
| Maximum roll diameter | 10 cm |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| USB 2.0 ports quantity | 1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Performance | |
| Product colour | White |
| Internal memory | 1024 MB |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES) |
| Built-in display | No |
| Country of origin | China |
| HP segment | Business |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Brand-specific features | |
| HP Dynamic security | Yes |
| HP segment | Business |
| Design | |
| Product colour | White |
| Built-in display | No |
| Power | |
| Power consumption (typical) | 35 W |
| Power consumption (standby) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 2.1 W |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating altitude | 0 - 3000 m |
| Sustainability | |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; First net carbon neutral HP DesignJet plotter; ENERGY STAR® certified |
| Sustainability compliance | Yes |
| Sustainability certificates | Forest Stewardship Council (FSC) |
| Weight & dimensions | |
| Package weight | 43 kg |
| Width | 1013 mm |
| Package width | 1199 mm |
| Package depth | 590 mm |
| Depth | 555 mm |
| Package height | 524 mm |
| Height | 932 mm |
| Weight | 33.6 kg |
| Packaging data | |
| Package weight | 43 kg |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
| Package width | 1199 mm |
| Package depth | 590 mm |
| Package height | 524 mm |
| Software | |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
| Certificates | |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES) |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES) |
| Packaging content | |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
| Features | |
| Country of origin | China |
| Other features | |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES) |
| UNSPSC-code | 23153405 |
| Technical details | |

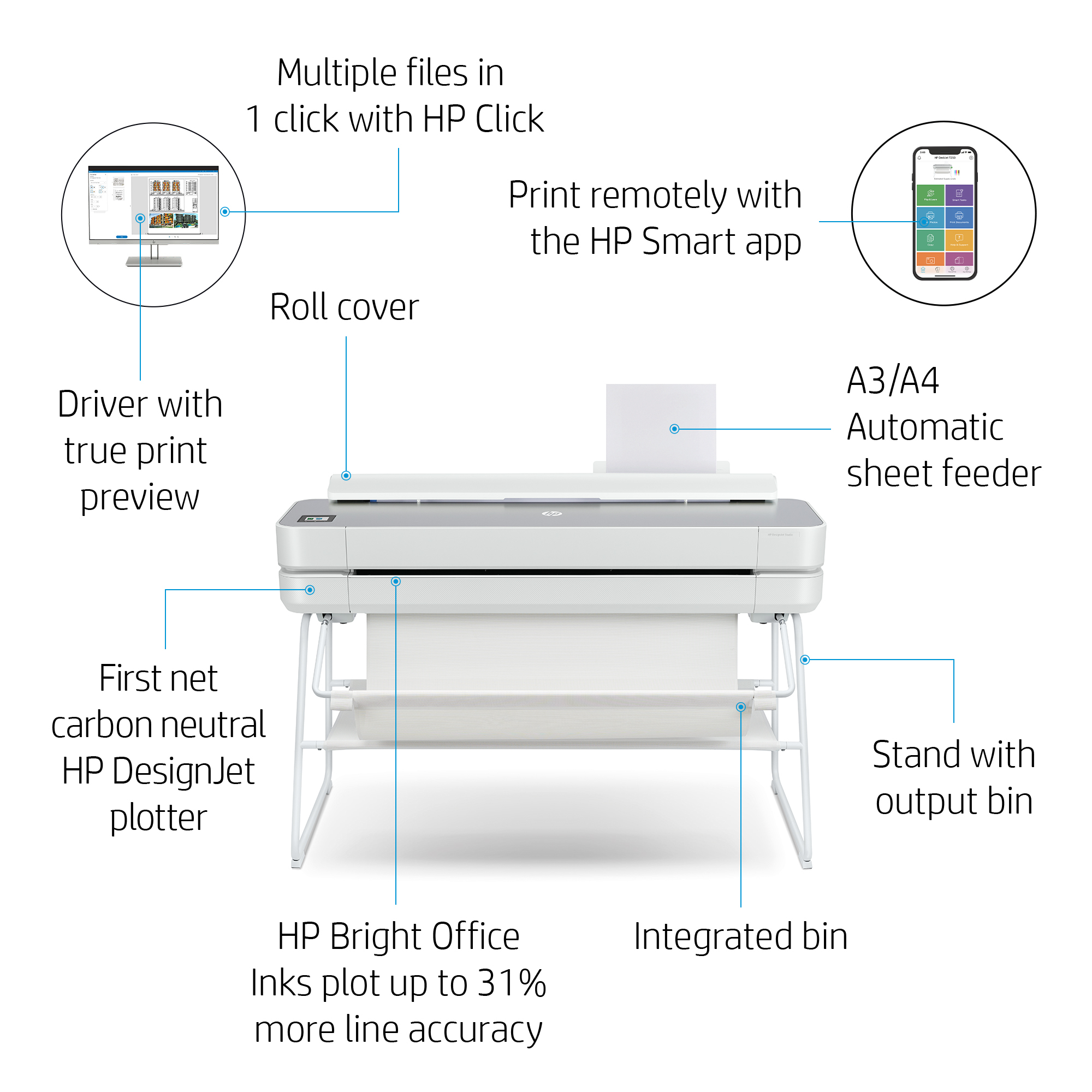

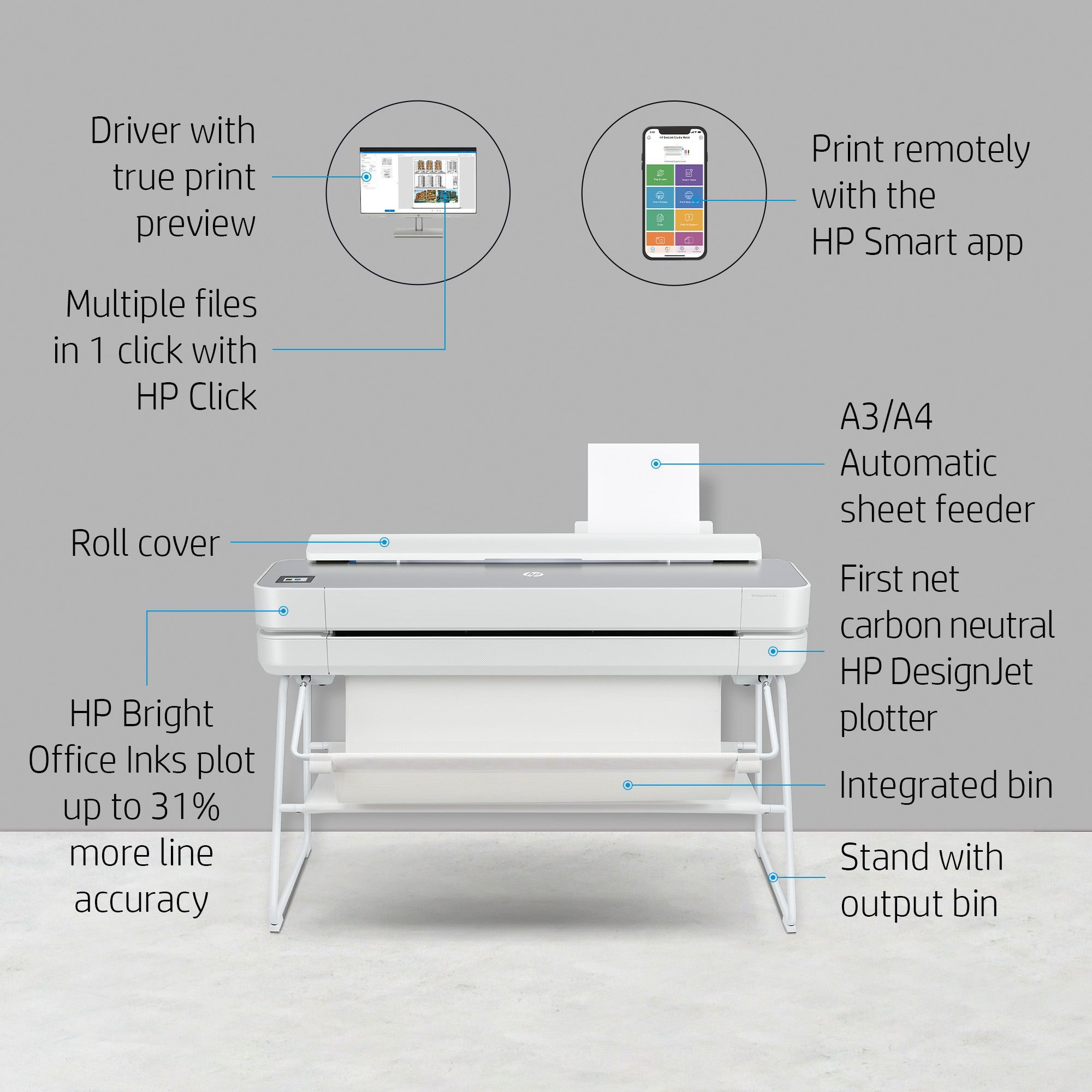

| Box contents | HP DesignJet Studio Steel 24-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; First net carbon neutral HP DesignJet plotter; ENERGY STAR® certified |
| Sustainability compliance | Yes |
| Sustainability certificates | Forest Stewardship Council (FSC) |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/gb-en/product/setup-user-guides/hp-designjet-studio-printer-series/model/34955999?sku=5HB12C ; https://h10032.www1.hp.com/ctg/Manual/c06882250.pdf |
