EXSYS Board with 4 x PCI-Slot expansion + ATX-Bracket interface cards/adapter

EX-1035 - Board with 4 x PCI-Slot expansion, incl. ATX-Bracket

Trade Prices

Distributor Product SKU Stock Updated Price
EET

Board With 4 X Pci-Slot

 EX-1035 Register free see stock

Description

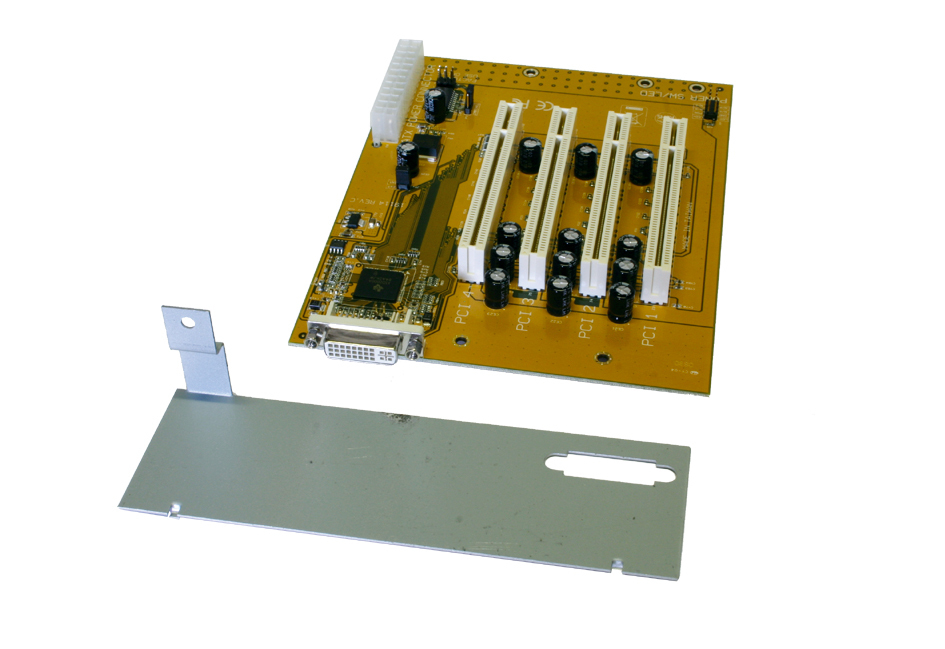

The EX-1035 Quad PCI-Slot Expansion-Board is custom build to expand 4 extra PCI slots via PCI-Express card (EX-1095) or ExpressCard adapter (EX-1096) over the PC Motherboard or Notebook ExpressCard slot. The EX-1035 can be installed in all ATX PC cases. It’s possible to control all PCI Rev 2.1s & higher add-on cards through the PCI-Express-adapter or ExpressCard-adapter. Attention! The EX-1095 (PCI-Express-card) or EX-1096 (ExpressCard-Adapter) must be ordered separately.
- 4 x PCI 32-bit 33MHZ Slots via PCI-Express-Slot or ExpressCard Slot
- Supports 5V and 3.3V Add-in Cards
- Fully Compliant with PCI Bus Rev. 2.3, Specifications
- PCI Express Advanced Error Reporting
- Capability Including ECRC Support
- Extended Virtual Channel (VC) Support
- Active State Link Power Management Support,
- Wake Event and Beacon Support
- Needs the optional available EX-1095 (PCI-Express-card) or
EX-1096 (ExpressCard-adapter)

Specifications

Performance
ChipsetTexas Instruments XIO2000A
Product colourBrown
Ports & interfaces
Host interfacePCIe
Design
Product colourBrown
CertificationCE, FC, ROHS
Features
ChipsetTexas Instruments XIO2000A
Operational conditions
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width170 mm
Depth135 mm
Weight500 g
Other features
Data transfer rate250 Mbit/s
Ports quantity4
Connectivity technologyWireless
Power requirements3.3/5V
Operating temperature (T-T)32 - 131 °F
Mac compatibilityYes
Compatible operating systemsWin Linux Mac OS Unix
I/O ports4x PCI 32-bit 1x DVI
