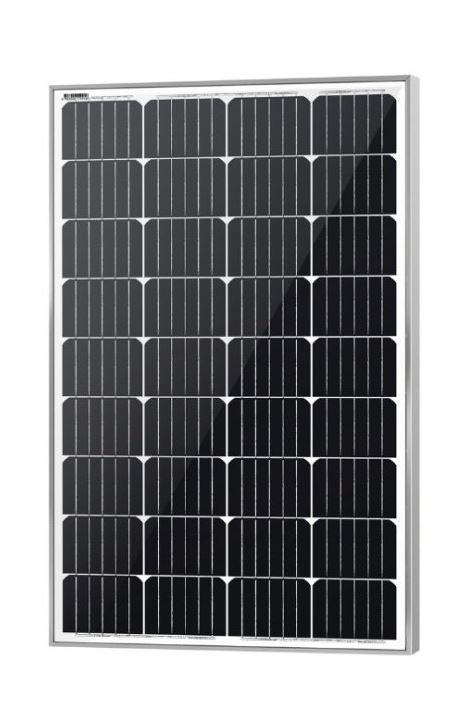

ELERIX EXS-200MHC-W-P36 solar panel Monocrystalline silicon
- Brand: Elerix
- Category:
- SKU: EXS-200MHC-W-P36
- EAN:
Solar panel Mono Half Cut 200Wp 72 cells, (ESM-200) White, pallet 36pcs
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Solar panel Mono Half Cut |
EXS-200MHC-W-P36 |
Description
ELERIX SOLAR PANELS
A full range of quality photovoltaic panels for powering of industrial applications, telecom equipment, off-grid locations and the energy supply in remote areas. Complete solar solutions to give you the power to go on.
Solar panels use different technologies. The most advanced is POLY that use both sides of panel. PERC is an abbreviation for Passivated Emitter and Rear Cell. The main advantage of the PERC cell structure is that it enables manufacturers to achieve higher efficiencies than with standard solar cells which are reaching their physical limits.
A full range of quality photovoltaic panels for powering of industrial applications, telecom equipment, off-grid locations and the energy supply in remote areas. Complete solar solutions to give you the power to go on.
Solar panels use different technologies. The most advanced is POLY that use both sides of panel. PERC is an abbreviation for Passivated Emitter and Rear Cell. The main advantage of the PERC cell structure is that it enables manufacturers to achieve higher efficiencies than with standard solar cells which are reaching their physical limits.
Specifications
| Power | |
|---|---|
| Voltage at open-circuit (Voc) | 22.32 V |
| Voltage at maximum power (Vmp) | 18.2 V |
| Short-circuit current (Isc) | 11.25 A |
| Maximum system voltage | 1000 V |
| Fuse rating | 15 |
| Current at maximum power (Imp) | 10.99 A |
| Maximum Power (STC) | 200 W |
| Features | |
| Solar cell type | Monocrystalline silicon |
| Connector type | MC4 |
| Product colour | Black, Silver |
| Frame | Yes |
| Cell efficiency (STC) | 19.1% |
| Cable length | 0.3 m |
| Technical details | |
| Operating temperature (T-T) | -40 - 85 °C |
| Nominal operating cell temperature (noC) | 45 °C |
| Temperature coefficient of the short-circuit current (Isc) | 0.041 %/°C |
| Temperature coefficient of the open-circuit voltage (Voc) | -0.282 %/°C |
| Feed temperature coefficient | -0.387 %/°C |
| Weight & dimensions | |
| Width | 770 mm |
| Depth | 30 mm |
| Height | 1360 mm |
| Weight | 10.5 kg |
