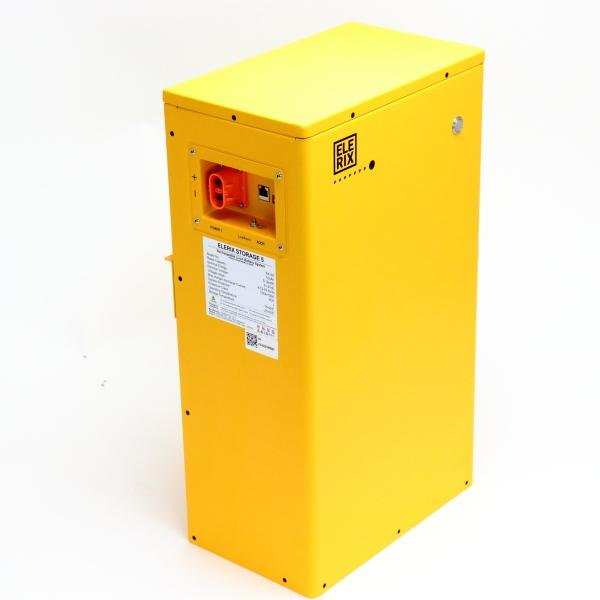

ELERIX EX-S5 industrial rechargeable battery Lithium Iron Phosphate (LiFePO4) 100000 mAh 51.2 V
- Brand: Elerix
- Category:
- SKU: EX-S5
- EAN:
Energy Storage 5.2kWh with standing-alone or wall mounting
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Energy Storage 5.2kWh |
EX-S5 |
Description
The individual 5 kW module can be scaled with system power and communication connections up to 12 units (master + 11 slaves). This increases the storage capacity up to 60 kWh, but the resulting output power and voltage remain the same - 5 kW /48V at the master output. Parallel interconnection of masters is not supported by the software.
Specifications
| Features | |
|---|---|
| Battery capacity | 100000 mAh |
| Battery voltage | 51.2 V |
| Battery capacity | 104 Wh |
| Product colour | Yellow |
| Battery recharge cycles (max) | 6000 |
| Battery technology | Lithium Iron Phosphate (LiFePO4) |
| Short circuit protection | Yes |
| Optimal discharge current | 80 A |
| Optimal charge current | 50 A |
| Operating voltage (min) | 43.2 V |
| Operating voltage (max) | 57.6 V |
| Maximum discharge current | 100 A |
| Maximum charge current | 100 A |
| Communication ports | Can, RS-485 |
| Battery | |
| Battery capacity | 100000 mAh |
| Battery voltage | 51.2 V |
| Number of batteries included | 1 pc(s) |
| Battery capacity | 104 Wh |
| Product colour | Yellow |
| Battery recharge cycles (max) | 6000 |
| Battery technology | Lithium Iron Phosphate (LiFePO4) |
| Rechargeable battery | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 55 °C |
| Weight & dimensions | |
| Weight | 49 kg |
| Width | 342 mm |
| Depth | 207 mm |
| Height | 600 mm |
| Packaging data | |
| Number of batteries included | 1 pc(s) |
| Packaging content | |
| Number of batteries included | 1 pc(s) |
