Drobo B800I NAS Rack (3U) Black
- Brand: Drobo
- Category:
- SKU: DR-B800I-2A31
- EAN: 0094922059666 0949220596668
2 x Gigabit Ethernet, 8 x 3.5" SATA, HFS+/NTFS/VMFS, Mac OS X/Windows/VMware, 100 - 240 VAC, 50-60 Hz, 7.4 kg
Offer details
Related Products
Description
Award Winning Data Storage
Winner of the Editor’s Choice Award from Storage Review, the Drobo B800i delivers advanced iSCSI SAN storage capabilities reserved for expensive enterprise solutions. From data protection to server virtualization, the Drobo B800i is optimized for your small business and provides fast and efficient storage to servers running many applications. By combining an empty Drobo B800i with your choice of hard drives, new flexible storage configurations are at your fingertips!
Leave Your Limitations Behind… Go BeyondRAID®
Built on our award-winning BeyondRAID technology, the Drobo B800i protects your data without any intervention – even in the event of multiple drive failures. You can even switch from single to dual disk redundancy with a single click, ensuring enterprise-level dual parity data protection when required. Drobo’s with BeyondRAID are also self-healing and have virtual hot-spares. If a drive happens to fail, Drobo will automatically re-layout the data to return to a protected state without disruption.
Drobo takes the up front guess work out of determining the amount of capacity you require. Buy the capacity you need today, and when you need more storage, simply replace your smallest drive with a larger one and immediately use that capacity in seconds. You can even mix and match drive brands, capacities and speeds.
To further enhance your experience, every Drobo comes with Smart Volume technology. Smart Volumes® are thinly provisioned volumes that automatically utilize capacity as needed from a common pool of storage. Additionally, as data is deleted, free capacity is returned to that common pool, immediately increasing the available capacity.
BeyondRAID along with Smart Volumes deliver next-generation storage technology by bringing together enhanced data protection, reliability, expandability, and ease-of-use.
Pain Free Expansion
Expanding your storage capacity with a Drobo couldn’t be easier. There’s no long, risky process to add capacity to a Drobo – no need to go through the time consuming and complex administration of destroying your RAID sets and recreating with larger drives; and then finally restoring from your backup. When it’s time to add storage capacity to a Drobo, simply insert additional disk drives or replace the smallest disks with larger ones. The unique, carrier-less drive-bay design results in efficient and pain free scalability that won’t leave you running out of space when you need it most.

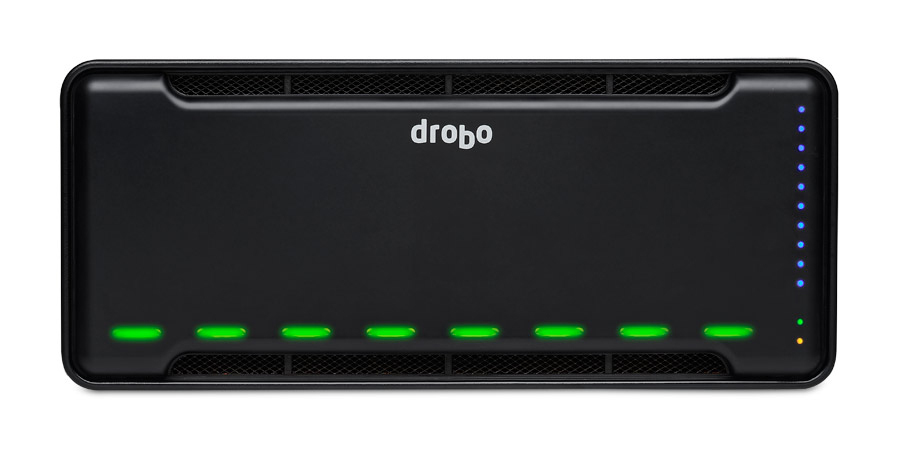

If you’re running low on space, the lights on the front of the Drobo B800i tell you exactly what to do. The innovative, user-friendly industrial design allows you to add or hot-swap larger capacity drives, without tools, on the fly, for storage expansion with zero downtime. Expand your capacity without missing a beat while safely storing, sharing and backing up all your data with ease and peace of mind. It’s that simple!
Build an iSCSI SAN with Drobo
Unfamiliar with iSCSI? iSCSI is a popular high-performance protocol for deploying storage networking technology in IT environments. The problem: it can be very complex to manage. The Drobo B800i changes that by introducing zero-click iSCSI configuration for both Windows and Mac OS X servers.
With an iSCSI SAN, centralized storage is provided to each server over a high-speed Gigabit Ethernet network where it can be allocated or expanded instantaneously. Deploying a Drobo B800i eases iSCSI adoption, simplifies administration, and allows you to consolidate storage so you have fewer devices to manage.
Optimized for Business
The Drobo B800i is ideal for building your first scalable backup server or server virtualization cluster. It is certified for VMware vSphere, Symantec Backup Exec, and Veeam Backup environments. It integrates seamlessly into your TCP/IP network infrastructure and utilizes the industry-standard iSCSI protocol to provide simple, consolidated storage for your servers.
Rack Mount Ready, Desktop Quiet
Drobo B800i can be deployed in a server room for IT use or on a desktop for workgroup sharing of storage, thanks to its compact design and quiet operation. Dual smart fans automatically manage their speeds to optimize cooling and minimize operating noise. You can even configure Drobo to spin down drives when they’re not in use to further reduce noise and save energy. (Drobo B800i Rack Mount sold separately.)
Winner of the Editor’s Choice Award from Storage Review, the Drobo B800i delivers advanced iSCSI SAN storage capabilities reserved for expensive enterprise solutions. From data protection to server virtualization, the Drobo B800i is optimized for your small business and provides fast and efficient storage to servers running many applications. By combining an empty Drobo B800i with your choice of hard drives, new flexible storage configurations are at your fingertips!
Leave Your Limitations Behind… Go BeyondRAID®
Built on our award-winning BeyondRAID technology, the Drobo B800i protects your data without any intervention – even in the event of multiple drive failures. You can even switch from single to dual disk redundancy with a single click, ensuring enterprise-level dual parity data protection when required. Drobo’s with BeyondRAID are also self-healing and have virtual hot-spares. If a drive happens to fail, Drobo will automatically re-layout the data to return to a protected state without disruption.
Drobo takes the up front guess work out of determining the amount of capacity you require. Buy the capacity you need today, and when you need more storage, simply replace your smallest drive with a larger one and immediately use that capacity in seconds. You can even mix and match drive brands, capacities and speeds.
To further enhance your experience, every Drobo comes with Smart Volume technology. Smart Volumes® are thinly provisioned volumes that automatically utilize capacity as needed from a common pool of storage. Additionally, as data is deleted, free capacity is returned to that common pool, immediately increasing the available capacity.
BeyondRAID along with Smart Volumes deliver next-generation storage technology by bringing together enhanced data protection, reliability, expandability, and ease-of-use.
Pain Free Expansion
Expanding your storage capacity with a Drobo couldn’t be easier. There’s no long, risky process to add capacity to a Drobo – no need to go through the time consuming and complex administration of destroying your RAID sets and recreating with larger drives; and then finally restoring from your backup. When it’s time to add storage capacity to a Drobo, simply insert additional disk drives or replace the smallest disks with larger ones. The unique, carrier-less drive-bay design results in efficient and pain free scalability that won’t leave you running out of space when you need it most.
If you’re running low on space, the lights on the front of the Drobo B800i tell you exactly what to do. The innovative, user-friendly industrial design allows you to add or hot-swap larger capacity drives, without tools, on the fly, for storage expansion with zero downtime. Expand your capacity without missing a beat while safely storing, sharing and backing up all your data with ease and peace of mind. It’s that simple!
Build an iSCSI SAN with Drobo
Unfamiliar with iSCSI? iSCSI is a popular high-performance protocol for deploying storage networking technology in IT environments. The problem: it can be very complex to manage. The Drobo B800i changes that by introducing zero-click iSCSI configuration for both Windows and Mac OS X servers.
With an iSCSI SAN, centralized storage is provided to each server over a high-speed Gigabit Ethernet network where it can be allocated or expanded instantaneously. Deploying a Drobo B800i eases iSCSI adoption, simplifies administration, and allows you to consolidate storage so you have fewer devices to manage.
Optimized for Business
The Drobo B800i is ideal for building your first scalable backup server or server virtualization cluster. It is certified for VMware vSphere, Symantec Backup Exec, and Veeam Backup environments. It integrates seamlessly into your TCP/IP network infrastructure and utilizes the industry-standard iSCSI protocol to provide simple, consolidated storage for your servers.
Rack Mount Ready, Desktop Quiet
Drobo B800i can be deployed in a server room for IT use or on a desktop for workgroup sharing of storage, thanks to its compact design and quiet operation. Dual smart fans automatically manage their speeds to optimize cooling and minimize operating noise. You can even configure Drobo to spin down drives when they’re not in use to further reduce noise and save energy. (Drobo B800i Rack Mount sold separately.)
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | HDD |
| Number of storage drives supported | 8 |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5" |
| RAID support | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | HFS+, NTFS, VMFS |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Carrier-less drive bays | Yes |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot type | Kensington |
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Chassis type | Rack (3U) |
| Cable lock slot | Yes |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Noise level | 30.4 dB |
| Software | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Bundled software | Drobo Dashboard |
| Power | |
| Power supply location | Built-in |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 82 W |
| Power consumption (sleep) | 13 W |
| Weight & dimensions | |
| Width | 309.1 mm |
| Depth | 358.1 mm |
| Height | 138.7 mm |
| Weight | 7.4 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, LAN (RJ-45), USB |
| Bundled software | Drobo Dashboard |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | WEEE, REACH, FCC Part 15 Class A; CE Mark; MIC Mark; VCCI Approval to V.3; BSMI CNS13438; ACA Approval to AS/NZS 3548, ICES-003 Class B; CE Mark; CISPR22:19973rd B, UL, cUL, TUV, CB |
| Other features | |
| Carrier-less drive bays | Yes |
| Certification | WEEE, REACH, FCC Part 15 Class A; CE Mark; MIC Mark; VCCI Approval to V.3; BSMI CNS13438; ACA Approval to AS/NZS 3548, ICES-003 Class B; CE Mark; CISPR22:19973rd B, UL, cUL, TUV, CB |
| Compliance certificates | RoHS |
