Cooler Master MasterAir MA621P TR4 Edition Processor 12 cm Black

Cooler Master MasterAir MA621P TR4 Edition Processor 12 cm Black

MasterAir MA621P TR4 Edition, Fan 120 mm, 12 VDC, 31 dBA, 53.4 CFM, 1.65 mmH2O

Trade Prices

Distributor Product SKU Stock Updated Price
Exertis IT

MA621P

10370760 Register free see stock

Description

SUPERCHARGED COOLING PERFORMANCE MASTERAIR MA621P
Designed for AMD Ryzen™ Threadripper™

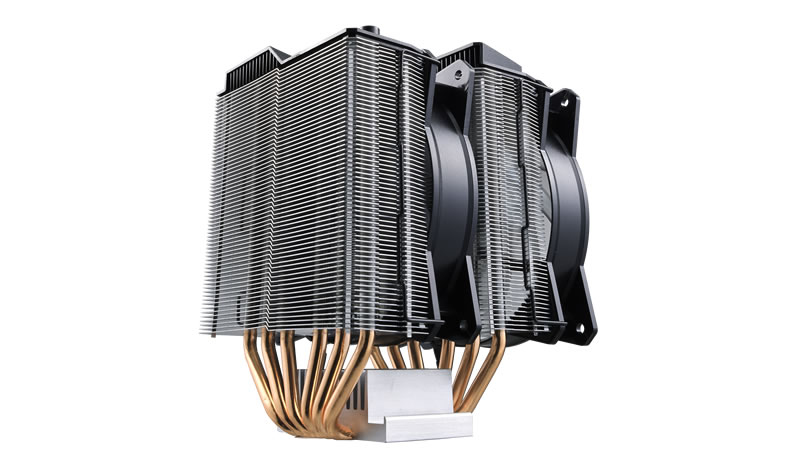

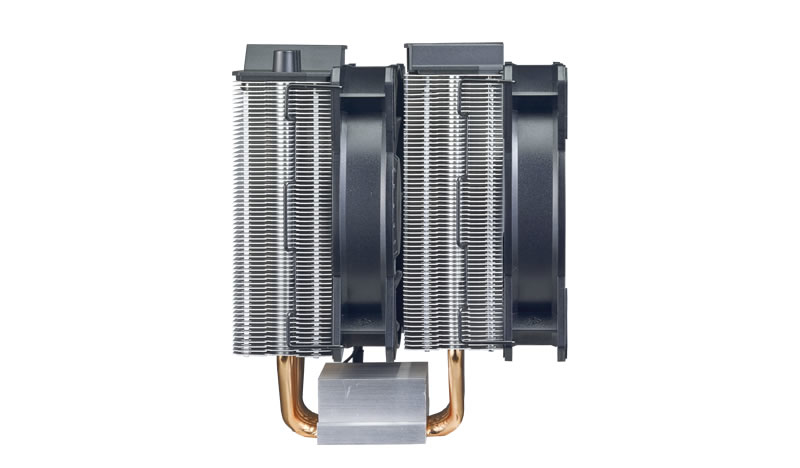

DUAL TOWER HEATSINKS & FANS
The dual twin tower heatsink has a combination of 2 sets of heatsink towers with 2 sets of MasterFan MF120R RGB. The uniquely designed heatsink allows bigger and more spread out surface area, while the MF120R RGB fans give added air pressure from the outside and inside the heatsink to generate massive cooling performance.

MORE IS BETTER
Add up to 3 fans to accelerate the air pressure and removal of heat with the 'Push and Pull'. One fan is placed at the front to pull cool air in, the second fanis placed inbetween the heatsinks, with the option to add third to maximize the heat pass-through.

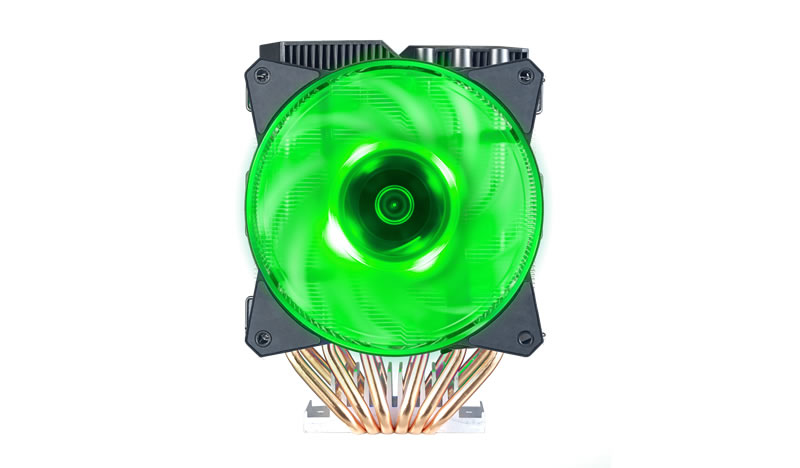

2X MASTERFAN MF120R RGB
The MasterFan MF120R RGB operates quietly even at high speeds. It is designed with a combination of jet engine and helicopter blades for the static air pressure you need without sacrificing airflow.

EXCLUSIVE FOR AMD TR4
Exact fitting base for the TR4-SP3 ensures the AMD Threadripper CPU has optimal surface contact and thus optimal heat transfer. The base also includes the Continuous Direct Contact Technology 2.0 (CDC 2.0), to have direct integration with heatpipes.

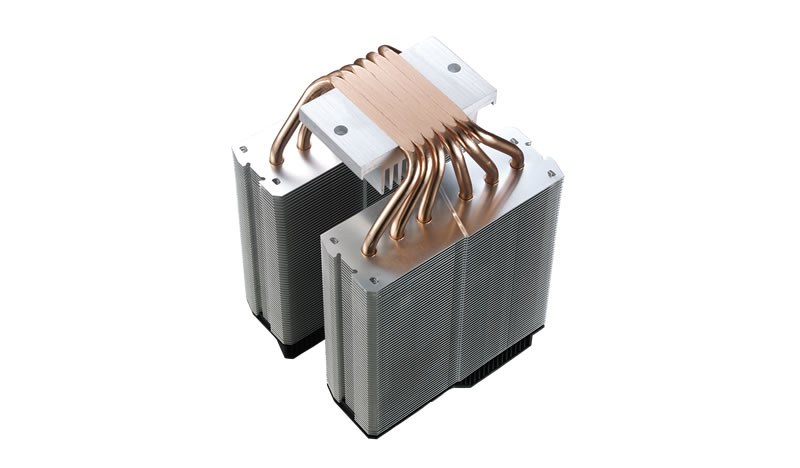

MORE HEATPIPES
MasterAir MA621P has 6 x heatpipes for fast transfer of heat, to make sure the CPU is running at optimal performance. Combined with the twin tower and dual fan design, you can even maximum TDP for the extreme overclockers.

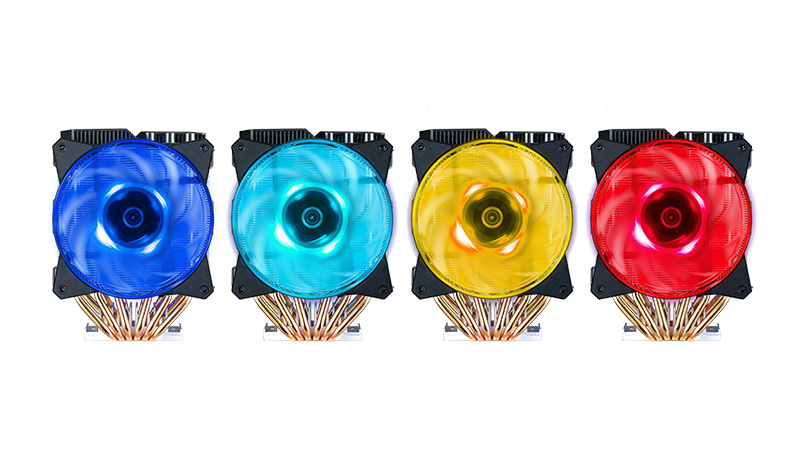

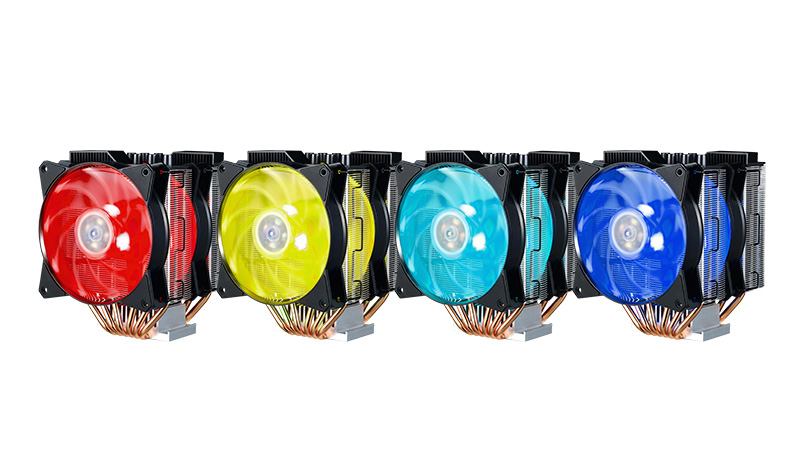

RGB LED ILLUMINATION (CONTROLLER INCLUDED)
A wired RGB LED controller is included to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.

QUICK AND EASY INSTALLATION
Tool-free mounting kit makes installation a breeze. Exclusive for AMD TR4.

Specifications

Performance
Suitable locationProcessor
Pulse-width modulation (PWM) supportYes
Fan connector4-pin
TypeCooler
Fan diameter12 cm
Supported processor socketsSocket TR4
Maximum airflow53.4 cfm
Maximum air pressure1.65 mmH2O
Number of heat pipes6
Number of fans2 fan(s)
Heat pipes diameter6 mm
Fan thickness2.5 cm
Rotational speed (min)600 RPM
Rotational speed (max)1800 RPM
Noise level with LNA (max)31 dB
Fins materialAluminium
Mean time to failure (MTTF)160000 h
Number of fan blades9
Design
Fan connector4-pin
Number of heat pipes6
Number of fans2 fan(s)
Illumination colourBlue, Green, Red
Product colourBlack
Illumination LEDYes
Fins materialAluminium
Lighting modesBreathing, Color cycle, Customize, Mirage, Multilayer, Stars, Static
Number of fan blades9
Ports & interfaces
Fan connector4-pin
Power
Rated current0.3 A
Power consumption (typical)3.6 W
Rated voltage12 V
Safety current0.37 Ah
Weight & dimensions
Width136.1 mm
Package weight1.48 kg
Depth121.8 mm
Height164.5 mm
Fan dimensions (W x D x H)120 x 120 x 25 mm
Heatsink weight870 g
Weight1.22 kg
Heatsink dimensions (W x D x H)110.1 x 116 x 158.4 mm
Heat pipes diameter6 mm
Fan thickness2.5 cm
Technical details
Fan connector4-pin
Illumination LEDYes
Packaging content
Remote control includedYes
Other features
Heatsink dimensions (W x D x H)110.1 x 116 x 158.4 mm
Lighting modesBreathing, Color cycle, Customize, Mirage, Multilayer, Stars, Static
Safety current0.37 Ah
Mean time to failure (MTTF)160000 h
Harmonized System (HS) code84733080
Logistics data
Master (outer) case width365 mm
Master (outer) case length497 mm
Master (outer) case height265 mm
Products per master (outer) case6 pc(s)
