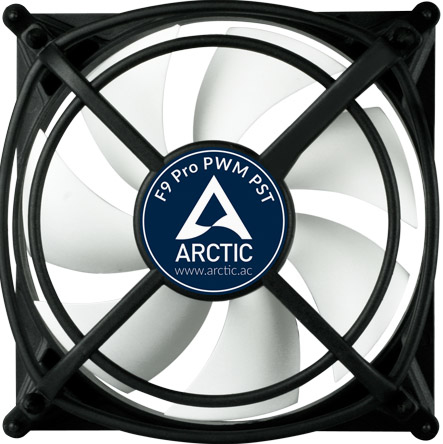

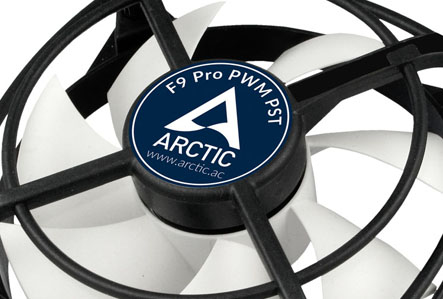

F9 Pro PWM |
ACO-AC-AF9PRPWM |
Related Products
Reasons To Buy

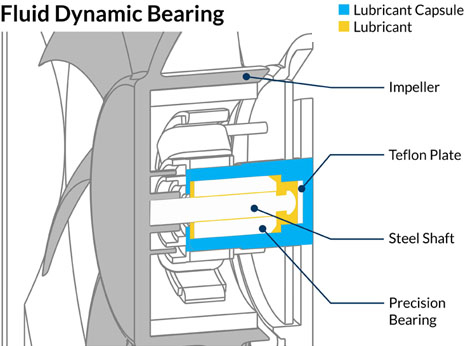

Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

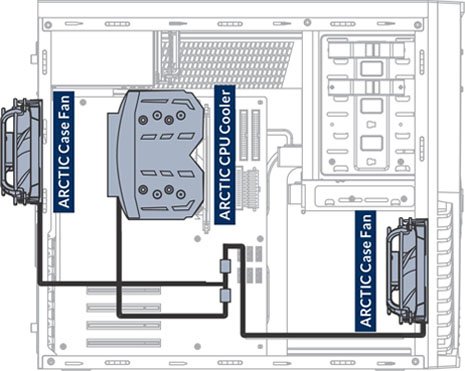

PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

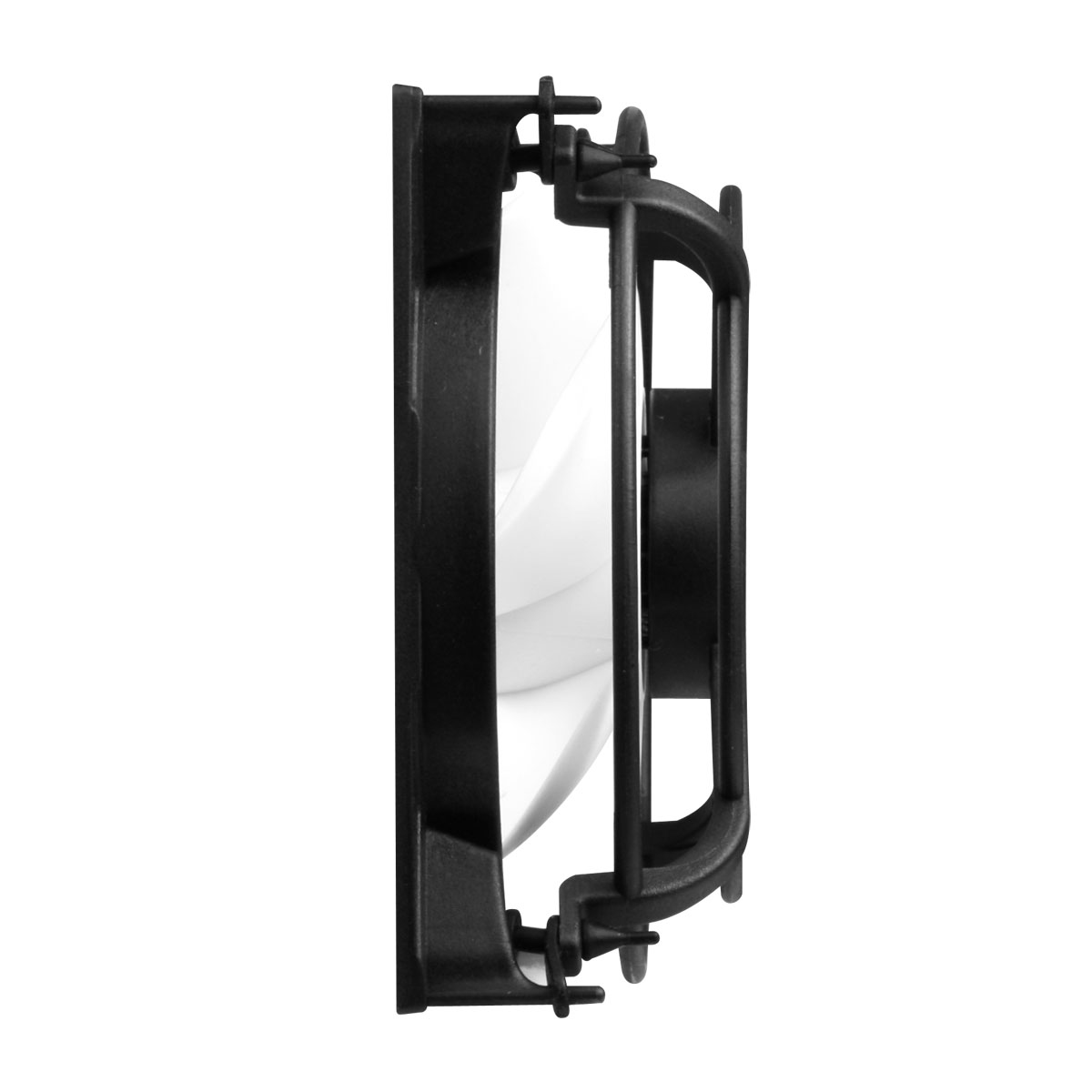

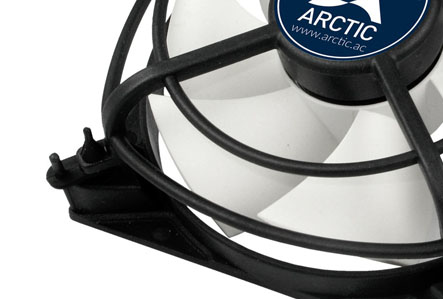

Anti-Vibration-System
A unique anti-vibration system in combination with the fan holder ensure a near-silent operation.
Description
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Pulse-width modulation (PWM) support | Yes |
| Fan connector | 3-pin/4-pin |
| Type | Fan |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Not supported |
| Maximum airflow | 39 cfm |
| Airflow | 66.3 m³/h |
| Speed detection | Yes |
| Compatible processor series | Not supported |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.4 sone |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Design | |
| Fan connector | 3-pin/4-pin |
| Material | Plastic |
| Product colour | Black, White |
| Ports & interfaces | |
| Fan connector | 3-pin/4-pin |
| Power | |
| Voltage | 12 V |
| Rated current | 0.24 A |
| Weight & dimensions | |
| Width | 92 mm |
| Depth | 92 mm |
| Height | 34 mm |
| Weight | 86 g |
| Technical details | |
| Fan connector | 3-pin/4-pin |
| Other features | |
| Speed detection | Yes |
| Harmonized System (HS) code | 84733080 |
