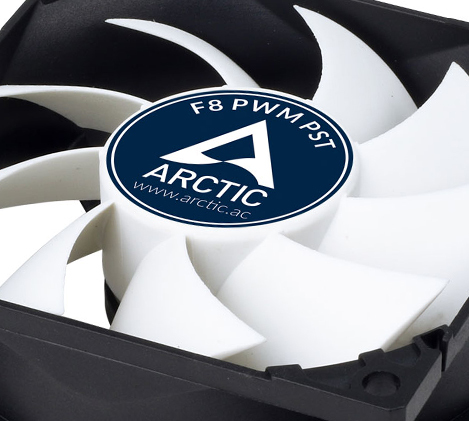

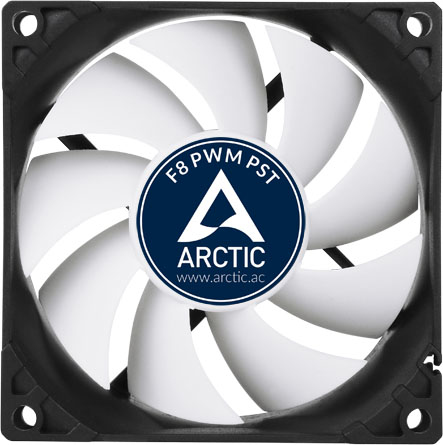

ARCTIC F8 PWM PST 4-Pin PWM fan with standard case
- Brand: ARCTIC
- Category:
- SKU: AFACO-080P0-GBA01
- EAN: 0872767002630 5052180404456 01 ...0404456 0191120056043 5054533154575 0807320230700 0803982845740 5054484154570 5054629110997 0163120889785 7445803041721 7133363342487 0711050715911 5711045086519 8727670026308more
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
F8 PWM |
ACO-AC-F8PWMPST |
Related Products
Reasons To Buy
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

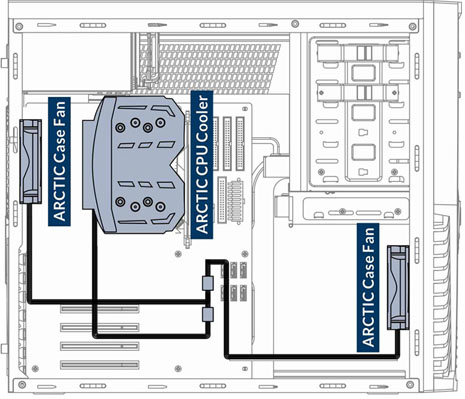

PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

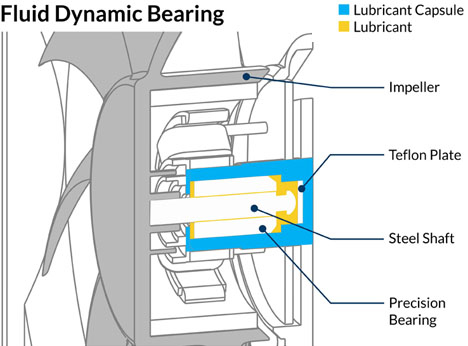

Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Description
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Pulse-width modulation (PWM) support | Yes |
| Fan connector | 4-pin |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Noise level (high speed) | 24.5 dB |
| Maximum airflow | 31 cfm |
| Airflow | 52.7 m³/h |
| Number of fans | 1 fan(s) |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Compatible processor series | Not supported |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.3 sone |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid bearing |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | Black, White |
| Cable length | 0.4 m |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Rated current | 0.16 A |
| Weight & dimensions | |
| Width | 80 mm |
| Package width | 82.5 mm |
| Package depth | 26 mm |
| Package weight | 89 g |
| Depth | 25 mm |
| Package height | 82.5 mm |
| Height | 80 mm |
| Weight | 72 g |
| Cable length | 0.4 m |
| Technical details | |
| Fan connector | 4-pin |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Compliance certificates | RoHS |
| Packaging content | |
| Screws included | Yes |
| Other features | |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
